![Tp-Link T1700G-28TQ V2 Руководство пользователя онлайн [525/772] 394694](/views2/1472751/page525/bg20d.png)
Configuration Guide 500
Configuring Voice VLAN Configuration Example

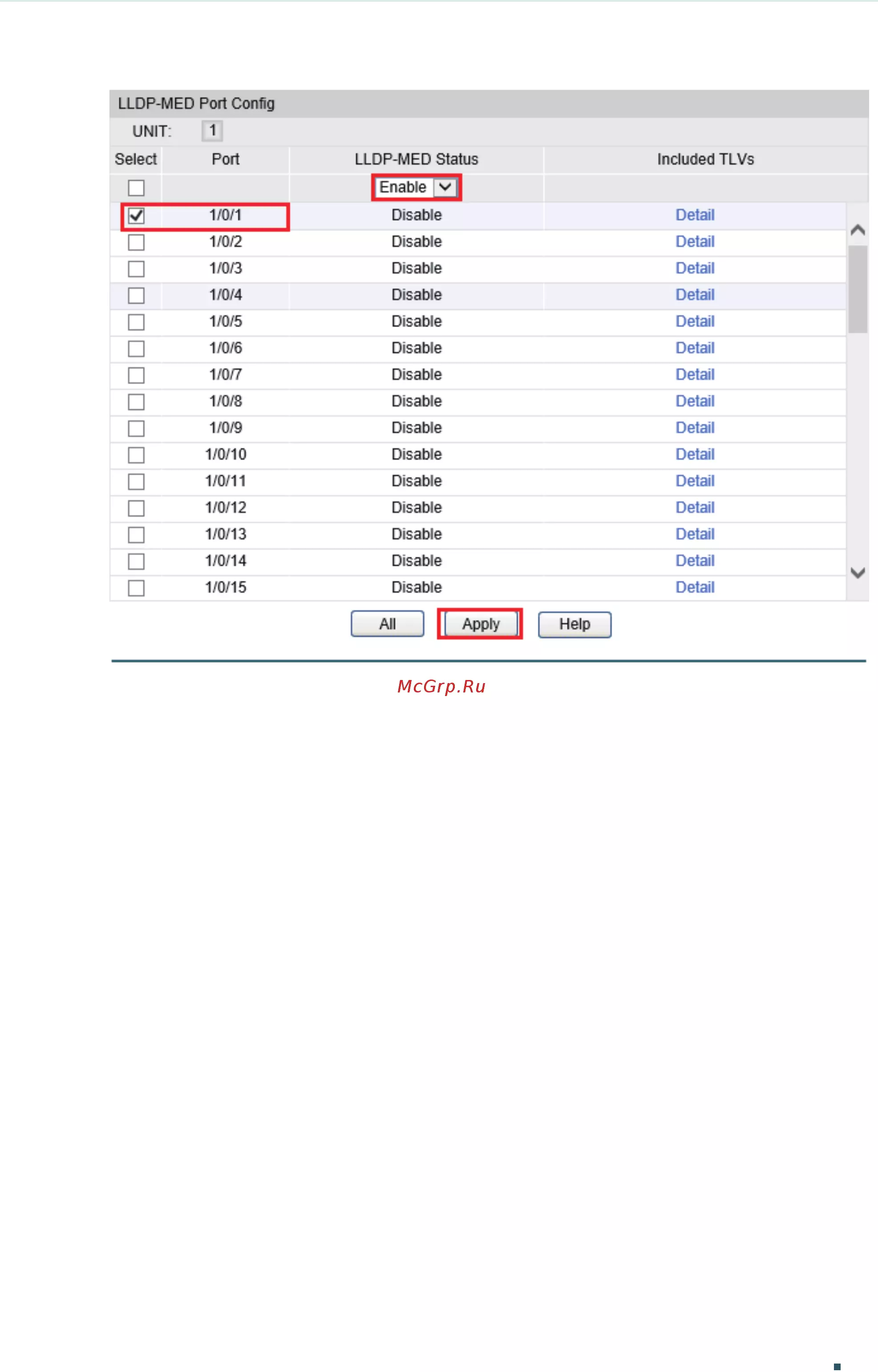

Click Detail of port1/0/1 to load the following page. Configure the TLV information which
will be carried in LLDP-MED frames and sent out by port 1/0/1. Select all TLVs, and
configure location identification parameters.

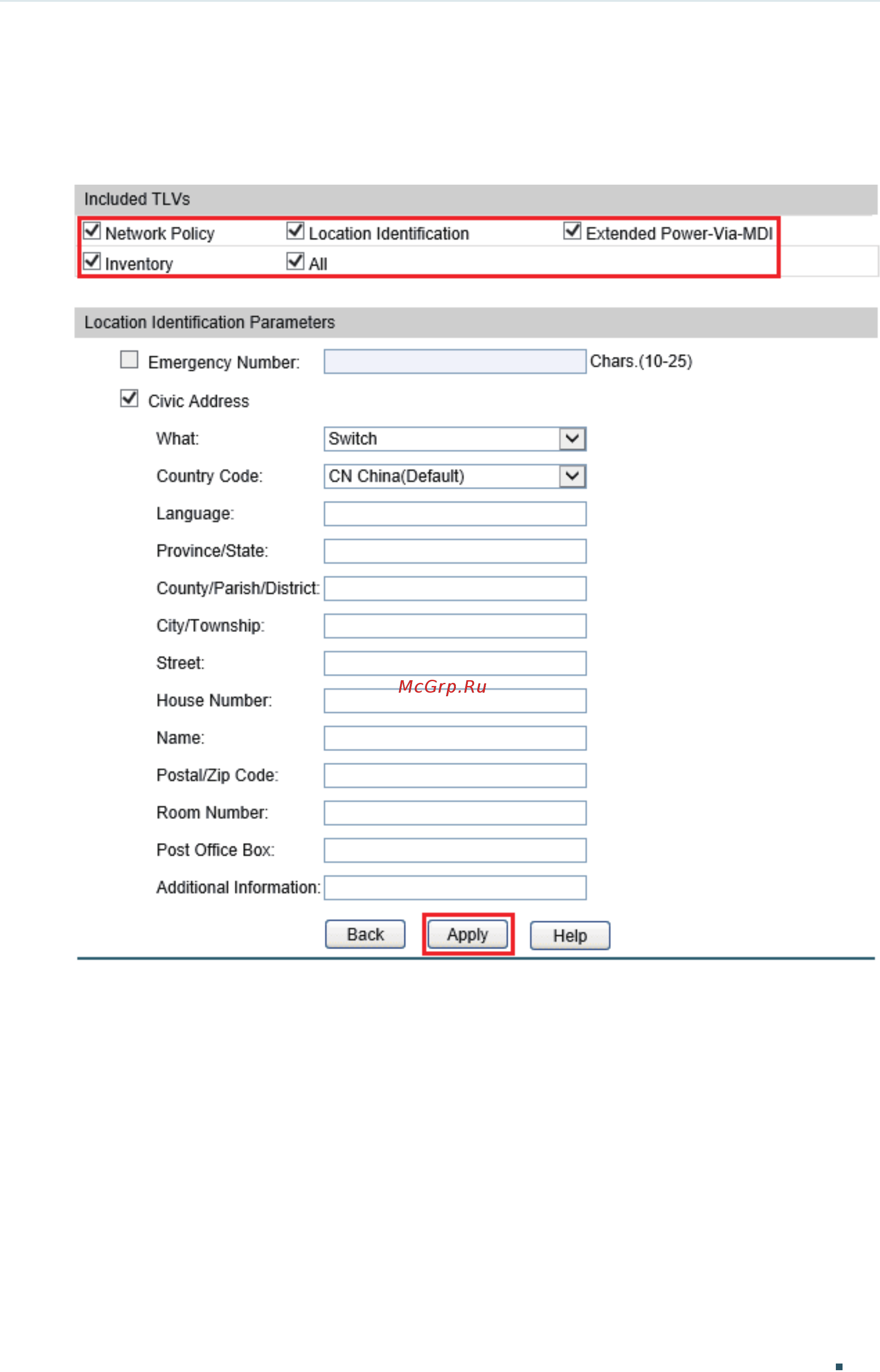

Figure 3-10 Configuring TLVs
For details about LLDP-MED, please refer to
Configuring LLDP
.
8) Click Save Config to save the settings.
Configurations for Switch B
1) Choose the menu VLAN > 802.1Q VLAN > VLAN Config and click Create to load the
following page. Create VLAN 10.
