Configuring Voice VLAN Configuration Example
Configuration Guide
501

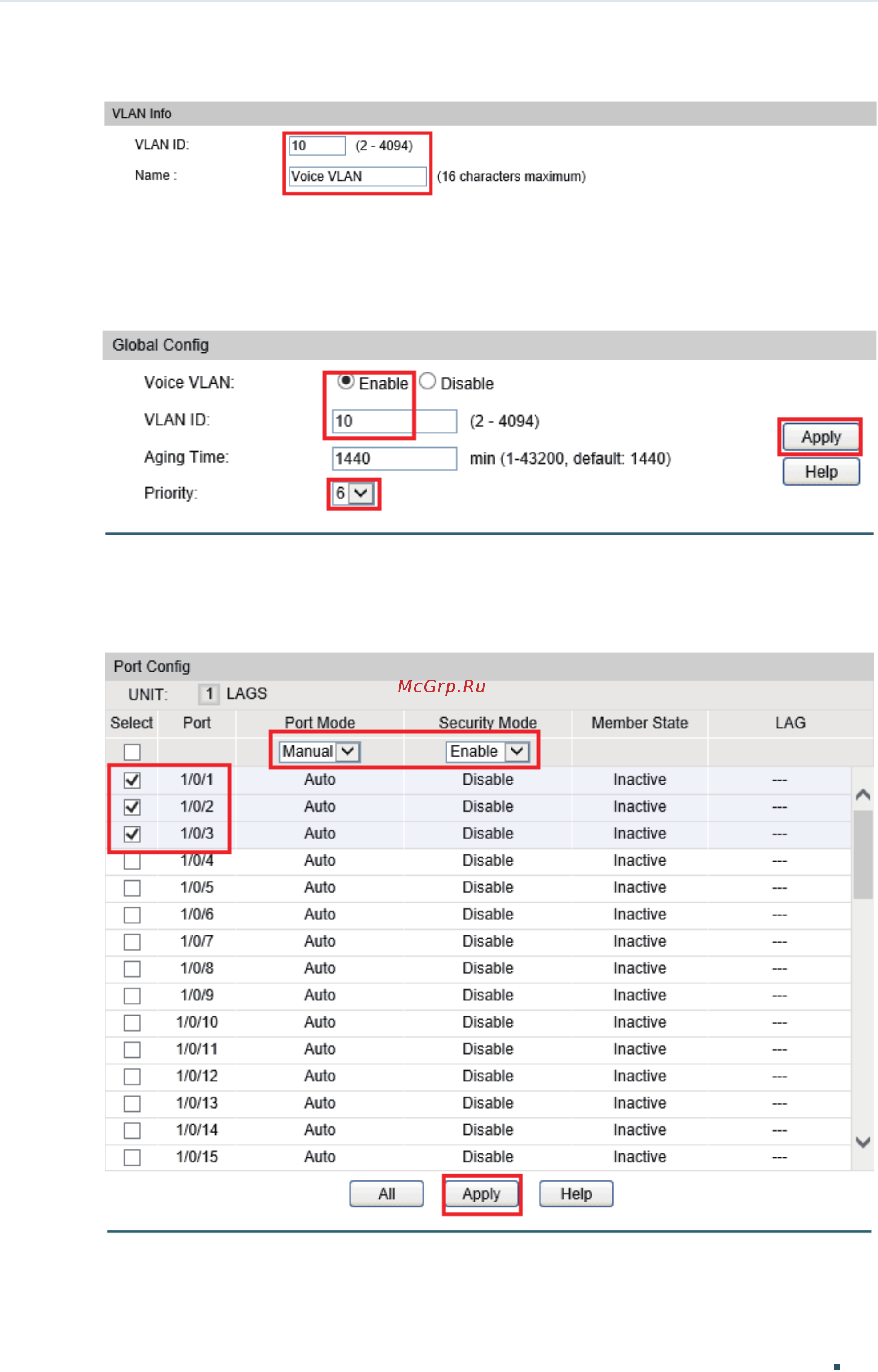

Figure 3-11 Creating a VLAN
2) Choose the menu QoS > Voice VLAN > Global Config to load the following page.
Enable voice VLAN, enter 10 in the VLAN ID field and set priority as 6.
Figure 3-12 Configuring Voice VLAN Globally
3) Choose the menu QoS > Voice VLAN > Port Config to load the following page. Select
ports 1/0/1-3, choose manual mode and enable security mode.
Figure 3-13 Configuring Voice VLAN Mode on Ports
4) Choose the menu VLAN > 802.1Q VLAN > VLAN Config and edit VLAN 10 to load the
following page. Add ports 1/0/1-3 to the voice VLAN.
