Configuration Guide 502
Configuring Voice VLAN Configuration Example

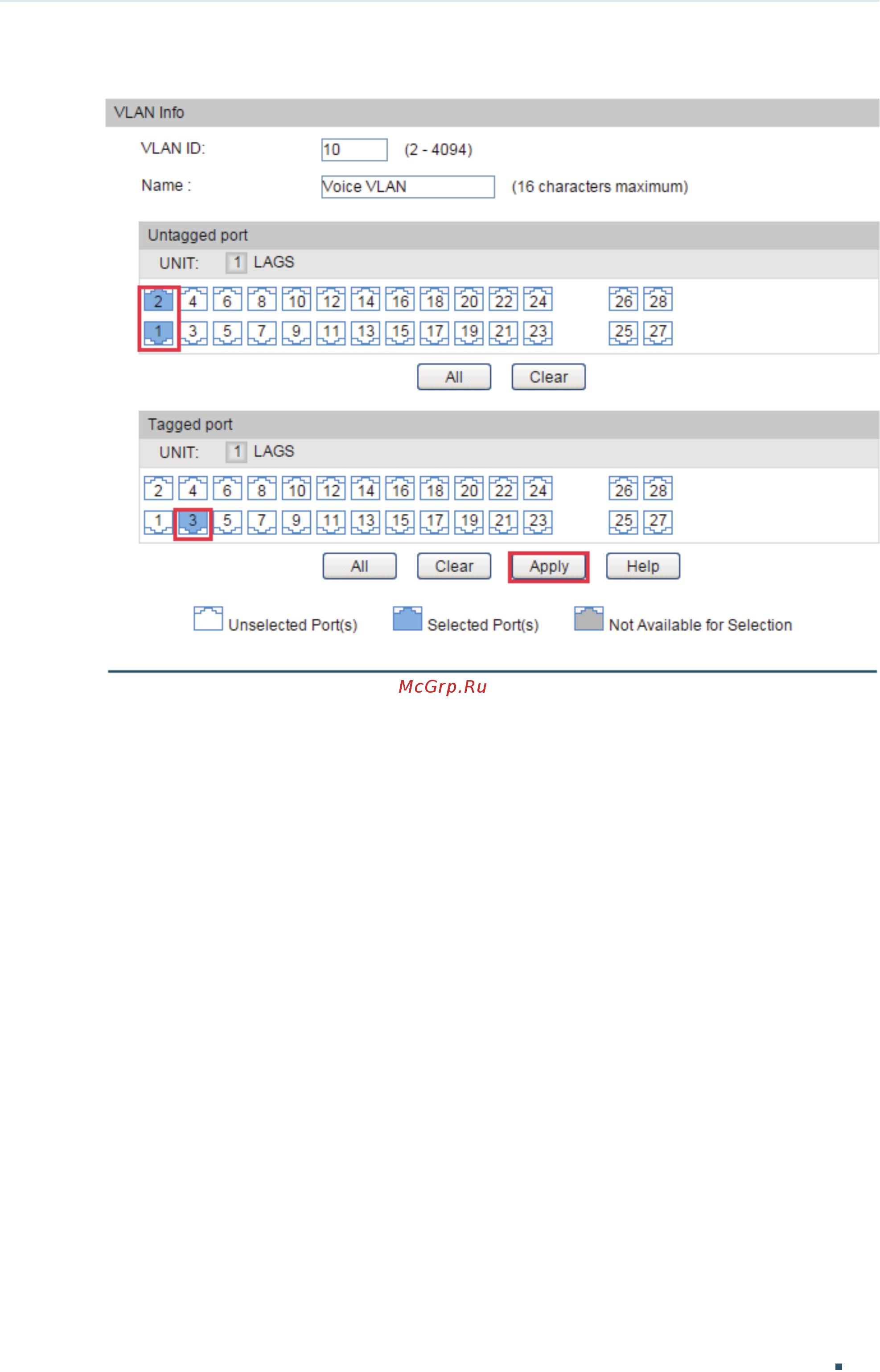

Figure 3-14 Adding Ports to the Voice VLAN
5) Click Save Config to save the settings.
Configurations for Switch C

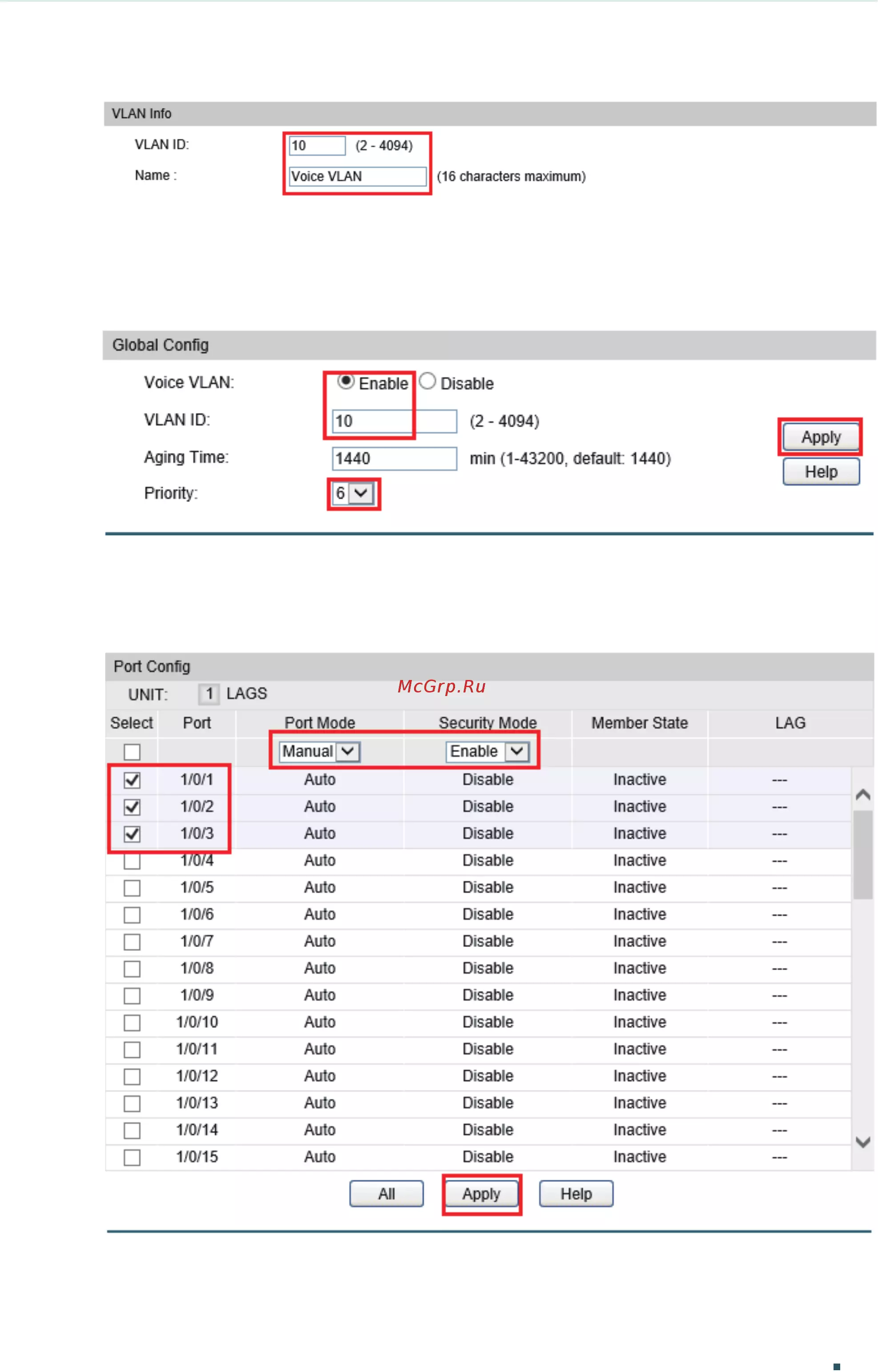

1) Choose the menu VLAN > 802.1Q VLAN > VLAN Config and click Create to load the
following page. Create VLAN 10 and add ports 1/0/1-3 as tagged ports to the VLAN.
