5-6 ENGINE RIGHT SIDE
Engine Right Side
Engine Right Side Disassembly
•
Drain the engine oil (see Engine Lubrication System
chapter).
•
Remove:
Footpeg
Brake Pedal
Oil Filter (see Engine Lubrication System chapter)

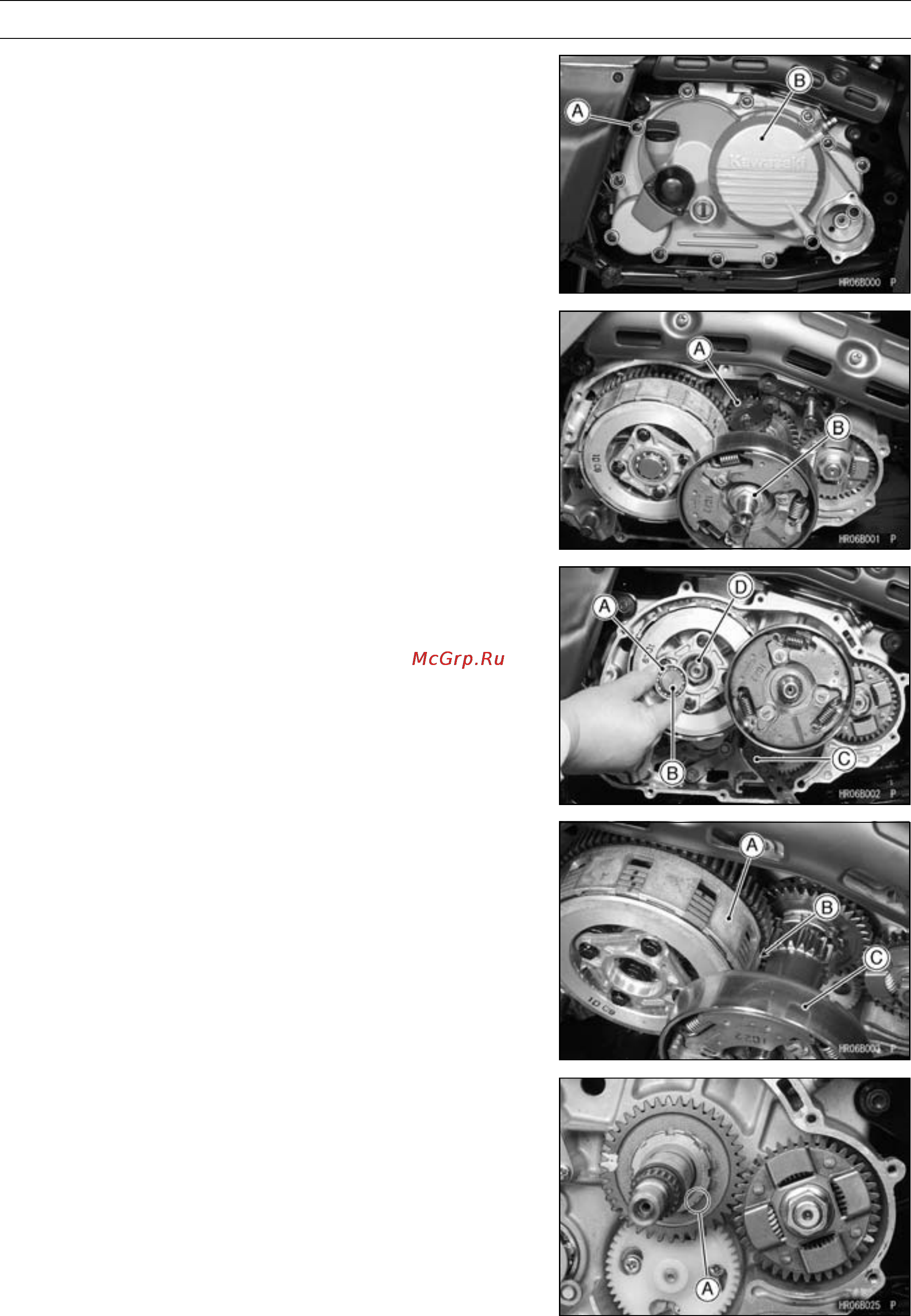

Right Engine Cover Bolts [A]
Right Engine Cover [B]
•
Using the gear holder [A], hold the primary gear and sec-
ondary gear.
Special Tool - Gear Holder: 57001-1015
•
Remove:
Primary Clutch Hub Nut [B]
•
Remove:
Ball Bearing [A] and Pusher [B]
•
Using the gear holder [C], hold the primary gear and sec-
ondary gear.
Special Tool - Gear Holder: 57001-1015
•
Remove:
Secondary Clutch Hub Nut [D]
•
Turn the secondary clutch [A] until the dent [B] on the sec-
ondary clutch housing comes against the primary gear,
and pull out the primary clutch housing [C] with the hub.
•
Remove:
Secondary Clutch
•
Flatten out the bent tab [A] of the toothed washer.
