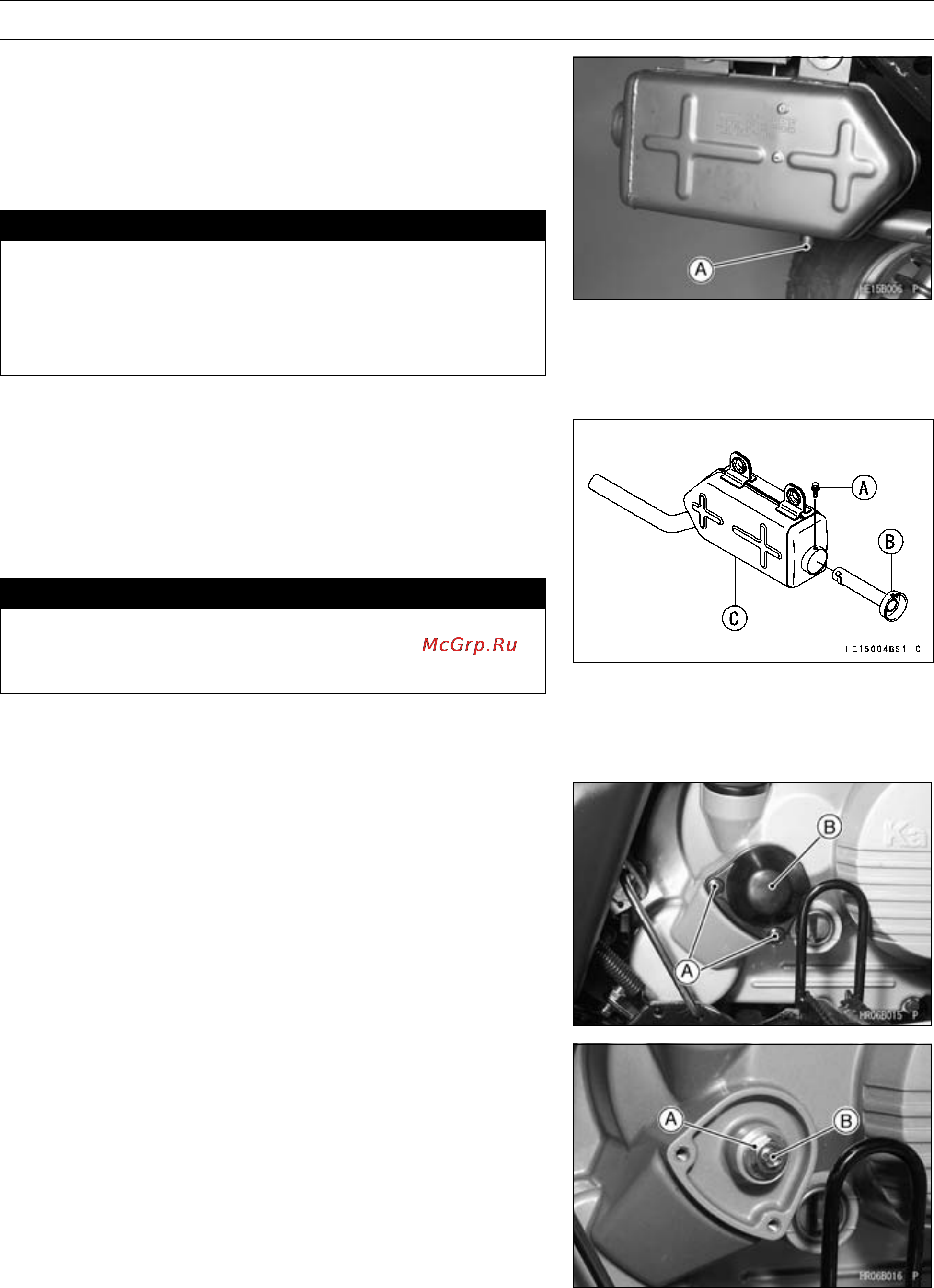

PERIODIC MAINTENANCE 2-11
Periodic Maintenance Procedures
•
Remove the drain plug [A] on the muffler.
•
In an open area away from combustible materials, start
the engine with the transmission in neutral.
•
Raise and lower engine speed while tapping on the muf-
fler with a rubber mallet until carbon particles are purged
from the muffler.
WARNING
Do not run the engine in a closed area. Exhaust
gases contain carbon monoxide; a colorless, odor-
less, poisonous gas. Breathing exhaust gas leads
to carbon monoxide poisoning, asphyxiation, and
death.
•
Stop the engine.
•
Remove:
Bolt [A]
Spark Arrester [B]
Muffler [C]
•
Scrape carbon deposits off the spark arrester and slide it
back into the muffler.
WARNING
Never run the engine with the spark arrester re-
moved near combustible materials. Hot carbon
particles may start a fire.
•
Install the drain plug.
Clutches
Clutch Adjustment
•
Remove:
Screws [A]
Adjusting Screw Cover [B]
•
Loosen the locknut [A].
•
Turn the adjusting screw [B] clockwise until it becomes
hard to turn.
•
Turn the adjusting screw counterclockwise until it be-
comes hard to turn.
•
Tighten the locknut without changing the adjusting screw
position.
Torque - Clutch Adjustment Locknut: 11 N·m (1.1 kgf·m, 95
in·lb)
•
Install the adjusting screw cover.
