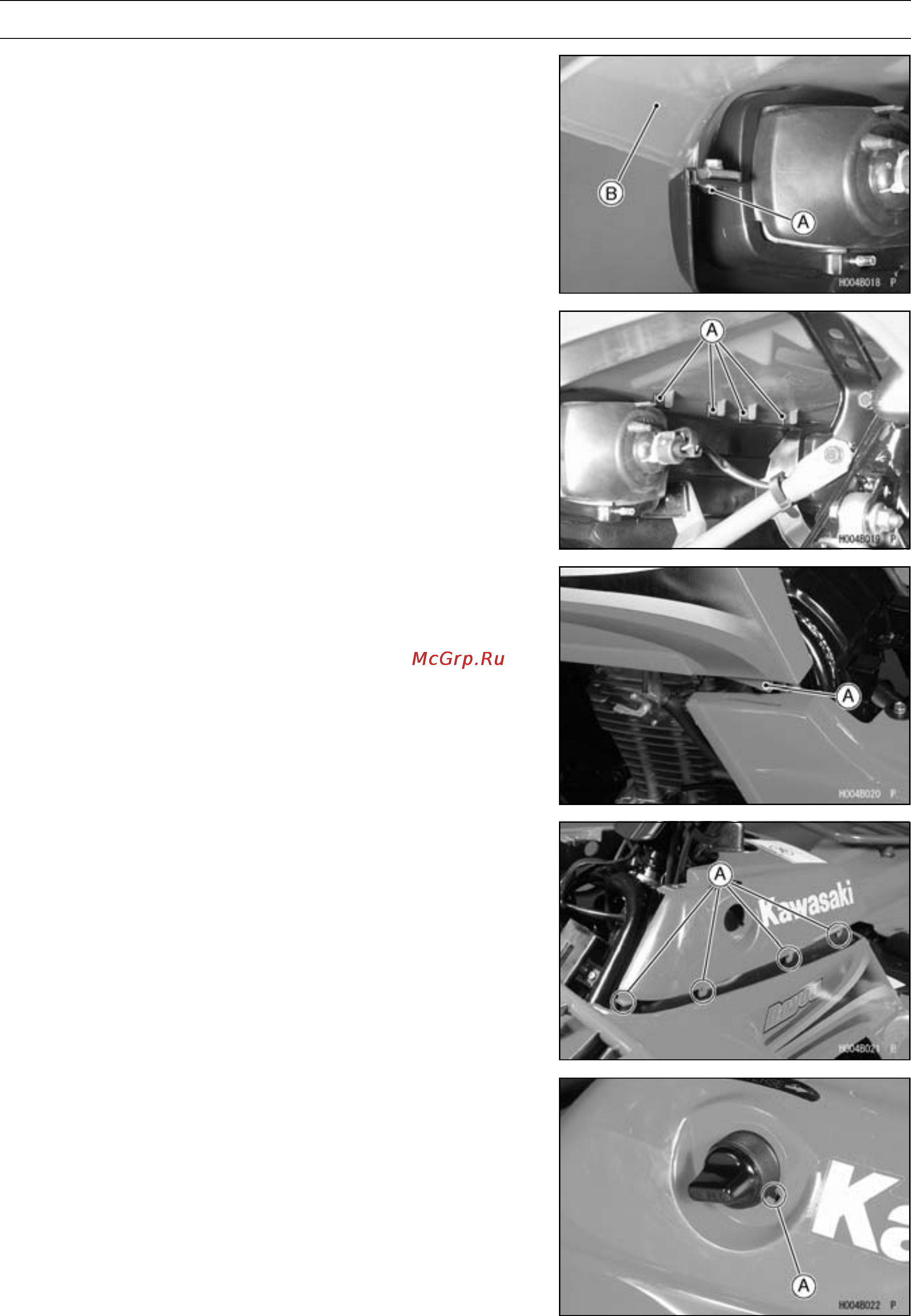

15-8 FRAME
Front and Rear Fenders
•
Remove:
Front Fender Screws [A] (Left and Right Sides)
Front Fender [B]
Front Fender Installation
•
Fit the tabs [A] on the headlight cover in the slots of the
rear fender.
•
Fit the tabs [A] on the front fender in the s lots of the rear
fender.
•
Fit the tabs [A] on the fuel tank cover in the slots of the
front fender from rear to front.
•
Fit the projection [A] on the reverse knob into the recess
in the front fender.
•
Tighten the nut securely.
