ELECTRICAL SYSTEM 16-21
Charging System
Regulator / Rectifier Output Voltage Inspection
•
Remove the seat (see Frame chapter).
•
Check the battery condition (see Battery section).
•
Warm up the engine to obtain actual alternator operating
conditions.
•

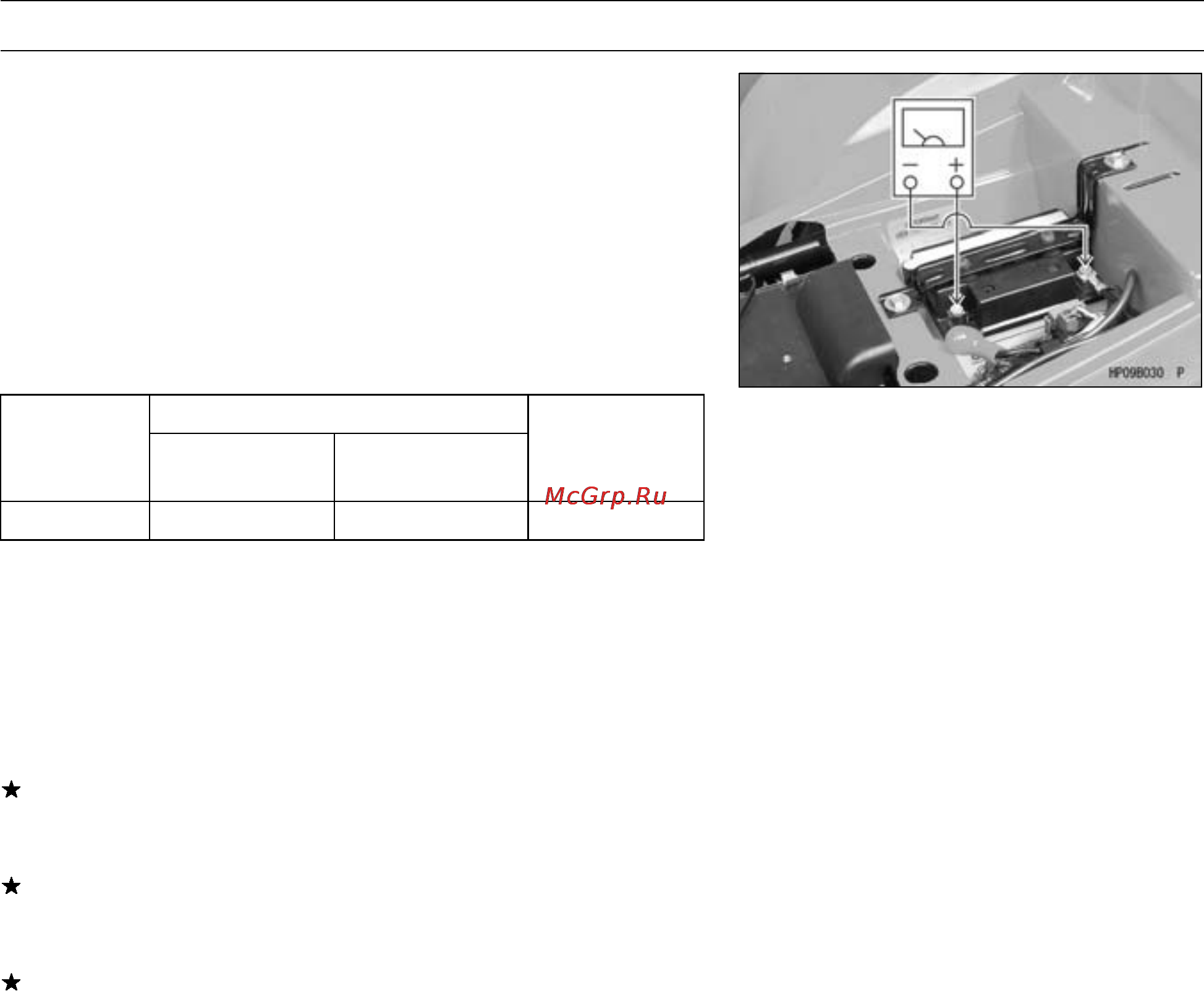

Check that the ignition switch is turned off, and c onnect a
hand tester to the battery terminals.
Special Tool - Hand Tester : 57001-1394
Regulator/Rectifier Output Voltage
Tester
Connections
Reading
Range
Test e r (+)
to
Teste r (−)
to
@4 000 r/min
(rpm)
25 V DC Battery (+) Battery (−)
14 ∼ 15 V
•
Start the engine and note the voltage readings at various
engine speeds with the headlight turned on and then off.
○
The readings should show nearly battery voltage when
the engine speed is low, and as the engine speed in-
creases, the readings should also increase.
•
Turn off the ignition switch, and disconnect the hand
tester.
If the regulator/rectifier output voltage is between the val-
ues given in the table, the charging system is working nor-
mally.
If the output voltage is much higher than the values spec-
ified in the table, the regulator/rectifier is defective or the
regulator/rectifier leads are l oose or open.
If the battery voltage does not increase as the engine
speed increases, then the regulator/rectifier is defective
or the alternator output is insufficient for the loads. Check
the alternator and regulator/rectifier to determine which
part is defective.
