FINAL DRIVE 11-19
Propeller Shaft

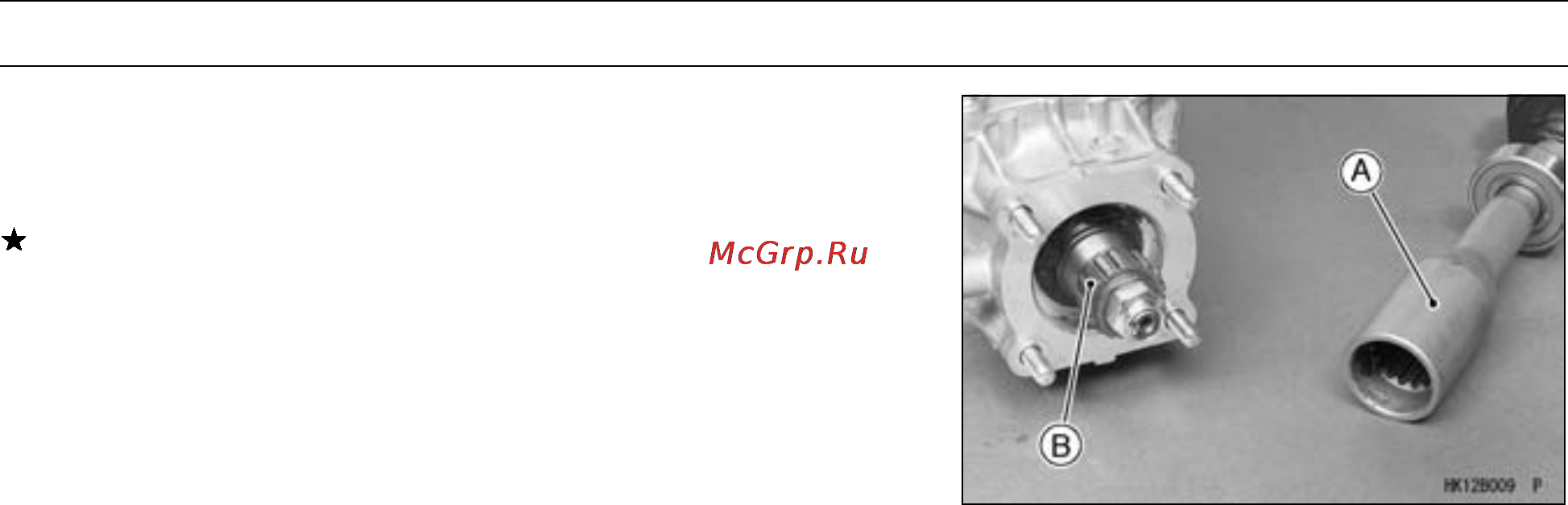

Propeller Shaft Joint and Pinion Gear Joint Inspection
•
Visually inspect the splines of both the propeller shaft slid-
ing joint [A] and the pinion gear joint [B].
If they are badly worn or chipped, replace the part with a
new one.
Propeller Shaft Joint Boot Inspection
•
Refer to the Propeller Shaft Joint Boot Inspection in the
Periodic Maintenance chapter.
