16-28 ELECTRICAL SYSTEM
Ignition System
•

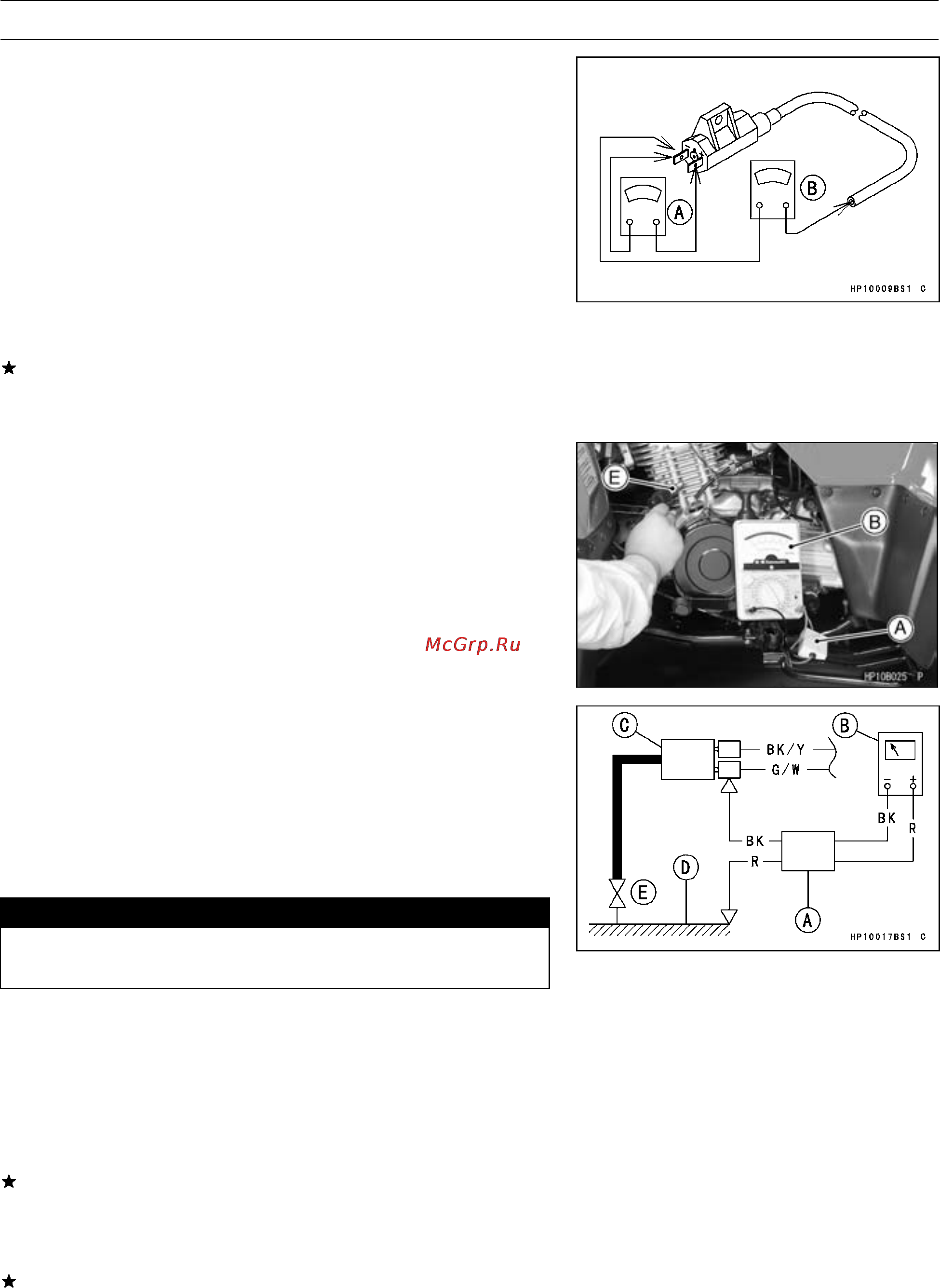

Measure the primary winding resistance [A] as follows:
○
Connect the tester between the coil terminals.
○
Set the tester to the x 1 Ω range, and read the tester.
•
Measure the secondary winding resistance [B] as follows:
○
Remove the plug cap by turning it counterclockwise.
○
Connect the tester between the spark plug lead and (−)
terminal.
○
Set the tester to the x 1 kΩ range, and read the tester.
Ignition Coil Winding Resistance
Primary windings : 0.09 ∼ 0.13 Ω
Secondary windings : 3.8 ∼ 5.8 kΩ
If the hand tester does not read as specified, replace the
coil.
○
To install the plug cap, turn it clockwise.
Ignition Coil Primary Peak Voltage Inspection
NOTE
○
Be sure the battery is fully charged.
•
Remove the spark plug c ap (see Spark Plug Removal),
but do not remove the spark plug.
•
Measure the primary peak voltage as follows.
○
Connect a commercial peak voltage adapter [A] to the
hand tester [B] (250 V DC range).
Special Tool - Hand Tester: 57001-1394
Special Tool - Peak Voltage Adapter: 57001-1415
Type: KEK-54-9-B
Brand: KOWA SEIKI
○
Connect the adapter between the G/W lead terminal of
the ignition coil [C] and the engine ground [D].
○
Install a new spark plug [E] into the spark plug cap, and
ground it to the engine.
WARNING
To avoid extremely high voltage shocks, do not
touch the spark plugs or tester connections.
•
Turn the ignition switch ON, rotate the engine for 4 ∼ 5
seconds with the transmission in neutral to measure the
primary peak voltage.
•
Repeat the measurements 5 times for one ignition coil.
Ignition Coil Primary Peak Voltage
Standard:
100 V or more
If the reading is less than the specified value, check the
following.
Ignition Coil (see Ignition Coil Inspection)
Crankshaft Sensor (see Crankshaft Sensor Inspection)
If the ignition coil and crankshaft sensor are normal, see
the Ignition System Troubleshooting chart on page 16-34.
