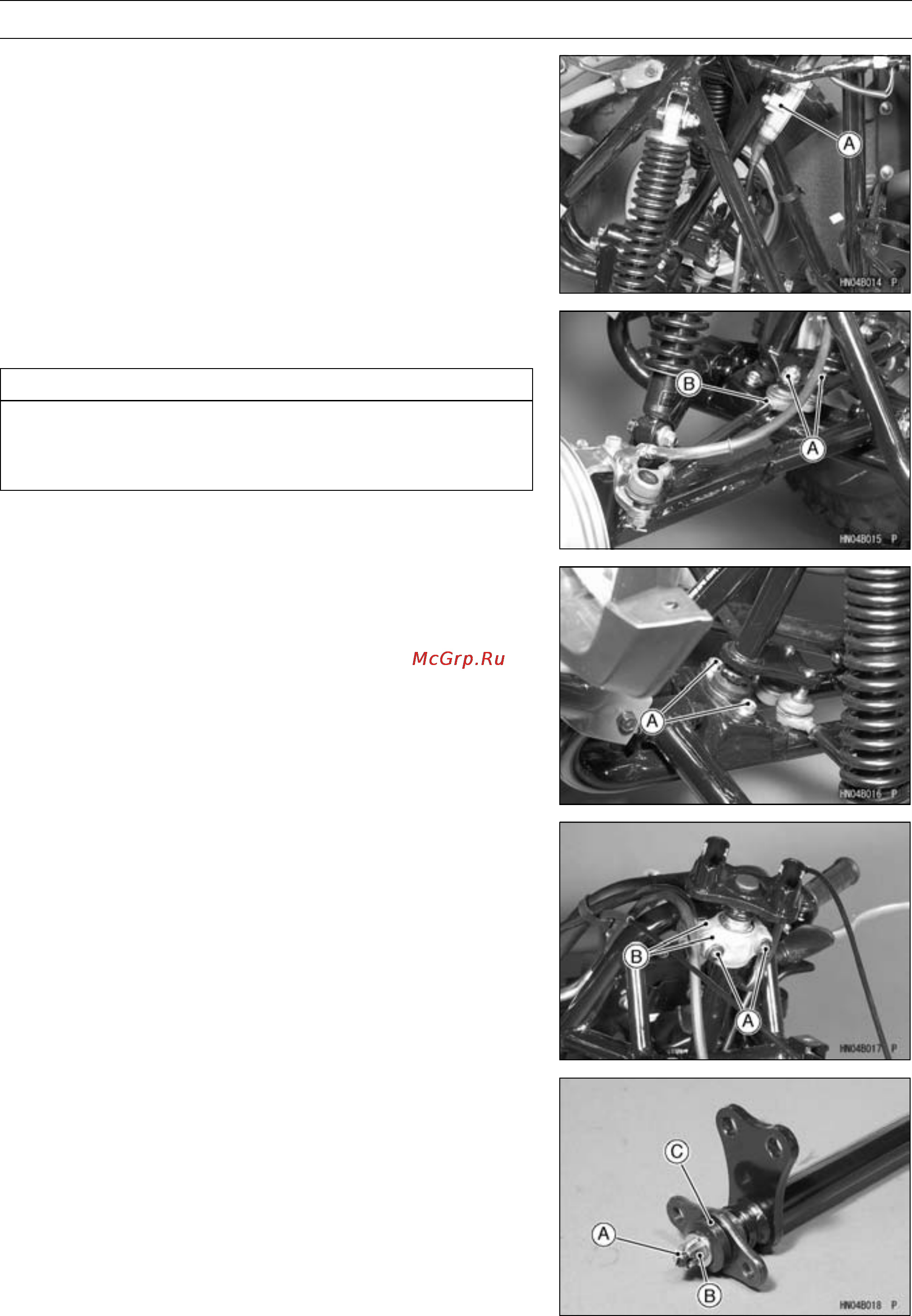

STEERING 14-5
Steering
Steering Stem Removal
•
Remove:
Front Fender (see Frame chapter)
Fuel Tank (see Fuel System chapter)
Front Brake Cable Equalizer [A]
Handlebar (see Handlebar Removal)
•
Remove:
Tie-rod End Nuts [A]
CAUTION
Do not loosen the locknuts [B] at the ends of the
tie-rod adjusting sleeve, or the toe-in of the front
wheels will be changed.
•
Remove:
Bearing Housing Mounting Bolts [A]
•
Remove:
Steering Clamp Bolts [A]
Steering Clamps [B]
•
Pull the steering stem out of the frame.
•
Remove:
Cotter Pin [A]
Stem Bottom End Nut [B]
Collar
Steering Stem Bearing [C]
