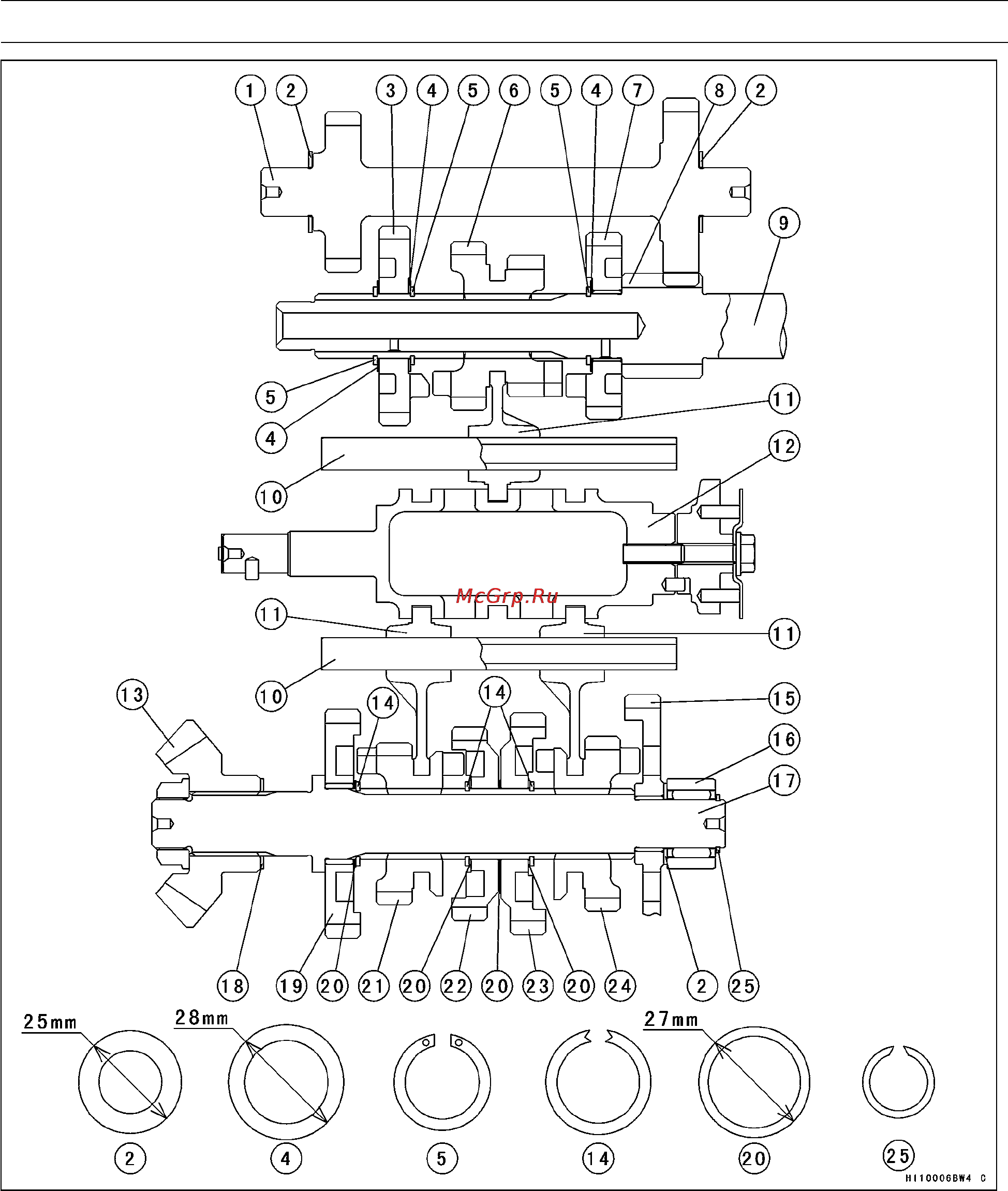

9-22 CRANKSHAFT/TRANSMISSION
Transmission
1. Reverse Shaft
2. Washer
3. Top Gear (28T)
4. Washer
5. Circlip
6. 3rd/2nd Gear (23T/19T)
7. 4th Gear (26T)
8. Low Gear (13T)
9. Input Shaft
10. Shift Rod
11. Shift Fork
12. Shift Drum
13. Bevel Gear
14. Circlip
15. Low Gear (38T)
16. Needle Bearing
17. Output Shaft
18. Shim
19. Reverse Gear (33T)
20. Washer
21. Top Gear (22T)
22. 3rd Gear (27T)
23. 2nd Gear (33T)
24. 4th Gear (24T)
25. Circlip
