3-8 FUEL SYSTEM
Throttle Lever and Cable
•

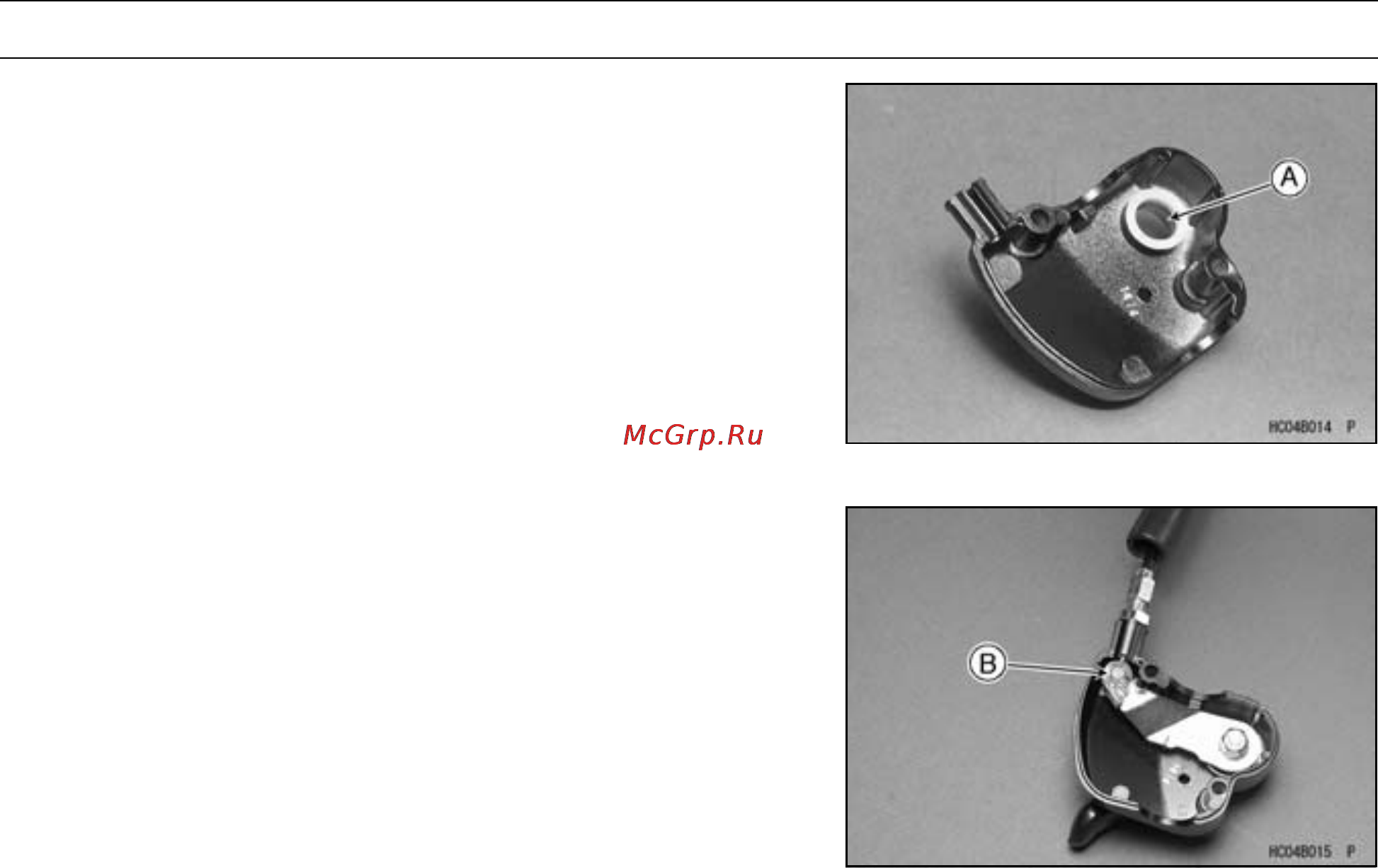

Apply a thin coating of multi-purpose grease to the throttle
lever pivot area [A] and throttle cable end [B].
Throttle Cable Lubrication and Inspection
•
Whenever the throttle cable is removed or in accordance
with the Periodic Maintenance Chart in the Periodic Main-
tenance chapter, lubricate the cable.
•
Refer to the General Lubrication in the Periodic Mainte-
nance chapter for the cable lubrication and inspection.
