ELECTRICAL SYSTEM 16-31

Ignition System

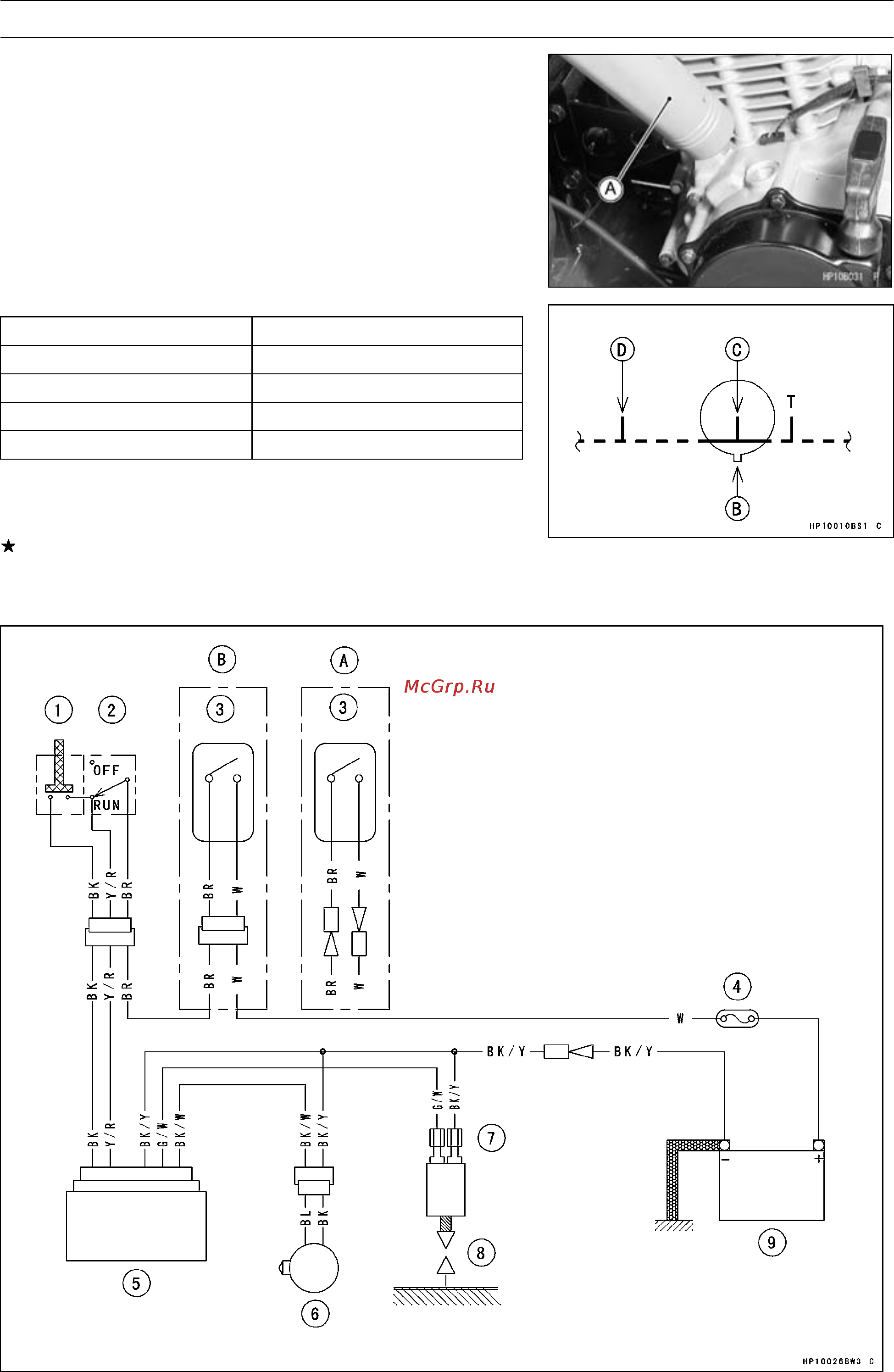

Ignition Timing Test

•

Remove the ignition timing inspection plug.

•

Attach the timing light [A] and a tachometer in the manner

prescribed by the manufacturer.

Special Tool - Timing Light : 57001-1241

•

Start the engine and aim the timing light at the timing m ark

on the alternator rotor.

•

Run the engine at the s peeds specified and note the align-

ment of the timing marks.

Ignition Timing

Engine speed r/min (rpm) Slot [B] aligned with:

1 800 and below

Advanced mark [C]

on alternator rotor

4 600 and above Advanced mark [D]

on alternator rotor

NOTE

○

Do not mix up the timing marks with the top mark "T".

If the ignition timing is incorrect, replace the igniter and

the C rankshaft Sensor.

Ignition System Circuit

A: KLF250-A1
