ELECTRICAL SYSTEM 16-29
Ignition System

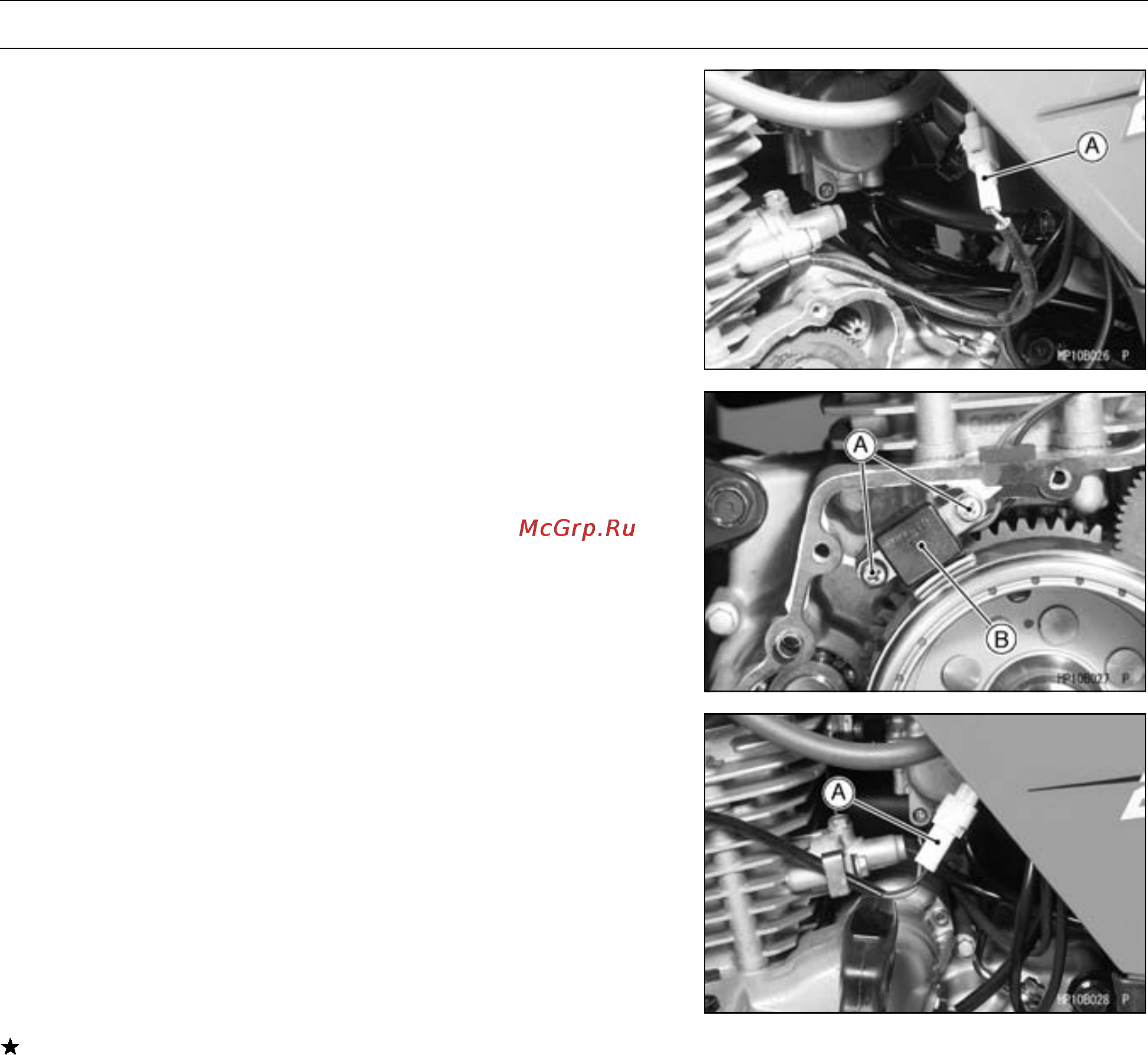

Crankshaft Sensor Removal
•
Remove:
Alternator Cover (see Alternator Cover Removal)
Lead Connector [A]
•
Remove:
Crankshaft Sensor Screws [A]
Crankshaft Sensor [B] and Spacer
Crankshaft Sensor Inspection
•
Disconnect the Crankshaft Sensor lead connector [A].
•
Measure the Crankshaft Sensor resistance.
○
Connect the hand tester between the BK lead and the BL
lead.
Special Tool - Hand Tester: 57001-1394
○
Set the tester to the x 10 Ω range, and read the tester.
Crankshaft Sensor Resistance
100 ∼ 150 Ω
If the tester does not read as specified, replace the Crank-
shaft Sensor.
