FUEL SYSTEM 3-17

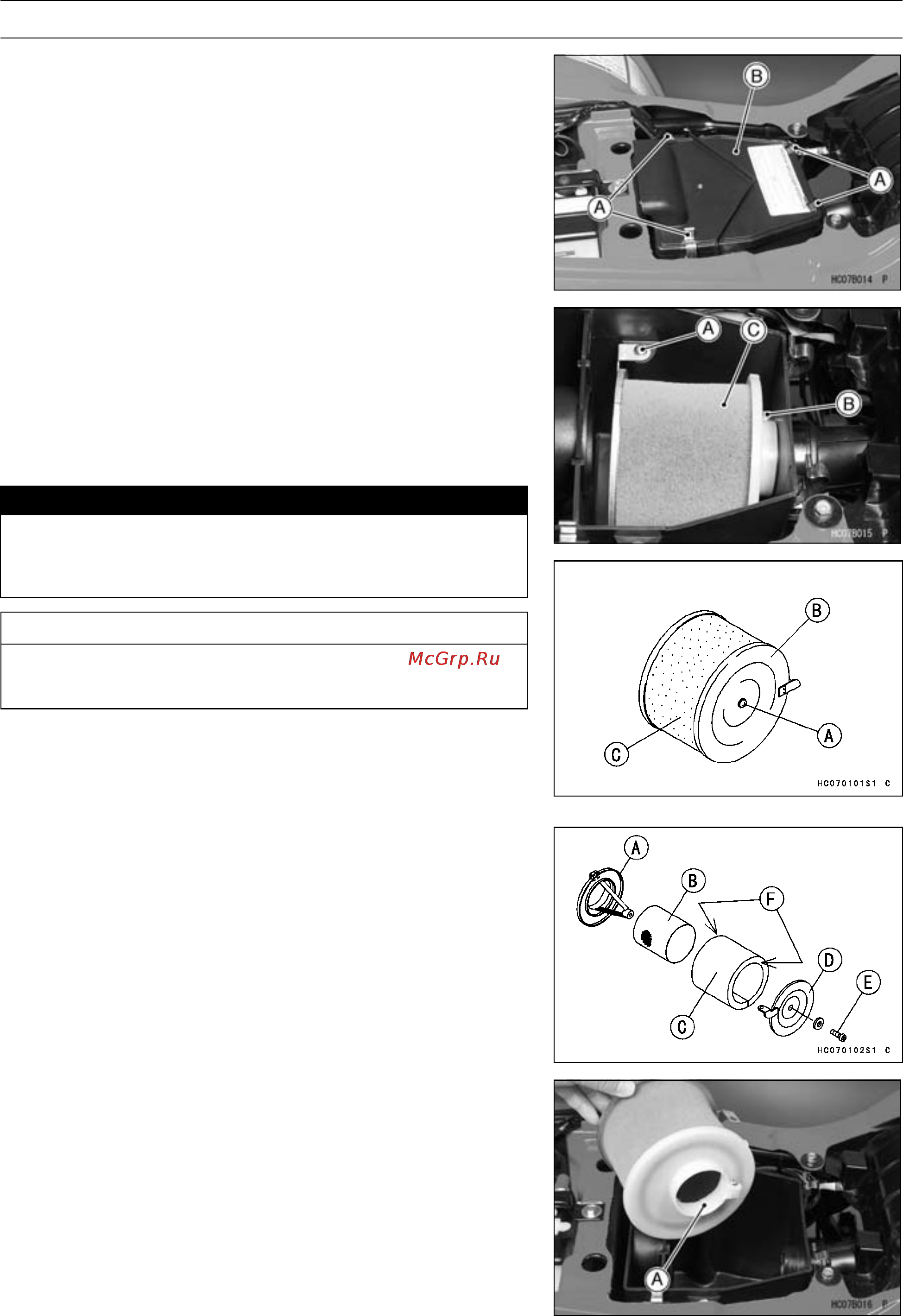

Air Cleaner

Air Cleaner Element Removal

•

Remove:

Seat (see Frame chapter)

Clips [A]

Air Cleaner Housing Cap [B]

•

Remove:

Element Mounting Screw [A]

Element Clamp Screw [B]

Element [C]

•

After removing the element, stuff pieces of lint-free, clean

cloth into the air cleaner duct to keep dirt out of the car-

buretor and engine.

WARNING

If dirt or dust is allowed to pass through into the

carburetor, the throttle may become stuck, possibly

causing an accident.

CAUTION

If dirt gets through into the engine, excessive en-

gine wear and possibly engine damage will occur.

•

Remove:

Screw [A] and Washer

Stopper [B]

Element [C]

Air Cleaner Element Installation

•

Install the following parts on the holder [A].

Metal Net [B]

Element [C]

Stopper [D]

Screw [E] and Washer

○

After cleaning the element, grease to the both sides [F]

on the element 2.8 ± 0.4 g (0.01 ± 0.014 oz) on one side.

•

Grease the element inlet [A] as shown.
