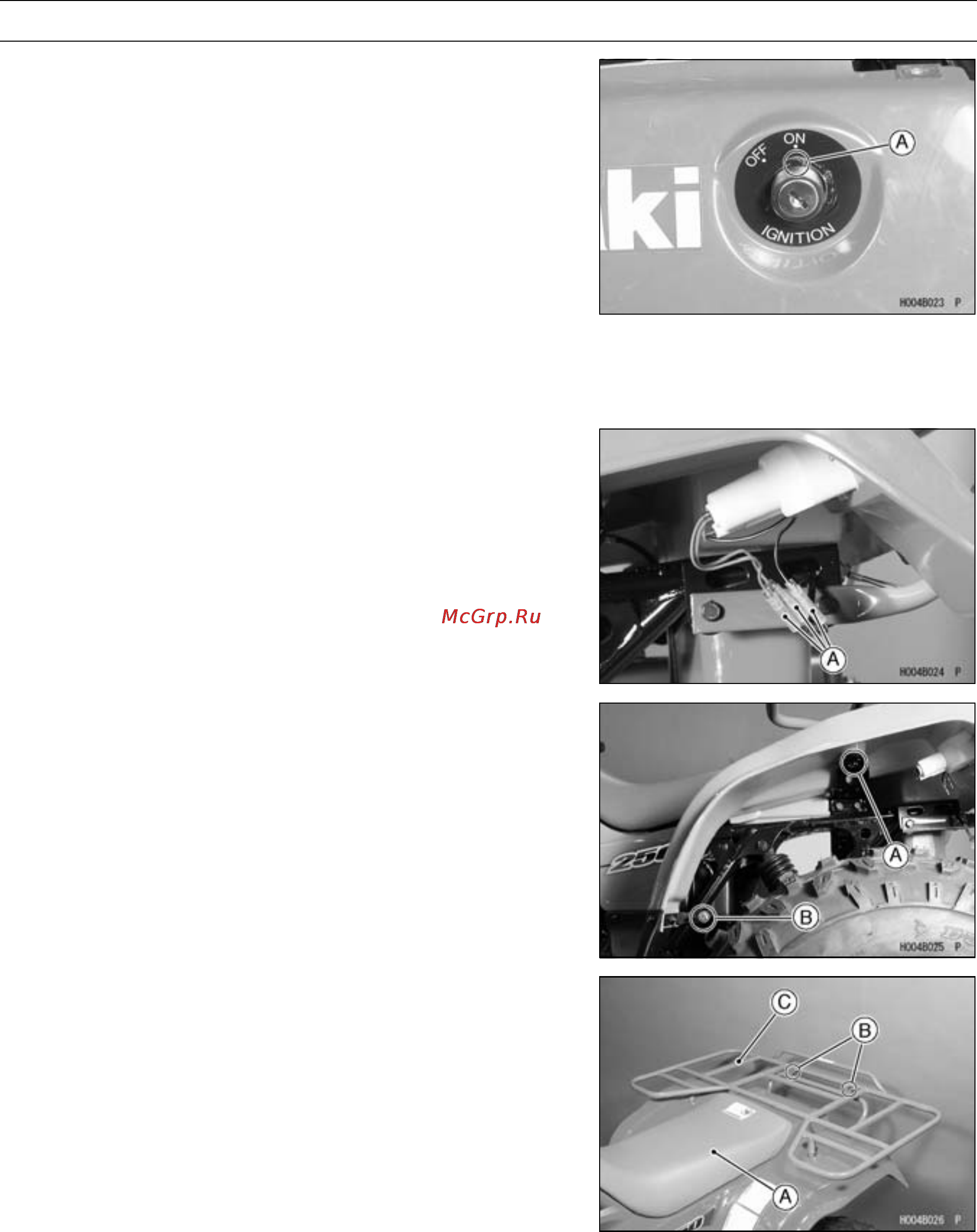

FRAME 15-9
Front and Rear Fenders
•
Fit the projection [A] on the ignition switch into the recess
in the front fender.
•
Tighten:
Torque - Ignition Switch Nut: 2.9 N·m (0.3 kgf·m, 26 in·lb)
•
Install:
Front Cover
Front Carrier
Rear Fender Removal
•
Remove:
Taillight Lead Connectors [A]
•
Remove:
Rear Carrier Bolts [A]
Rear Flap Bracket Bolts [B]
•
Remove:
Seat [A] (see Seat Removal)
Rear Carrier Bolts [B]
Rear Carrier [C]
