FUEL SYSTEM 3-13

Carburetor

Carburetor Installation

•

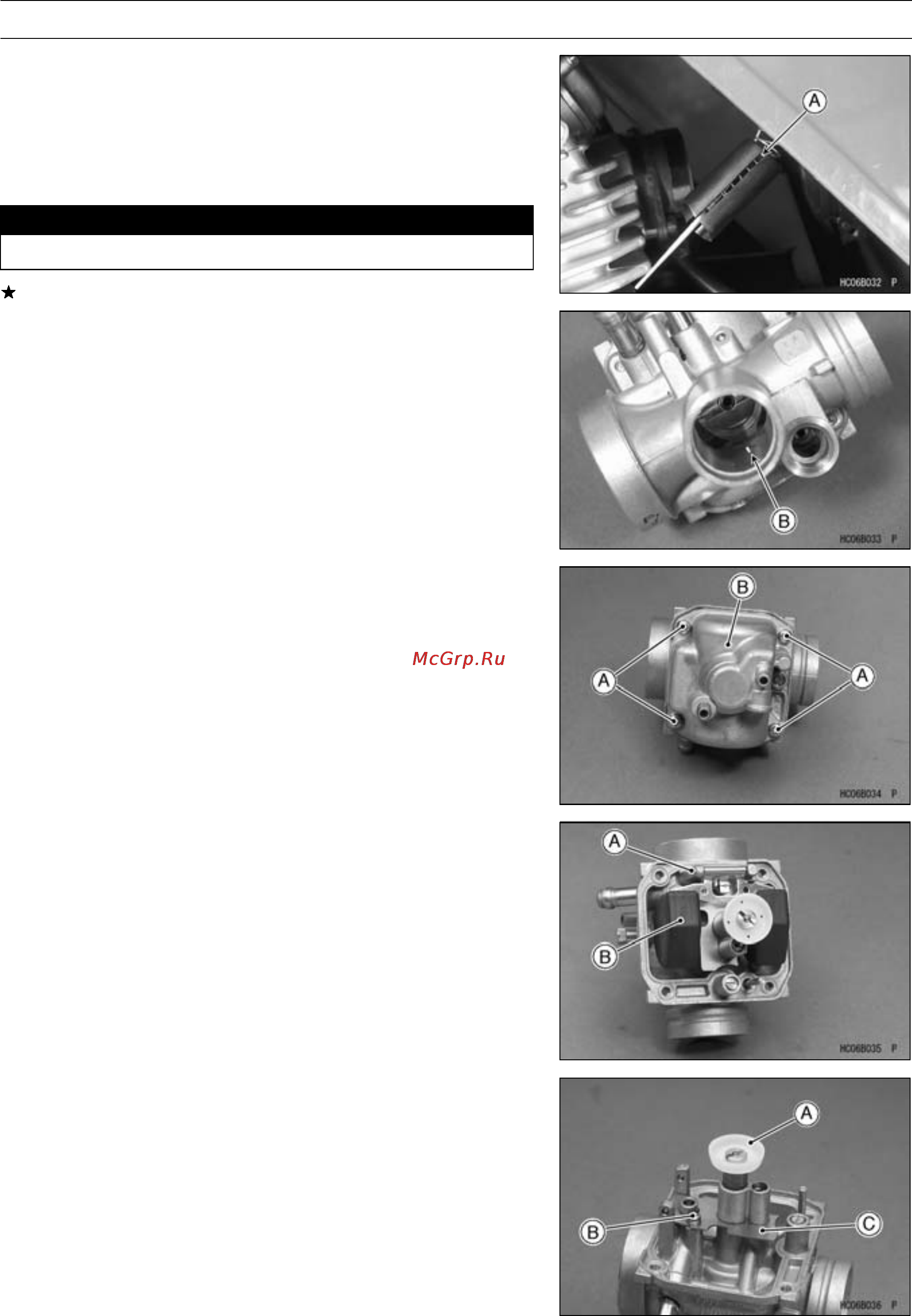

Align the slit [A] on the side of the throttle valve with the

guide pin [B] in the carburetor body.

•

Route the carburetor hoses according to Appendix chap-

ter.

•

Check fuel leakage from the carburetor.

WARNING

Fuel spilled from the carburetor is hazardous.

If the carburetor has been disassembled, or if there is

some other reason that the fuel level may be incorrect,

inspect the fuel level (see Carburetor Fuel Level Inspec-

tion).

•

Adjust the idle speed (see Idle Speed Adjustment).

•

Check the throttle cable (see Throttle Lever Free Play In-

spection in Periodic Maintenance chapter).

Carburetor Disassembly

•

Remove:

Carburetor (see Carburetor Removal)

Float Bowl Screws [A]

Float Bowl [B]

•

Slide out the float pivot pin [A], remove the float [B], and

drop out the float valve needle with its hanger.

•

Remove:

Main Jet Fence [A]

Plate Screw [B]

Plate [C]
