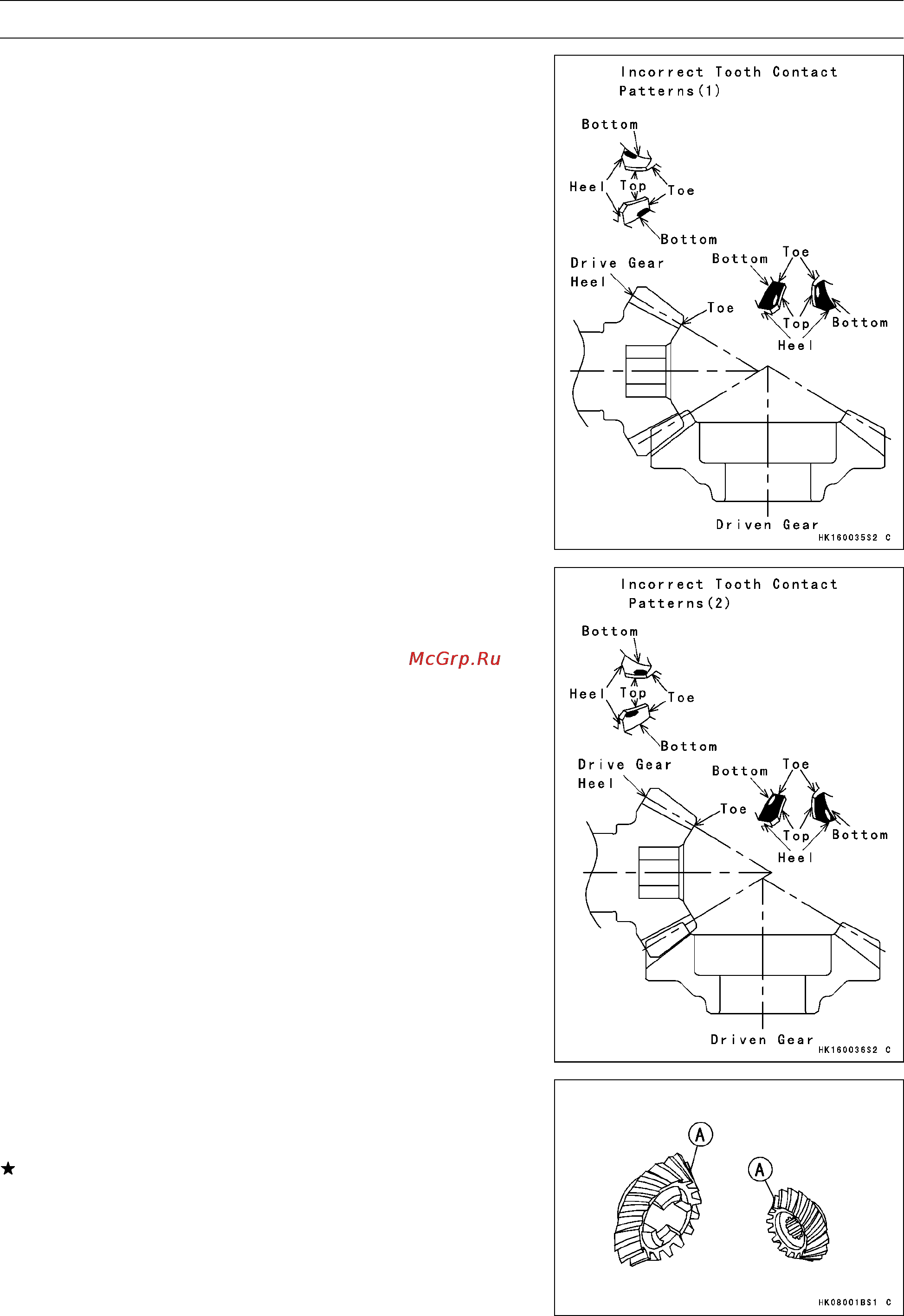

FINAL DRIVE 11-15
Output Bevel Gear Case
Example 1: Decrease the thickness of the drive gear
shim(s) by 0.05 mm (0.002 in.), and/or increase the thick-
ness of the driven bevel gear shim(s) by 0.05 mm (0.002
in.) to correct the pattern shown. Repeat in 0.05 mm
(0.002 in.) steps if necessary.
Example 2: Increase the thickness of the drive bevel gear
shim(s) by 0.05 mm (0.002 in.), and/or decrease the thick-
ness of the driven bevel gear shim(s) by 0.05 mm (0.002 in.)
to correct the pattern shown. Repeat in 0.05 mm (0.002 in.)
steps if necessary.
Bevel Gear Inspection
•
Visually check the bevel gears [A] for scoring, chipping,
or other damage.
Replace the bevel gears as a set if either gear is dam-
aged.
