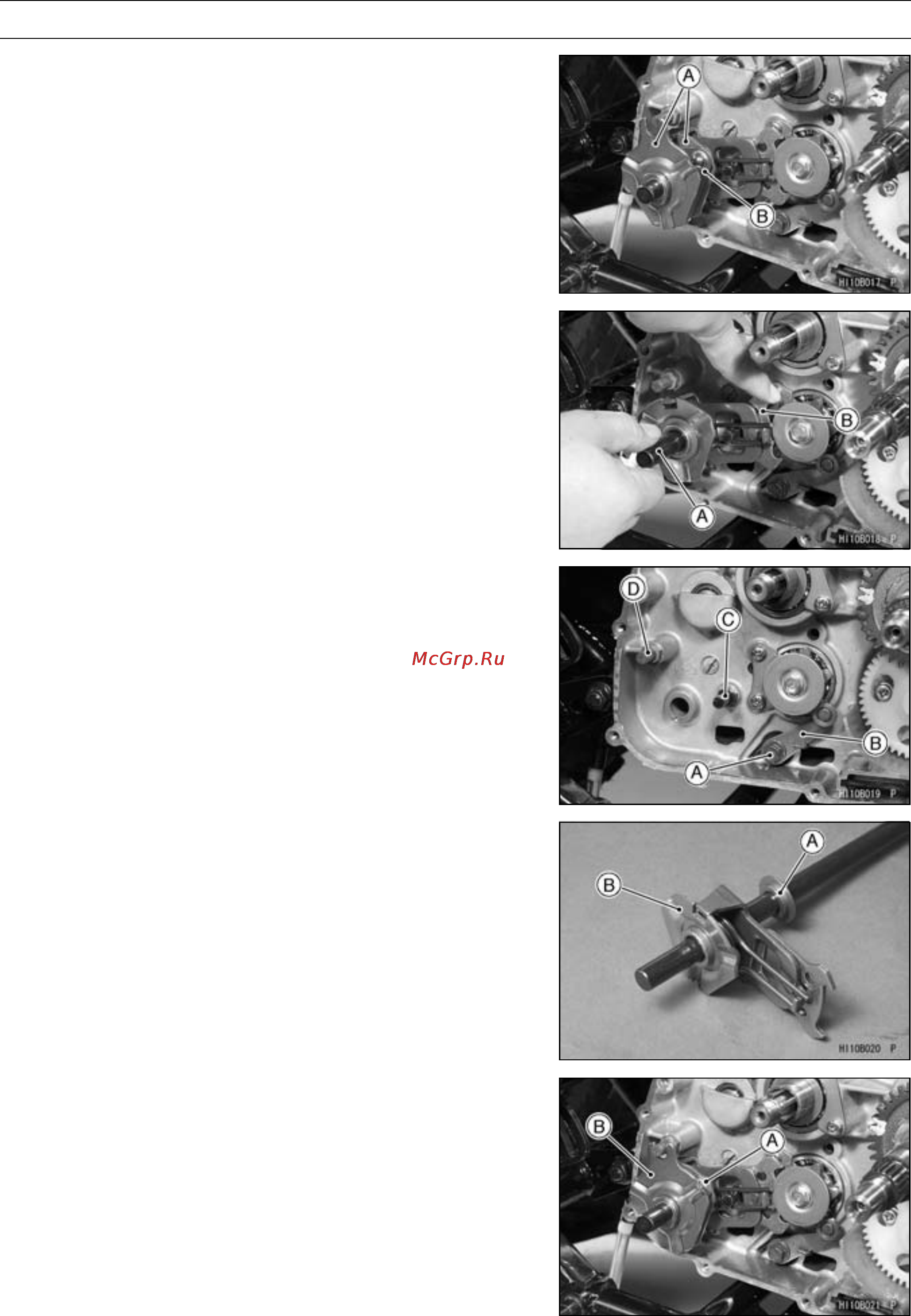

9-16 CRANKSHAFT/TRANSMISSION
Transmission
External Shift Mechanism Removal
•
Remove:
Shift Pedal
Clutches (see Engine Right Side chapter)
Clutch Release Cams [A]
Ball Assembly [B]
•
Remove:
Shift Mechanism Shaft [A]
NOTE
○
Move the shift mechanism arm [B] out of its position on
the end of the shift drum, and pull out the shift mecha-
nism shaft.
•
Remove:
Positioning Lever Bolt [A]
Positioning Lever [B] and Spring
Return Spring Pin [C]
Clutch Release Cam Pin [D]
External Shift Me c hanism Installation
•
Apply a non-permanent locking agent to the threads of
the return spring pin and cam pin, and tighten them.
Torque - Return Spring Pin: 25 N·m (2.5 kgf·m, 18 ft·lb)
Clutch Release C am Pin : 25 N·m (2.5 kgf·m, 18
ft·lb)
•
Be sure the shift mechanism arm collar [A] and clutch
release inner cam [B] are in place.
•
Install:
Ball Assembly [A]
Clutch Release Outer Cam [B]
