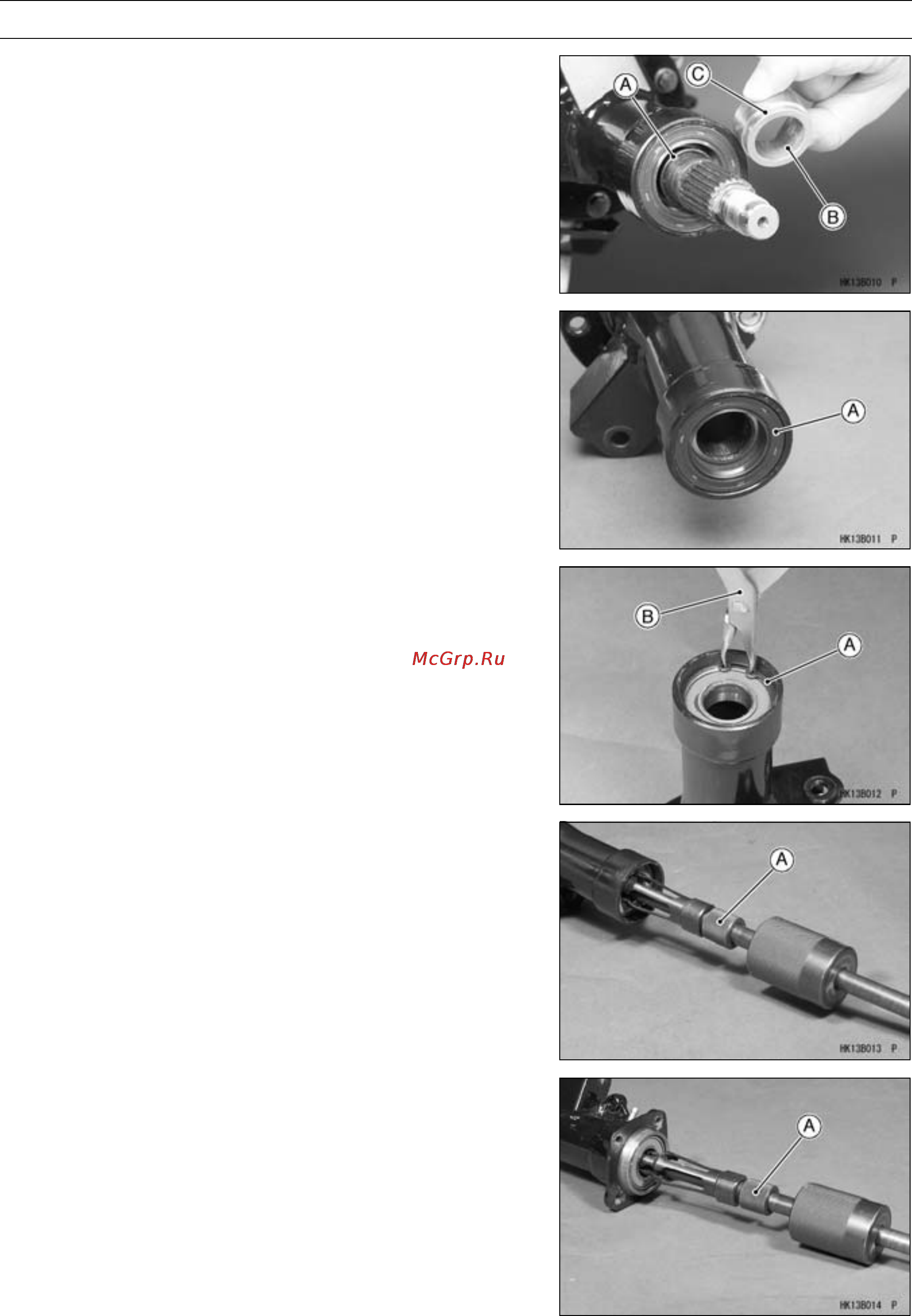

FINAL DRIVE 11-21
Rear Axle
•
Install:
O-ring [A]
Collar [B]
○
Install the collar so that the stepped side [C] face outward.
Axle Shaft Pipe D isassembly
•
Remove:
Axle Shaft Pipes (see Rear Axle Removal)
Left Side
•
Remove:
Oil Seal [A]
•
Remove:
Circlip [A]
Special Tool - Inside Circlip Pliers [B]: 57001-143
•
Remove:
Ball Bearing
Special Tool - Oil Seal & Bearing Remover [A]: 57001-1058
Right Side
•
Remove:
Ball Bearing
Special Tool - Oil Seal & Bearing Remover [A]: 57001-1058
•
Remove:
Oil Seal
