ELECTRICAL SYSTEM 16-11
Electrical Wiring
Wiring Inspection
•
Visually inspect the wiring for signs of burning, fraying,
etc.
If any wiring is defective, replace the damaged wiring.
•

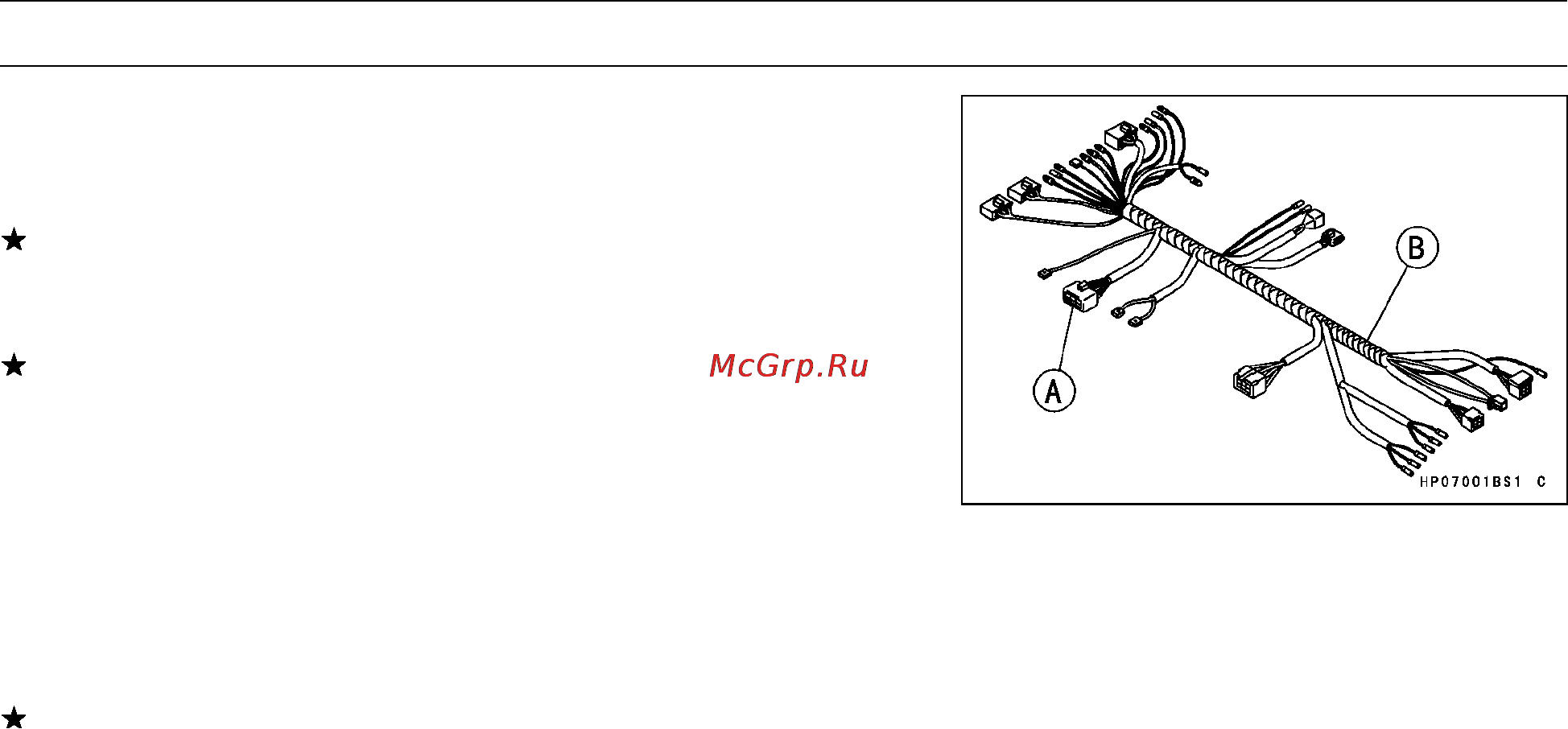

Pull each connector [A] apart and inspect for corrosion,
dirt, and damage.
If the connector is corroded or dirty, clean it carefully. If it
is damaged, replace it.
•
Check the wiring for c ontinuity.
○
Use the wiring diagram to find the ends of the lead which
is suspected of being a problem.
○
Connect the hand tester between the ends of the leads.
Special Tool - Hand Tester: 57001-1394
○
Set the tester to the x 1 Ω range.
If the tester does not read 0 Ω, the lead is defective. Re-
place the lead or the wiring harness [B] if necessary.
