6-6 RECOIL STARTER

Recoil Starter

•

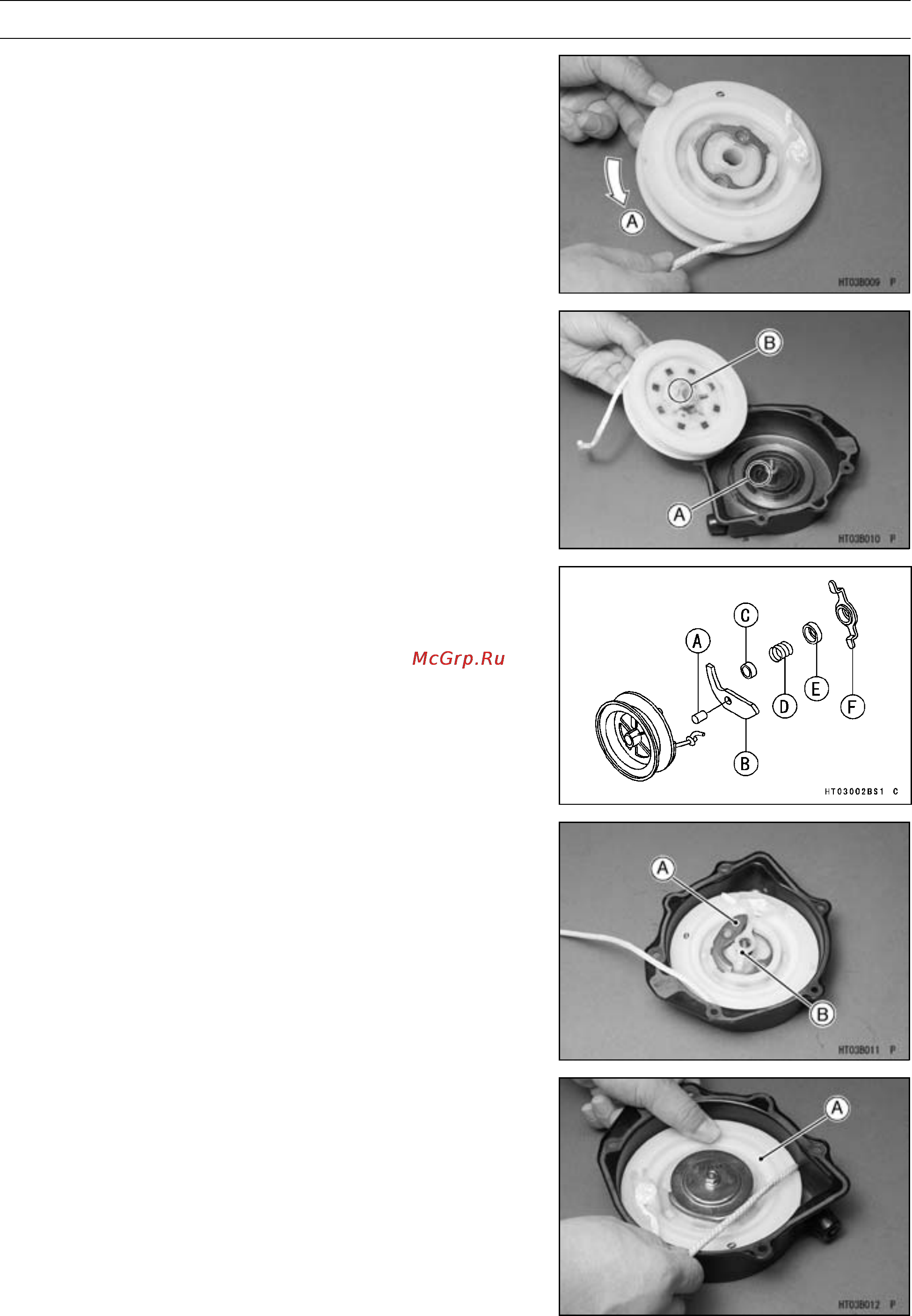

If the rope was unwound from the reel, it must be wound

clockwise for correct starter operation.

•

Wind the rope around the smaller diameter of the reel.

NOTE

○

Turn the reel counterclockwise [A] to wind the rope

clockwise. This prevents the rope from twisting.

•

Set the reel into the place so that the hook [A] on the

spring catches on the tab [B] in the reel.

•

Install:

Pin [A]

Pawl [B]

Recoil Shaft [C]

Friction Plate Spring [D]

Collar [E]

Recoil Guide [F]

○

Apply grease to the pin and collar.

○

Install the pawl [A] and recoil guide [B] as shown for

proper starter operation.

•

Install:

Friction Plate

•

Tighten:

Torque - Recoil Starter Flange Nut: 12 N·m (1.2 kgf·m, 104

in·lb)

•

Turn the reel [A] two turns clockwise to preload the

spring.
