BRAKES 12-7

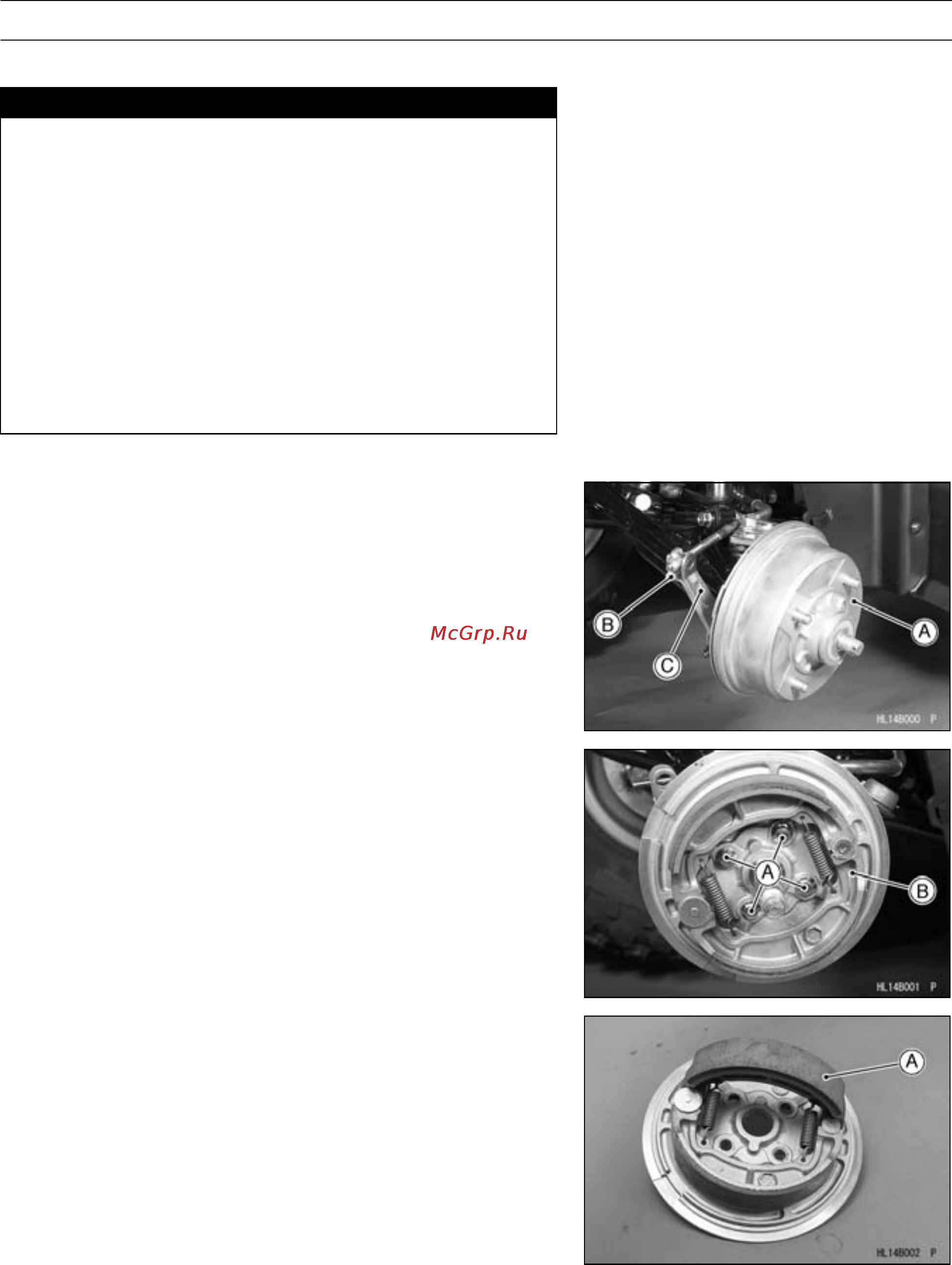

Brake Drum and Panel

Front Brake Panel Removal/Disassembly

WARNING

Brake linings contain asbestos fiber. Inhalation of

asbestos may cause serious scarring of the lungs

and may promote other internal injury and illness,

including cancer. Observe the following precau-

tions when handling brake linings:

1. Never blow brake lining dust with compressed

air.

2. If any component are to be cleaned, wash them

with detergent, then immediately discard the clean-

ing solution and wash your hands.

3. Do not grind any brake lining material unless a

ventilation hood is available and properly u sed.

•

Loosen the axle nut.

•

Remove:

Wheel (see Wheels/Tires chapter)

Axle Nut

Brake Drum [A]

Brake Adjuster [B] (at the brake cam lever [C])

•

Remove:

Brake Panel Bolts [A]

Brake Panel [B]

•

Remove:

Brake Shoes [A]
