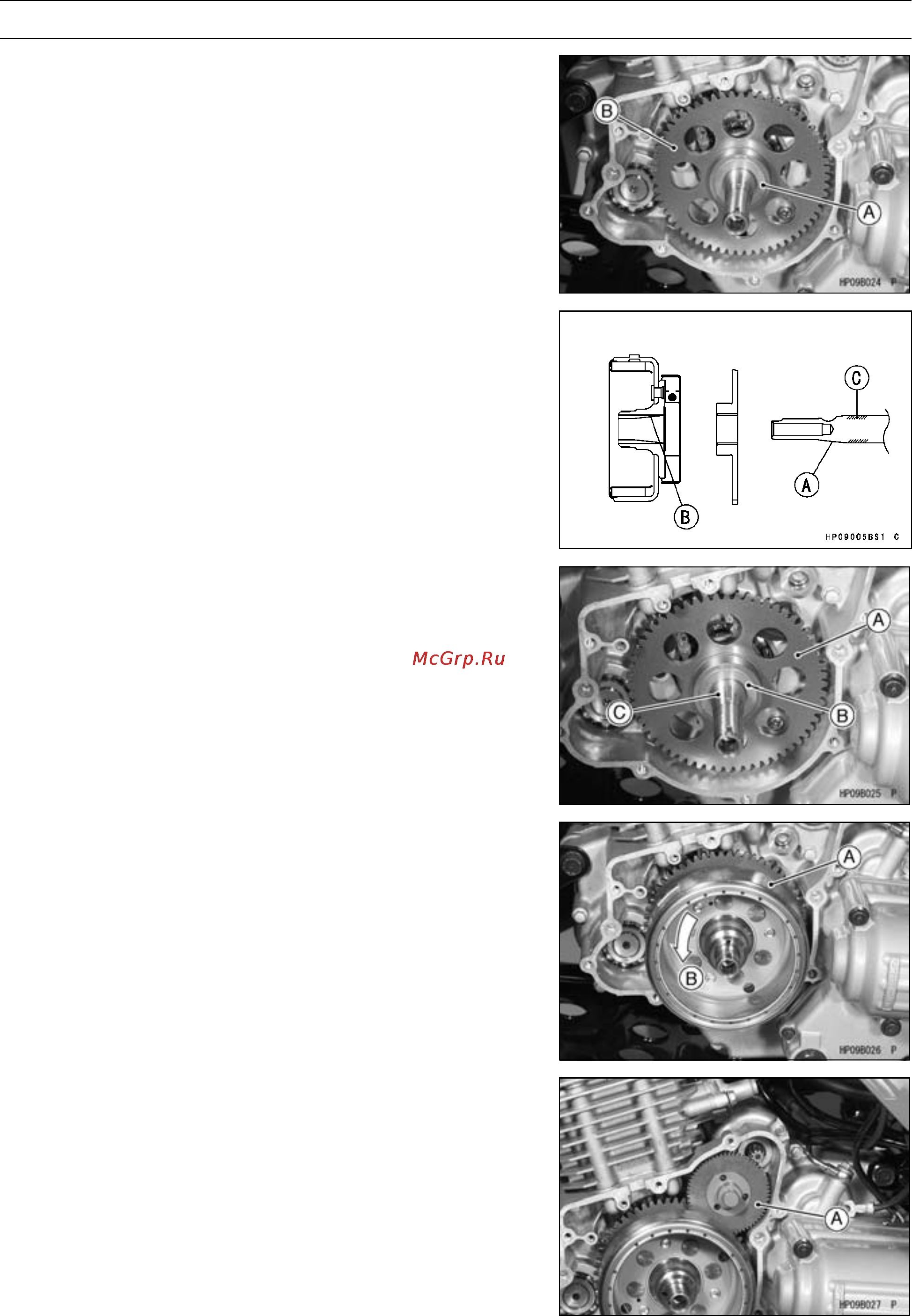

ELECTRICAL SYSTEM 16-19
Charging System
•
Remove:
Woodruff Key
Spacer [A]
Starter Clutch Gear [B]
Alternator Rotor Installation
•
Using a cleaning fluid, clean off any oil or dirt on the fol-
lowing portions and dry them with a clean cloth.
[A] Crankshaft Tapered Portion
[B] Alternator Rotor Tapered Portion
•
Apply a thin coat of molybdenum disulfide oil to the crank-
shaft [C].
•
Install the starter clutch gear [A] and spacer [B].
•
Again, clean the crankshaft tapered portion [C] and dry
there.
•
Install the woodruff key.
•
Install the alternator rotor [A] while turning [B] it counter-
clockwise.
•
Apply molybdenum disulfide oil to the both ends of the
torque limiter [A].
•
Apply molybdenum disulfide grease to the gear of the
torque limiter and install it.
•
Install:
Ball Bearing
Alternator Cover (see Alternator Cover Installation)
