3-12 FUEL SYSTEM

Carburetor

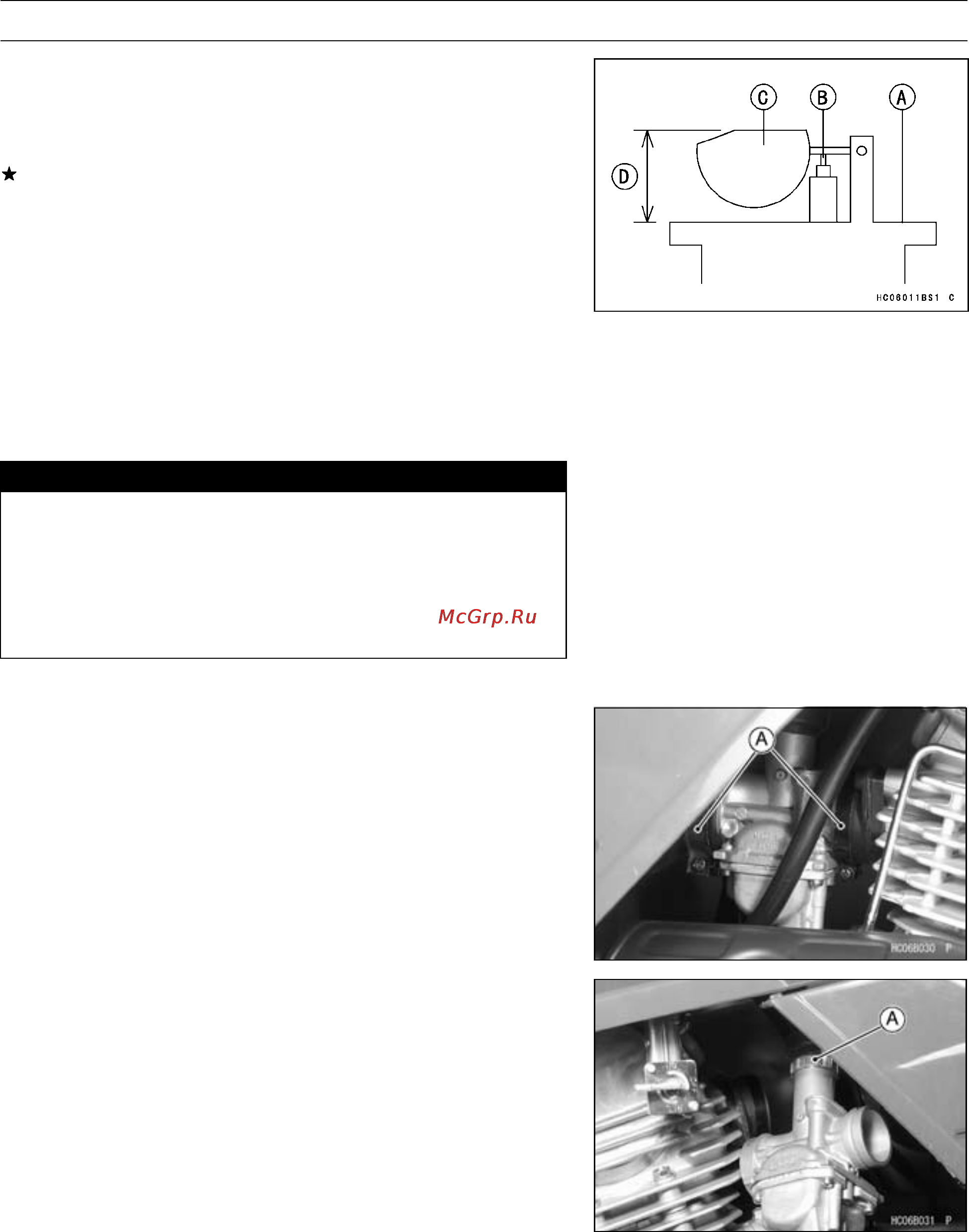

Float Bowl Mating Surface [A]

Float Valve Needle Rod (contacted but unloaded) [B]

Float [C]

Float Height [D]

If the fuel level cannot be adjusted by this method, the

float or the float valve is damaged.

•

Assemble the carburetor, install it on the vehicle, and

recheck the fuel level.

Fuel System Cleanliness Inspection

•

Refer to the Fuel System Cleanliness Inspection in the

Periodic Maintenance chapter.

Carburetor Removal

WARNING

Gasoline is extremely flammable and can be ex-

plosive under certain conditions. Turn the ignition

switch OFF. Do not smoke. Make sure the area is

well ventilated and free from any source of flame

or sparks; this includes any appliance with a pilot

light.

•

Turn the fuel tap to the OFF position.

•

Remove:

Fuel Hose

Starter Plunger

Clamps [A]

•

Pull out the carburetor.

•

Remove the carburetor cap [A].
