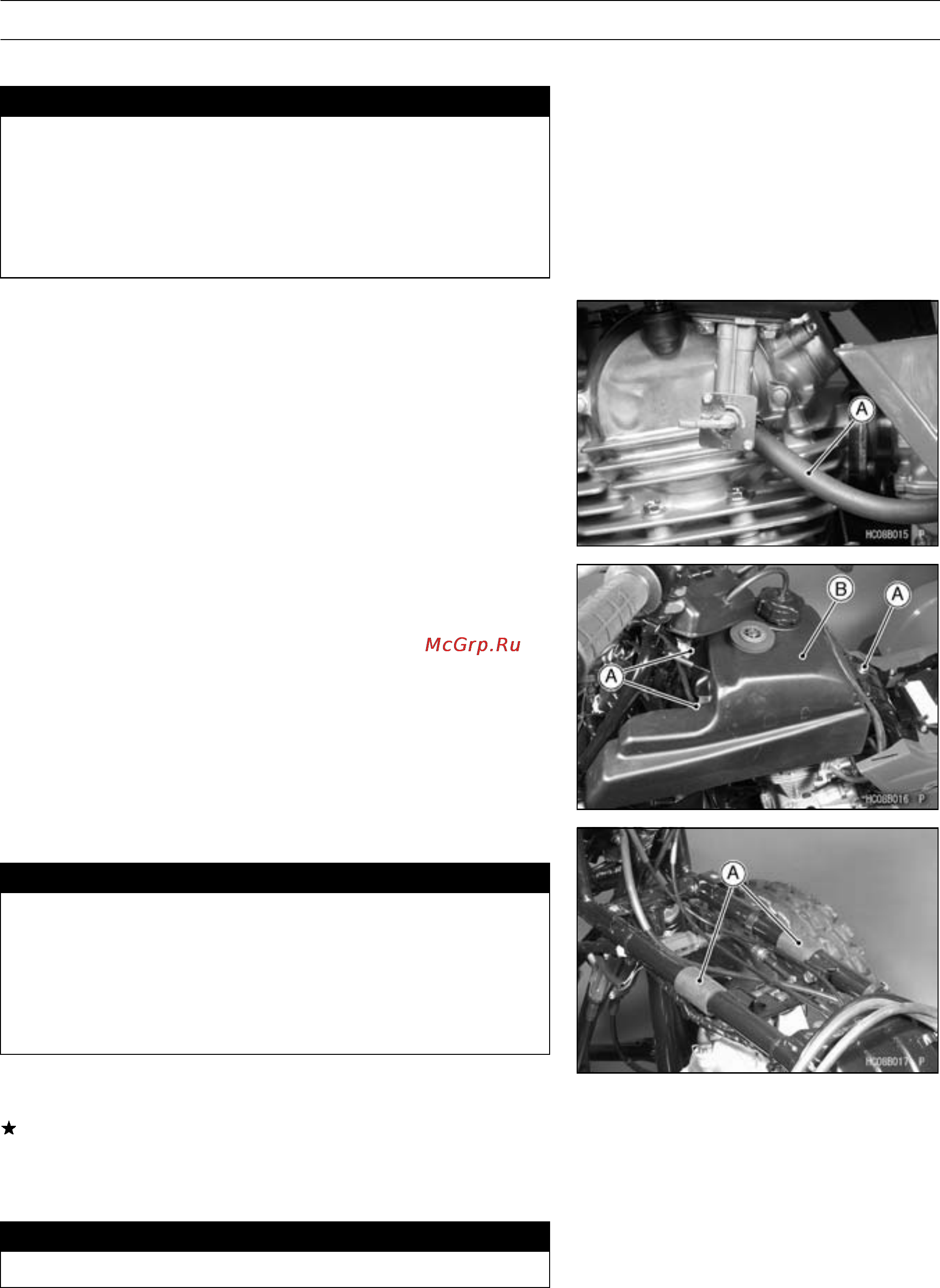

FUEL SYSTEM 3-19
Fuel Tank
Fuel Tank Removal
WARNING
Gasoline is extremely flammable and can be ex-
plosive under certain conditions. Turn the ignition
switch OFF. Do not smoke. Make sure the area is
well ventilated and free from any source of flame
or sparks; this includes any appliance with a pilot
light.
•
Remove:
Front Fender (see Frame chapter)
•
Turn the fuel tap to the OFF position.
•
Remove:
Fuel Hose [A]
•
Remove:
Bolts [A]
Fuel Tank [B]
Fuel Tank Installation
WARNING
Gasoline is extremely flammable and can be ex-
plosive under certain conditions. Turn the ignition
switch OFF. Do not smoke. Make sure the area is
well ventilated and free from any source of flame
or sparks; this includes any appliance with a pilot
light.
•
Check the rubber dampers [A] on the frame top-tubes as
shown.
If the dampers are damaged or deteriorated, replace
them.
•
Be sure the fuel hose is clamped to the fuel tap to prevent
leakage.
WARNING
Fuel spilled from the fuel tap is hazardous.
