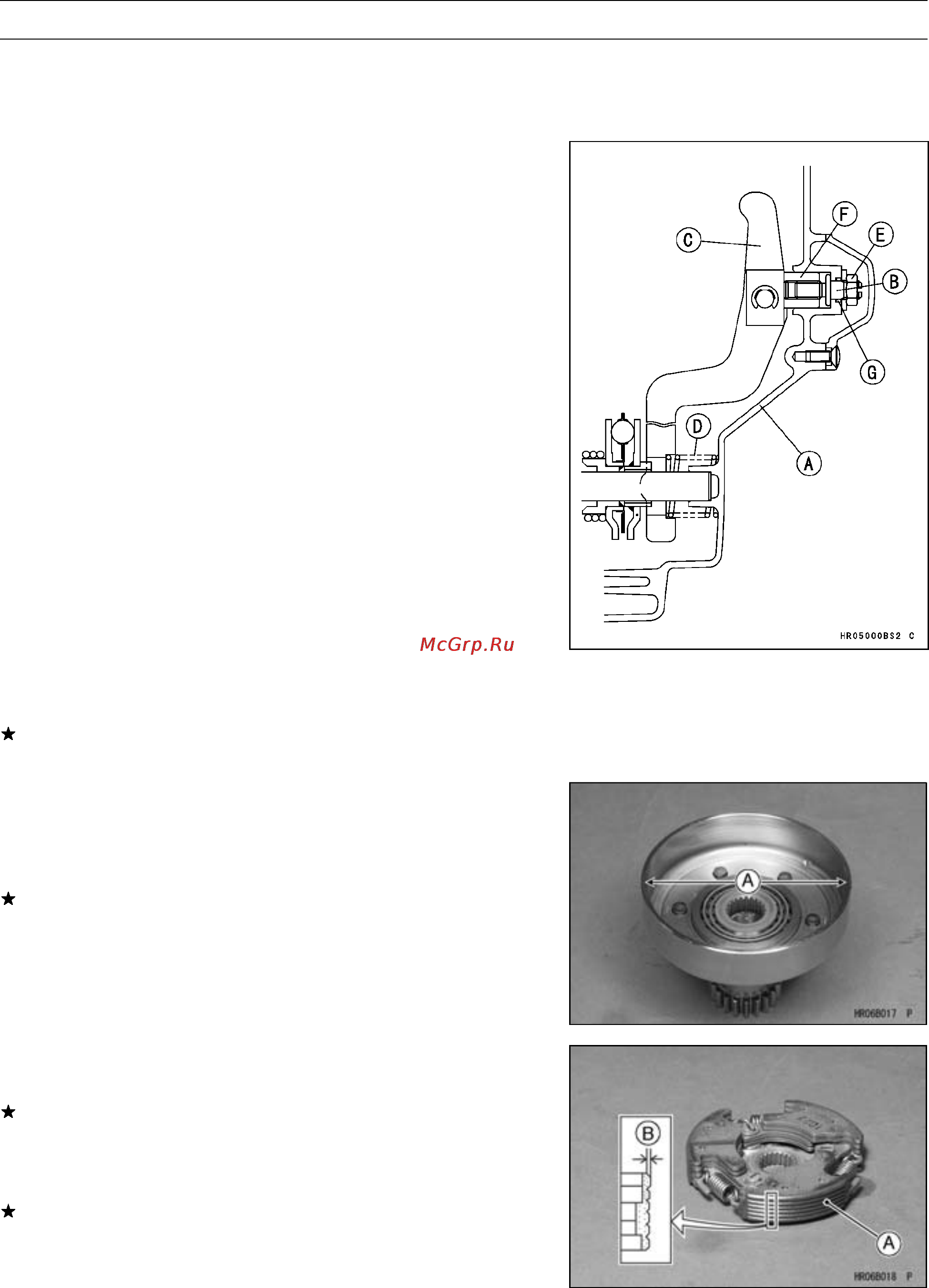

5-10 ENGINE RIGHT SIDE
Clutches
Clutch Adjustment
•
Refer to the Clutch Adjustment in the Periodic Mainte-
nance chapter.
Clutch Release Removal
•
Remove:
Right Engine Cover [A]
Adjusting Screw [B]
•
Pull the clutch release lever [C], and spring [D] out of right
engine cover.
Locknut [E]
Holder [F]
O-ring [G]
Clutch Release Wear
•
Visually inspect the O-ring at the clutch adjusting screw.
If O-ring is damaged, deteriorated, compressed, or hard-
ened, replace it.
Primary Clutch Housing Wear
•
Measure the inside diameter [A] of the clutch housing
where the shoes wear against it.
○
Use calipers and measure at several points as shown.
If any measurement is greater than the service limit, re-
place the clutch housing.
Primary Clutch Housing Inside Diameter
Standard: 116.0 ∼ 116.2 mm (4.567 ∼ 4.575 in.)
Service Limit: 116.5 mm (4.587 in.)
Primary Clutch S hoe Lining Wear
•
Visually inspect the primary clutch shoe lining [A].
If any of the linings are damaged, replace the shoes.
•
Measure the shoe groove depth [B].
○
Use a depth gauge, and measure at several points as
shown.
If any measurement is less than the service limit, replace
all shoes as a set.
PrimaryClutchShoeGrooveDepth
Standard: 1.0 ∼ 1.3 mm (0.04 ∼ 0.05 in.)
Service Limit: 0.5 mm (0.02 in.)
