16-44 ELECTRICAL SYSTEM

Lighting System

○

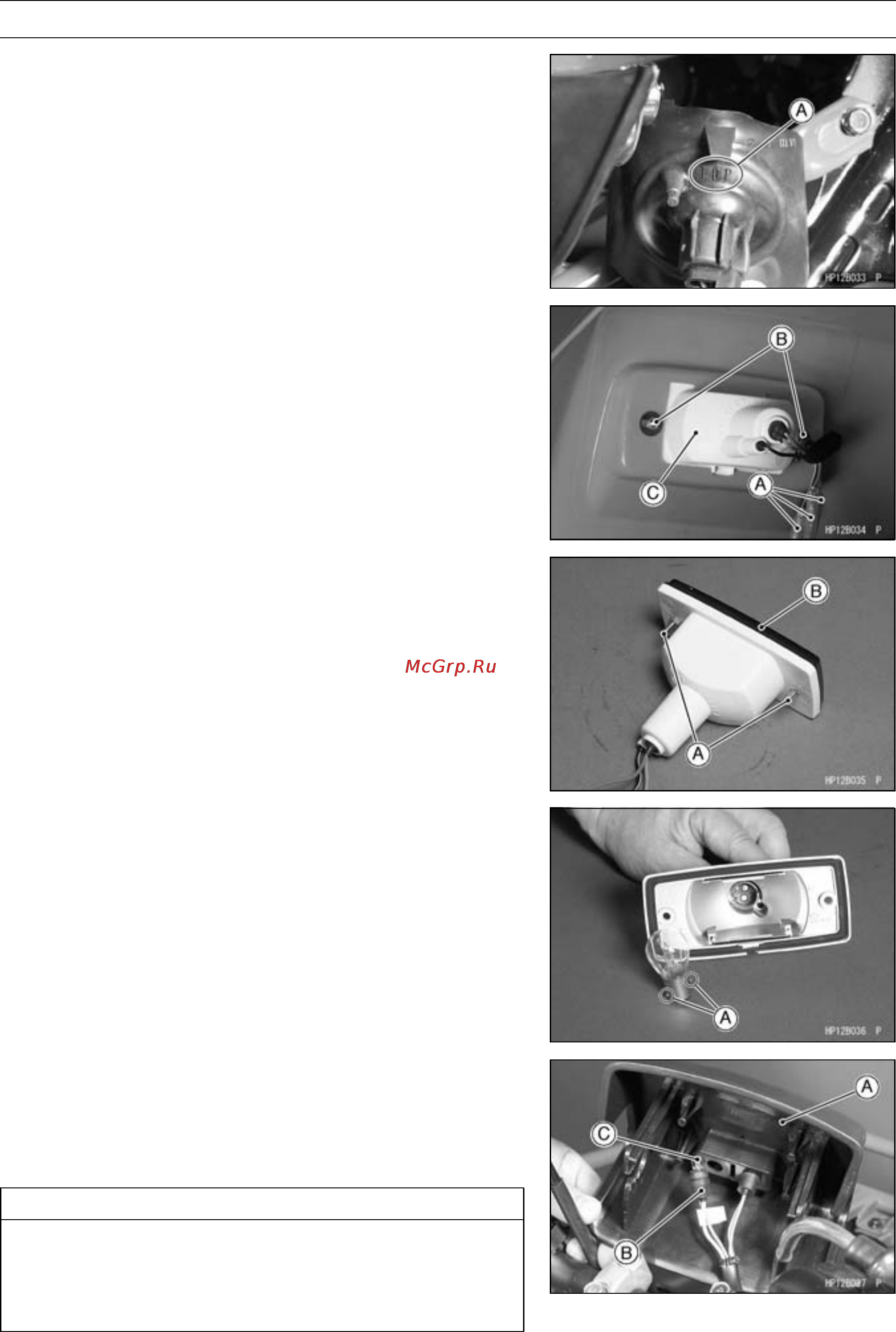

Face the TOP mark [A] on the dust cover upward and fit

it completely.

Taillight Bulb Replacement

•

Remove:

Taillight Lead Connectors [A]

Taillight Housing Holder Nuts [B] and Washers

Taillight Assembly [C]

•

Remove:

Taillight Lens Mounting Screws [A] and Nuts

Taillight Lens [B]

•

Push the bulb in, turn it counterclockwise, and pull it out.

•

Be sure the socket is clean.

•

Insert the new bulb by aligning the pins [A] with the

grooves in the walls of the sprocket.

•

Push the bulb in, turn it clockwise, and release it. It should

lock in position.

Neutral and Reverse Indicato r Light Bulb Replacement

•

Remove:

Handlebar Cover [A]

•

Remove the socket [B] with the bulb attached.

•

Pull the bulb [C] out of the socket.

CAUTION

Do not turn the bulb to prevent damage to the bulb.

The indicator bulbs are of a wedge-base type.

Do not use the bulb rated for greater wattage than

the specified value.
