Kawasaki WORKHORSE 250 (2003) [200/322] 22 final drive
![Kawasaki WORKHORSE 250 (2003) [200/322] 22 final drive](/views2/1121215/page200/bgc8.png)

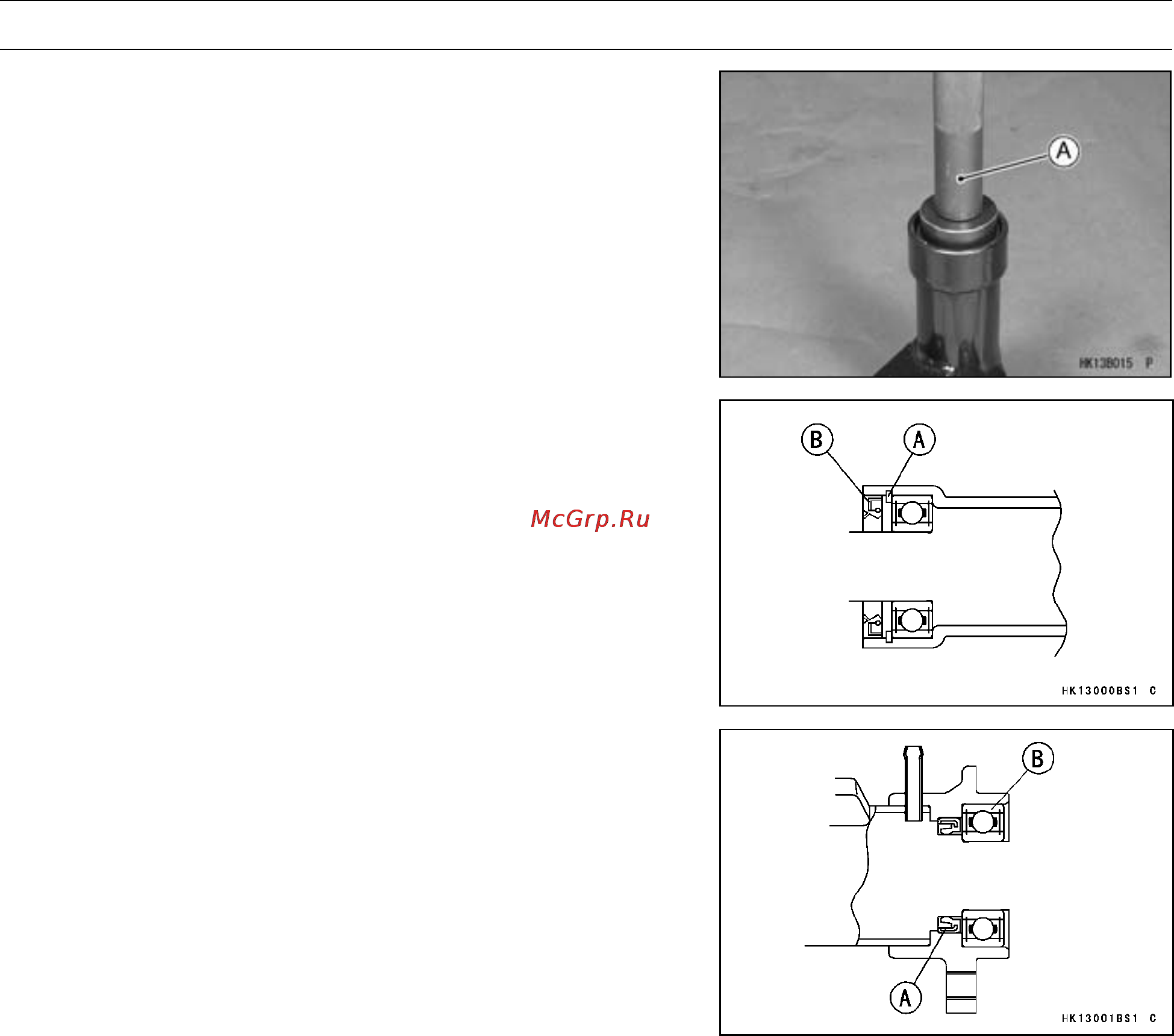

11-22 FINAL DRIVE
Rear Axle
Axle Shaft Pipe Assembly
Left Side
•
Press and insert the ball bearing until it is bottomed.
Special Tool - Bearing Driver Set [A]: 57001-1129
•
Install:
Circlip [A]
Special Tool - Inside Circlip Pliers: 57001-143
•
Apply molybdenum disulfide grease to the oil seal lips.
•
Install the oil seal [B] so that the seal surface is flush with
the end of the pipe housing.
Special Tool - Bearing Driver Set: 57001-1129
Right Side
•
Apply molybdenum disulfide grease to the oil seal lips.
•
Press and insert the oil seal [A] and ball bearing [B] until
they are bottomed.
Special Tool - Bearing Driver Set: 57001-1129
