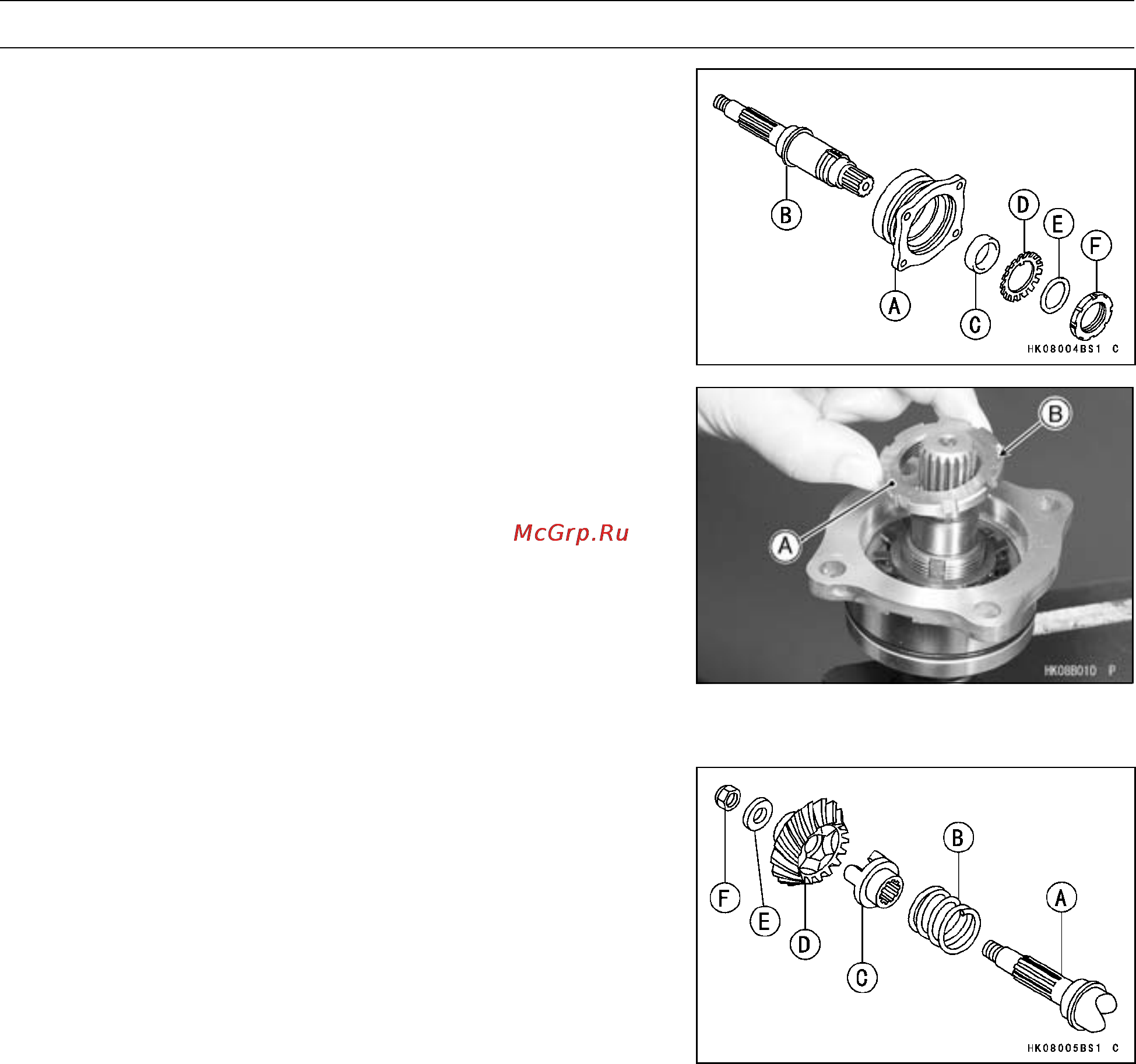

11-10 FINAL DRIVE
Output Bevel Gear Case
•
Install:
Bearing Housing [A]
Driven Gear Shaft [B]
Collar [C]
Toothed Washer [D]
Washer [E]
Driven Gear Shaft Nut [F]
•
Apply a non-permanent locking agent:
Driven Gear Shaft Nut [A]
•
Install the driven gear shaft nut so that the flat side [B]
faces upward.
•
Tighten:
Torque - Driven Gear Shaft Nut: 147 N·m (15 kgf·m, 108
ft·lb)
Special Tools - Bevel Gear Holder: 57001-1193
Socket Wrench: 57001-1354
•
Bend a toothed washer tab i nto the groove of the driven
gear shaft nut.
•
Apply molybdenum disulfide oil to the spline cam damper
and driven gear shaft [A].
•
Install:
Spring [B]
Cam Damper [C]
Driven Gear [D]
Washer [E]
Cam Damper Mounting Nut [F]
•
Apply molybdenum disulfide oil to the threads of cam
damper mounting nut.
•
Tighten:
Torque - Cam Damper Mounting Nut: 78 N·m (8.0 kgf·m, 58
ft·lb)
Special Tool - Bevel Gear Holder: 57001-1193
•
Be sure to check and adjust the bevel gear backlash and
tooth contact, when any of the parts that influence these
items are replaced (see Output Bevel Gear Adjustment).
