ELECTRICAL SYSTEM 16-7

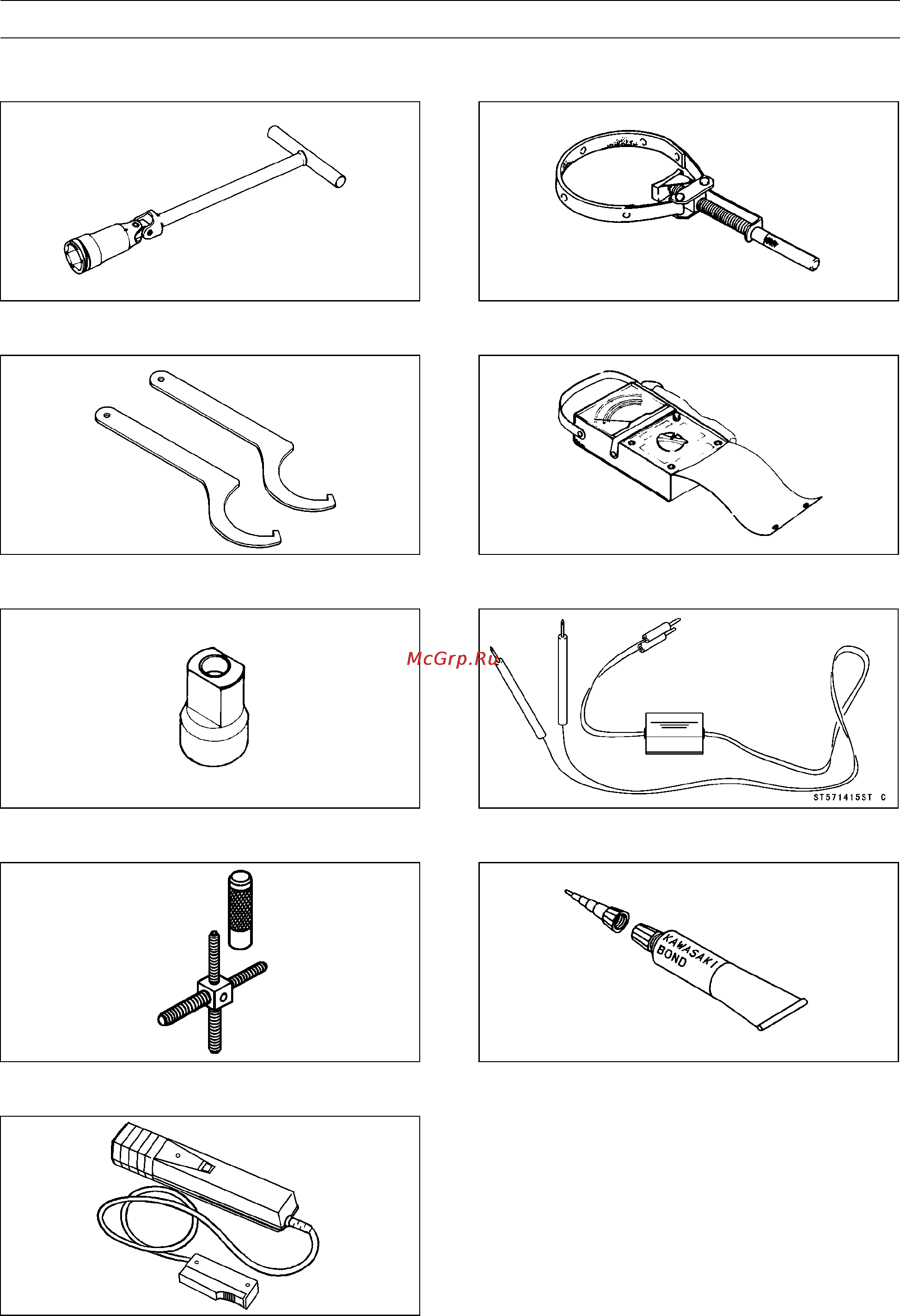

Special Tools and Sealant
Spark Plug Wrench, Hex 18:
57001-1024
Hook Wrench R37.5, R42:
57001-1101
Flywheel Puller, M30 × 1.5:
57001-1191
Rotor Puller, M16/M18/M20/M22 × 1.5:
57001-1216
Timing Light:
57001-1241
Flywheel Holder:
57001-1313
Hand Tester:
57001-1394
Peak Volt Adapter:
57001-1415
Kawasaki Bond (Silicone Sealant):
56019-120
