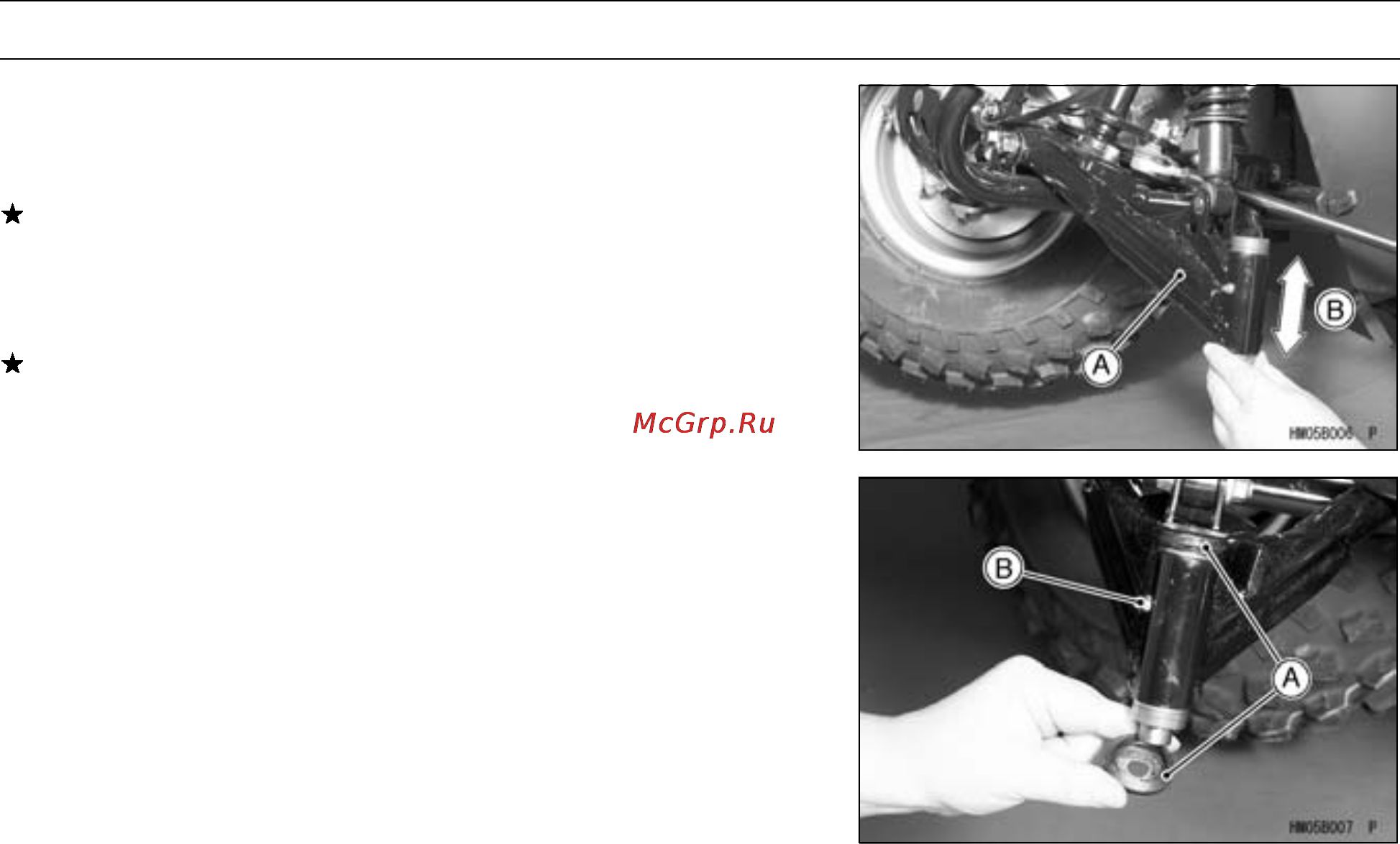

SUSPENSION 13-7
Suspension Arms
Suspension Arm Inspection
•
Move the suspension arm [A] up and down [B] to check
for abnormal friction.
If abnormal is felt, the rubber bushings may be damaged.
Remove the suspension arm to check for rubber bushing
damage.
•
Check the rubber bushings in the pivots.
Replace any bushings that are worn, cracked, hardened,
or otherwise damaged.
Front Suspension Arm Lubrication
•
Fill inside of oil seals [A] with grease.
•
Force molybdenum disulfide grease into the nipple [B],
and wipe off any excess grease (see Steering Knuckle
Pivot Lubrication section in Steering chapter).
