12-10 BRAKES

Brake Drum and Panel

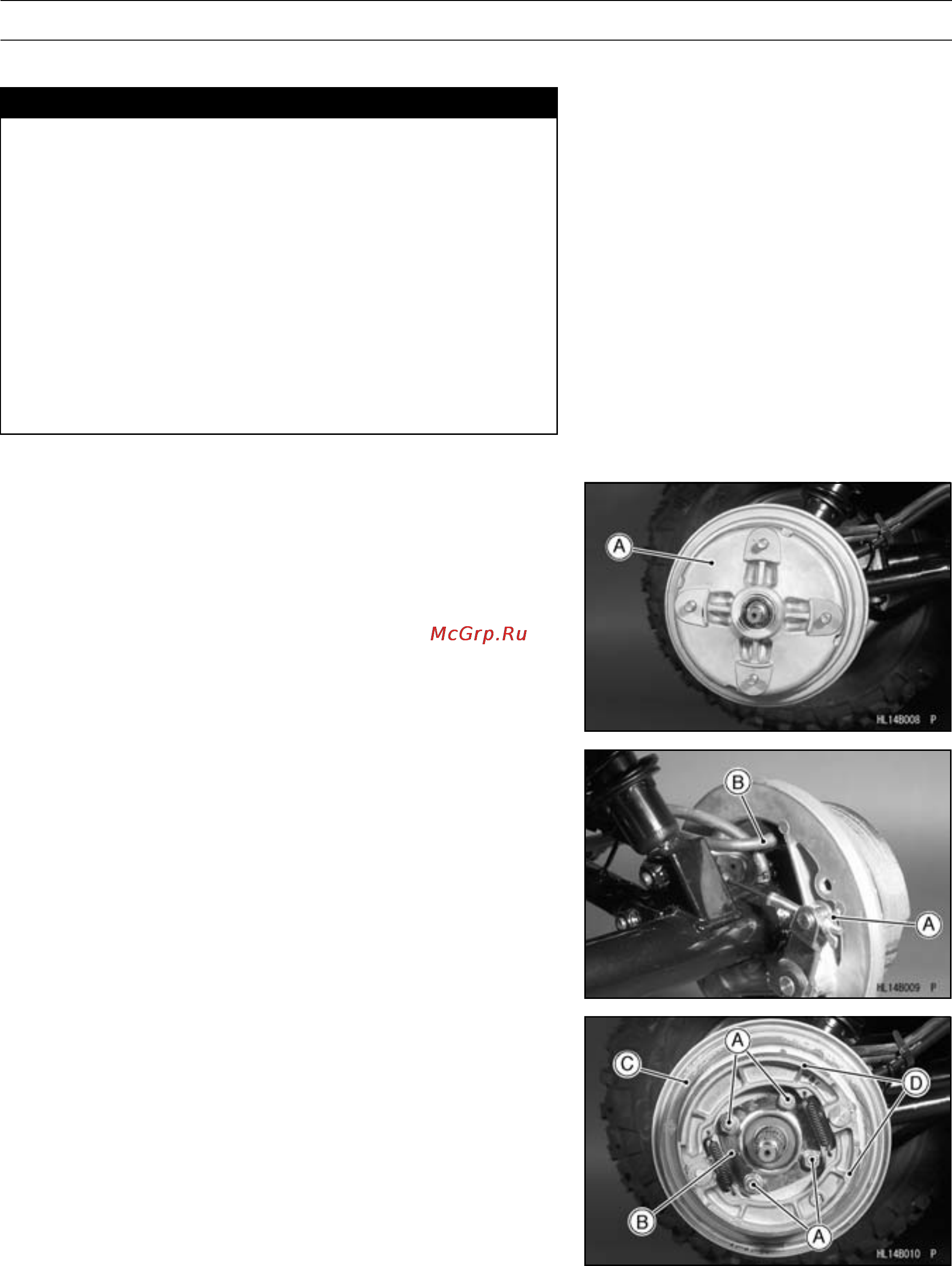

Rear Brake Panel Removal/Disa ssembly

WARNING

Brake linings contain asbestos fiber. Inhalation of

asbestos may cause serious scarring of the lungs

and may promote other internal injury and illness,

including cancer. Observe the following precau-

tions when handling brake linings:

1. Never blow brake lining dust with compressed

air.

2. If any components are to be cleaned, wash them

with detergent, then immediately discard the clean-

ing solution and wash your hands.

3. Do not grind any brake lining material unless a

ventilation hood is available and properly used.

•

Loosen the right rear axle nut.

•

Remove:

Right Rear Wheel (see Wheels/Tires chapter)

Axle Nut

Brake Drum [A]

•

Remove:

Brake Adjuster [A]

Breather Hose [B]

•

Remove:

Brake Panel Bolts [A] and Washers

Position Plate [B]

Brake Panel [C]

Brake Shoes [D]
