BRAKES 12-15
Brake Maintenance
Brake Lubrication

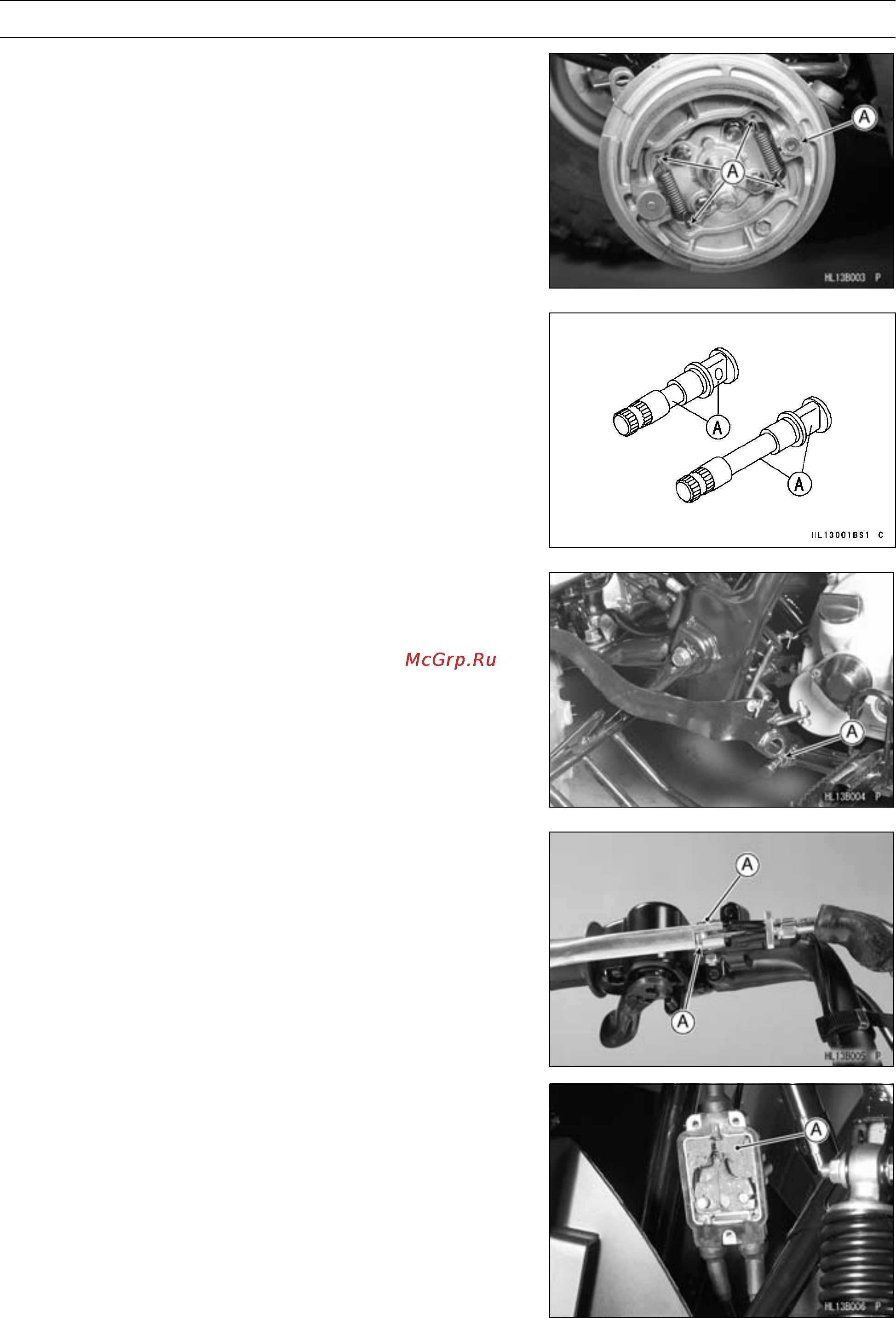

Whenever the brake is disassembled, and in accordance
with the Periodic Maintenance Chart, perform the following.
•
Clean all old grease out of the brake parts with a cloth.
NOTE
○
Do not get any grease on the brake shoe linings, and
wipe off any excess grease so that it does not get on
the linings or drum after brake assembly.
•
Apply high-temperature grease [A] to the following:
Brake Shoe Anchor Pin
Spring Ends
Cam Surfaces
Brake Cam Groove
Brake Pedal Pivot
Front and Parking Brake Lever Pivot
•
Fill box with grease (Amoco rykon premium grease No. 2
EP Green) [A] after cables are installed.
