FINAL DRIVE 11-17
Propeller Shaft
Propeller Shaft Removal
•
Support the vehicle on a stand or the jack so that the rear
wheels are off the ground.
Special Tool - Jack: 57001-1238
•

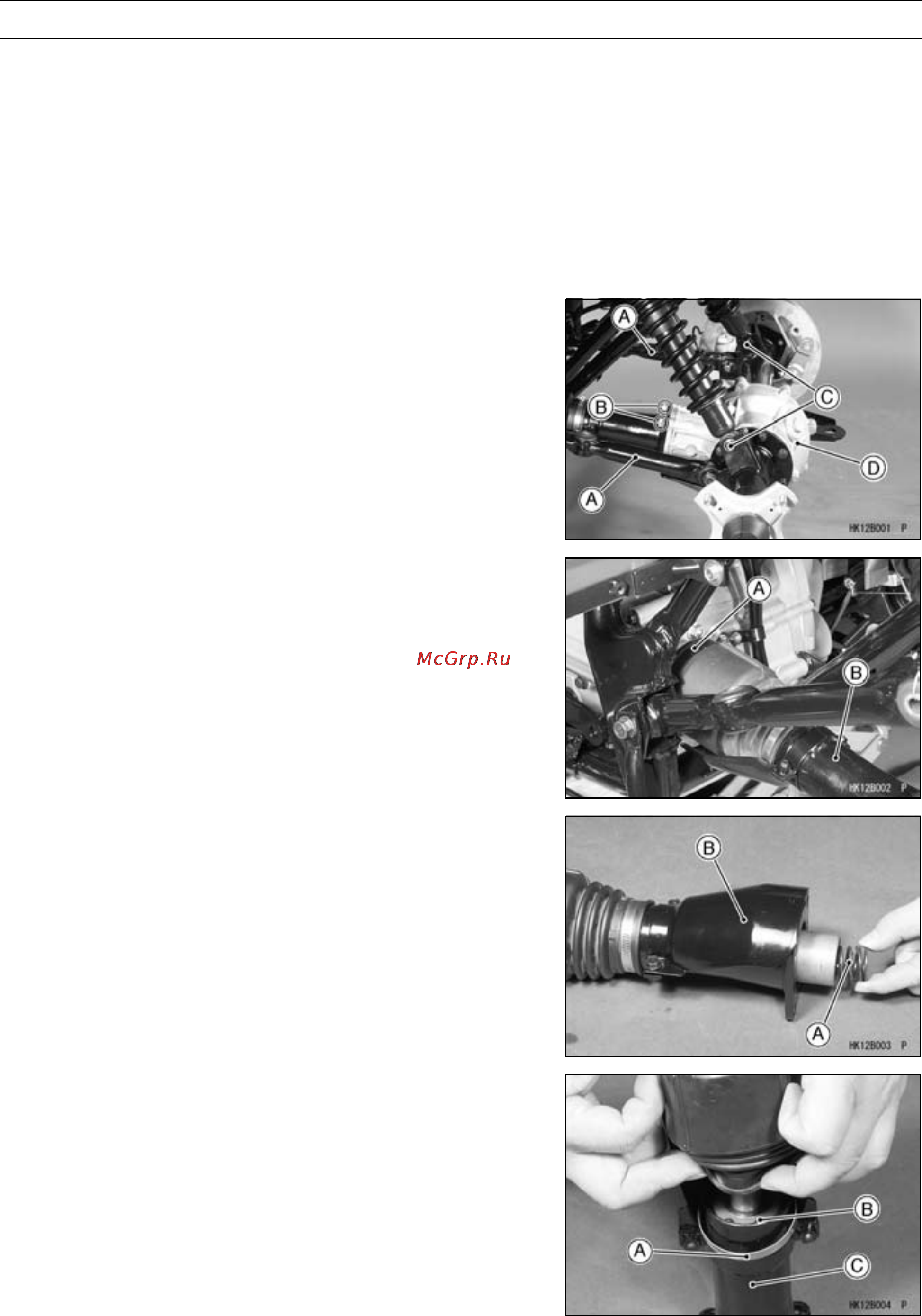

Loosen the propeller shaft housing mounting nuts.
•
Remove:
Rear Wheels (see Wheels/Tires chapter)
Center Arm (see Suspension chapter)
•
Support the final gear case on a stand or jack.
•
Remove:
Rear Suspension Arms [A]
Propeller Shaft Housing Mounting Nuts [B]
Rear Shock Absorber Lower Bolts [C]
•
Move back the final gear case [D] and rear axle assembly.
•
Loosen the clamp [A] and remove the propeller shaft
housing [B].
•
Remove:
Spring [A]
Cover [B]
•
Remove:
Clamp [A]
Circlip [B]
Special Tool - Inside Circlip Pliers: 57001-143
•
Remove the propeller shaft from the propeller shaft hous-
ing [C].
