7-10 ENGINE LUBRICATION SYSTEM

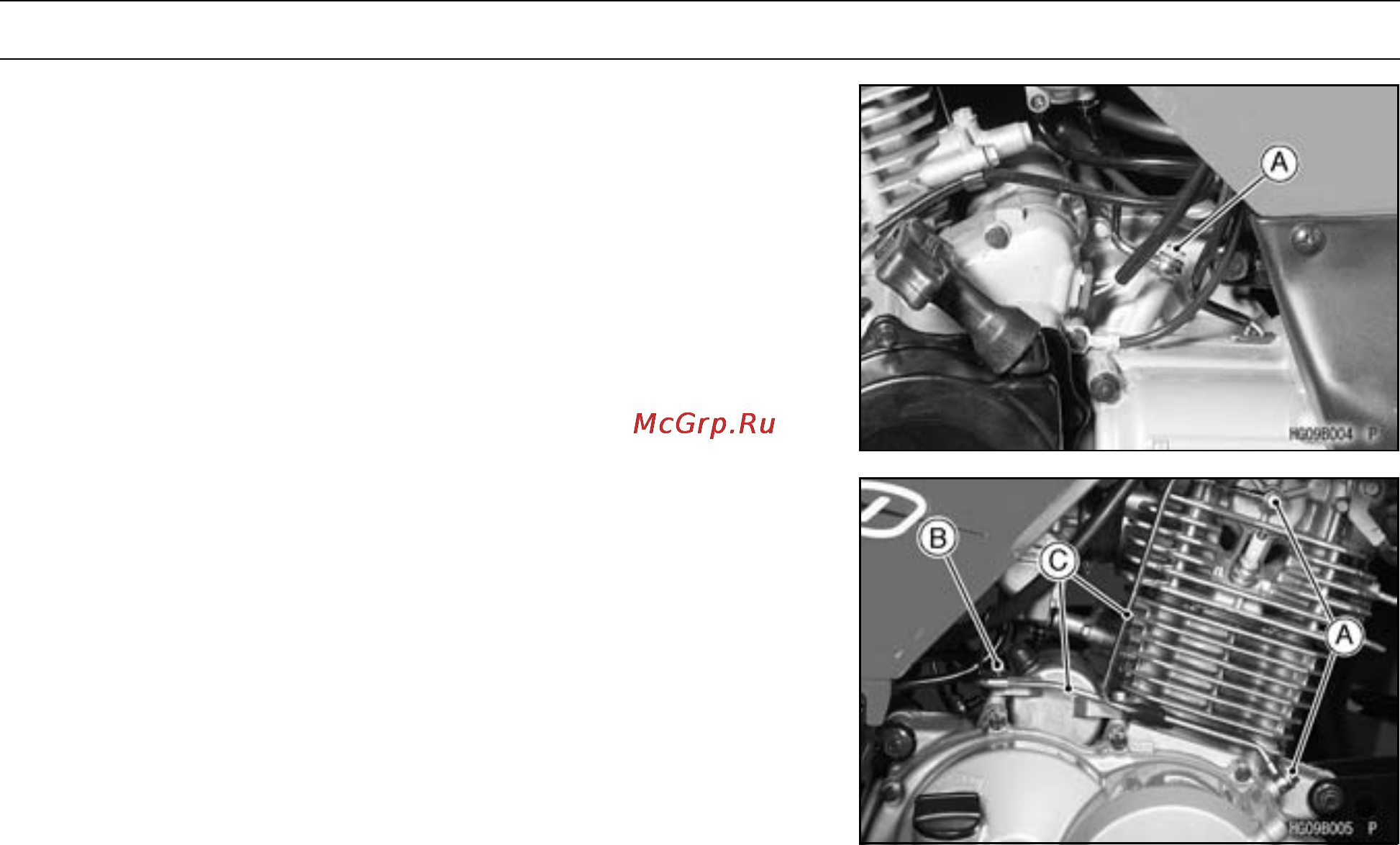

Oil Pipe
Oil Pipe Removal
•
Remove:
Oil Pipe Banjo Bolt [A] and Washers
•
Remove:
Oil Pipe Banjo Bolts [A] and Washers
Starter Motor Mounting Bolt [B]
Oil Pipes [C]
Oil Pipe Installation
•
Tighten:
Torque - Oil Pipe Banjo Bolts: 15 N·m (1.5 kgf·m, 11 ft·lb)
Starter Motor Mounting Bolt: 8.8 N·m (0.9 kgf·m,
78 in·lb)
