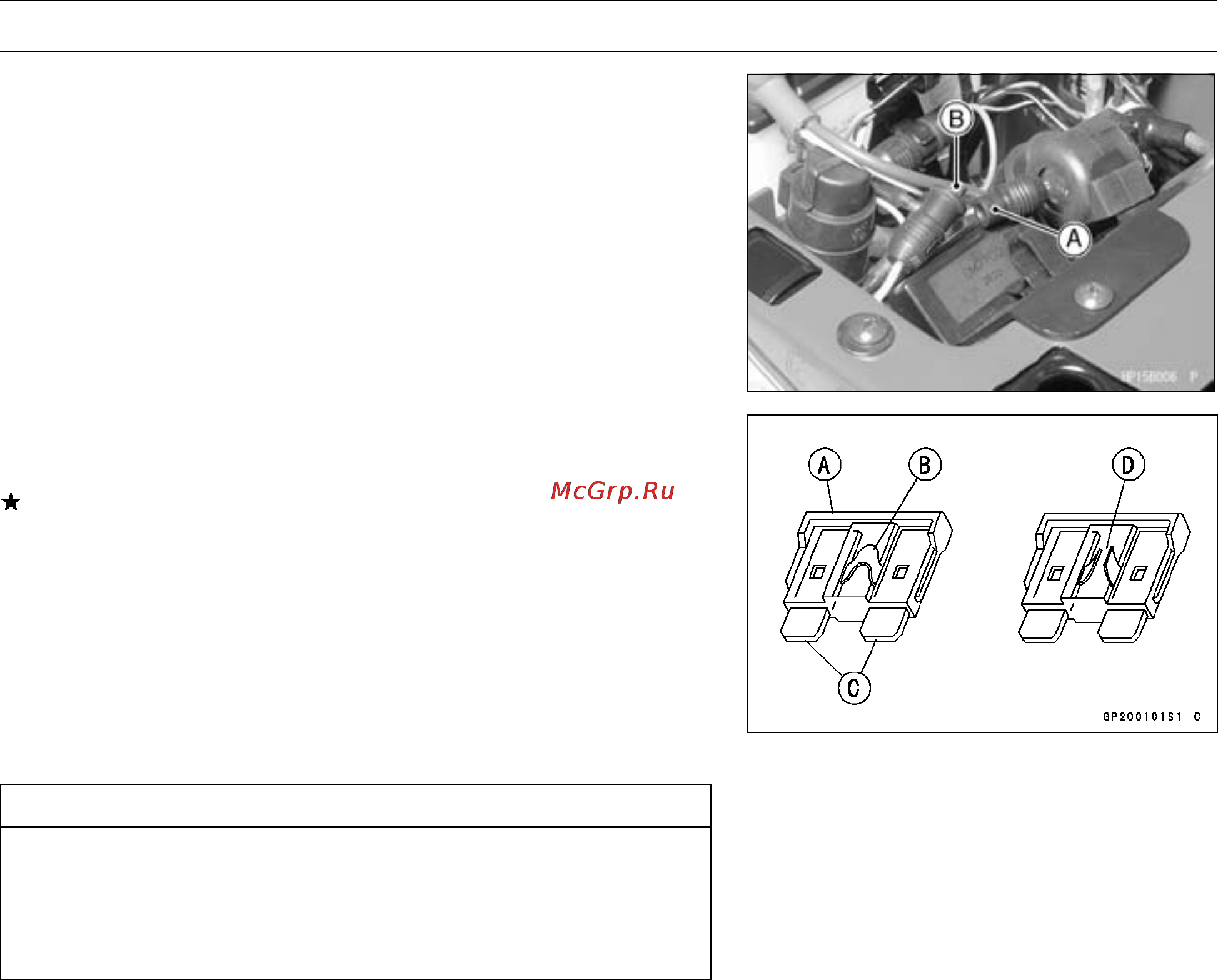

ELECTRICAL SYSTEM 16-47
Fuses
20 A Main Fuse Removal
•
Remove:
Seat (see Frame chapter)
Fuse Connector [A]
•
Pull out the main fuse [B] from the starter relay.
Fuse Inspection
•
Inspect the fuse element.
If it is blown out, replace the fuse. Before replacing a
blown fuse, always check the amperage in the affected
circuit. If the amperage is equal to or greater than the
fuse rating, check the wiring and related components for
a short circuit.
Housing [A]
Fuse Element [B]
Terminals [C]
Blown Element [D]
CAUTION
When replacing a fuse, be sure the new fuse
matches the specified fuse rating for that circuit.
Installation of a fuse with a higher rating may cause
damage to wiring and components.
