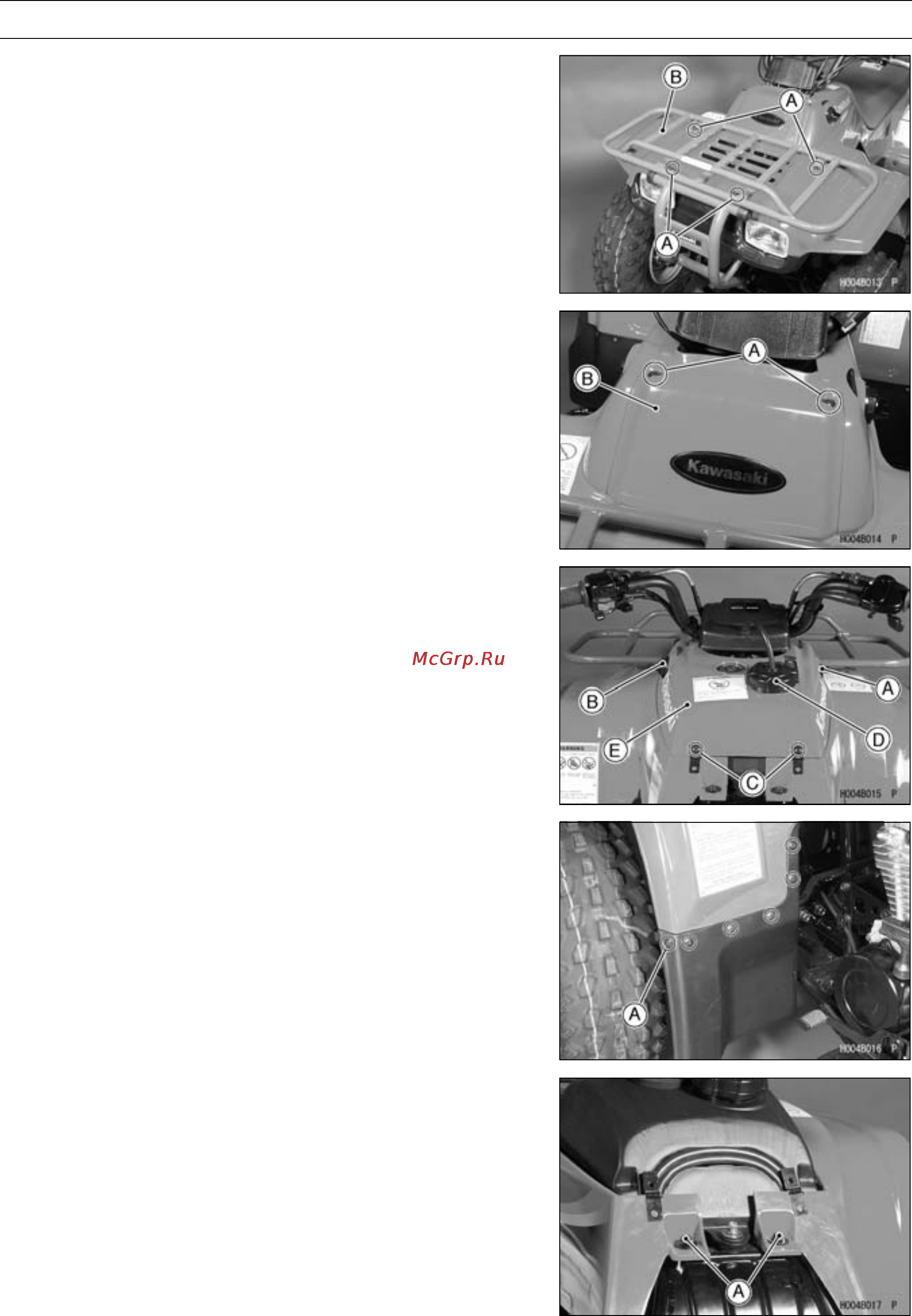

FRAME 15-7
Front and Rear Fenders
Front Fender Removal
•
Remove:
Front Carrier Bolts [A]
Front Carrier [B]
•
Remove:
Front Cover Screws [A]
Front Cover [B]
•
Remove:
Ignition Switch [A]
Reverse Knob [B]
Fuel Tank Cover Screws [C]
Fuel Tank Cap [D]
Fuel Tank Cover [E]
•
Install the fuel tank cap at once.
•
Remove:
Front Flap Screws [A] (Left and Right Sides)
•
Remove:
Front Fender Bolts [A] and Collars
