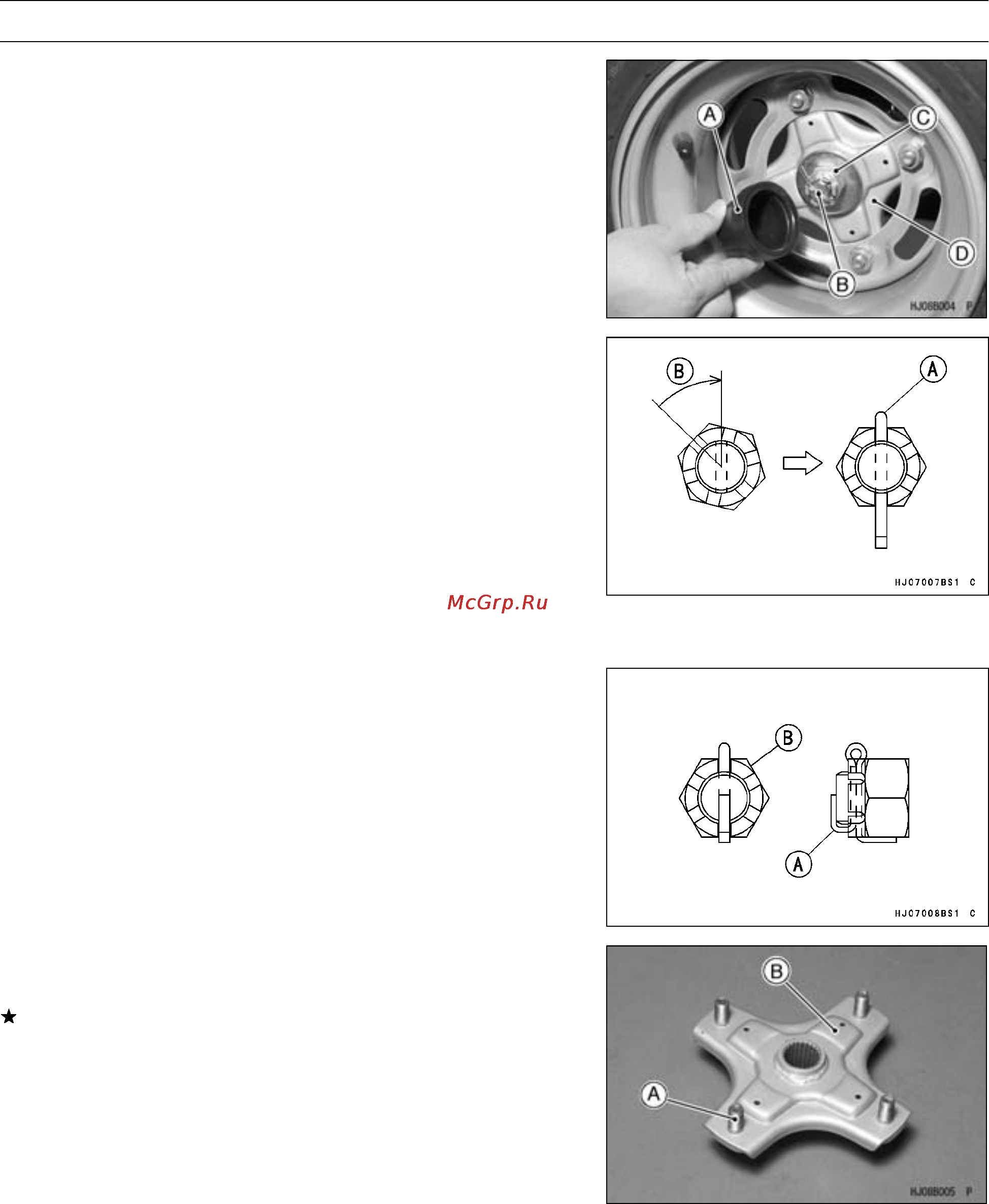

WHEELS/TIRES 10-13
Rear Hub
Rear Left Hub Removal
•
Remove:
Cap [A]
Cotter Pin [B]
•
Loosen the axle nut [C].
•
Remove:
Wheel (see Wheel Removal)
Axle Nut
Washer
Rear Left Hub [D]
Rear Left Hub Installation
•
Tighten:
Torque - Rear Axle Nuts: 147 N·m (15 kgf·m, 108 ft·lb)
•
Insert a new cotter pin [A].
NOTE
○
When inserting the cotter pin, if the slots in the nut do
not align with the cotter pin hole in the axle shaft, tighten
the nut clockwise [B] up to next alignment.
○
It should be within 30 degree.
○
Loosen once and tighten again when the slot goes past
the nearest hole.
•
Bend the cotter pin [A] over the nut [B].
Rear Left Hub Disassembly/Assembly
•
Do not press the hub bolts [A] out.
If any hub bolt is damaged, replace the hub [B] and bolts
as a unit.
