16-46 ELECTRICAL SYSTEM
Switches
Brake Light Switch Adjustment
•
Refer to the Brake Light Switch Adjustment in the Periodic
Maintenance chapter.
Switch Inspection
•
Using the hand tester, check to see that only the con-
nections shown in the table have continuity (about zero
ohms).
○
For the handlebar switches, and ignition switch refer to
tables in the Wiring Diagram.
If the switch has an open or short, repair or replace it with
a new one.

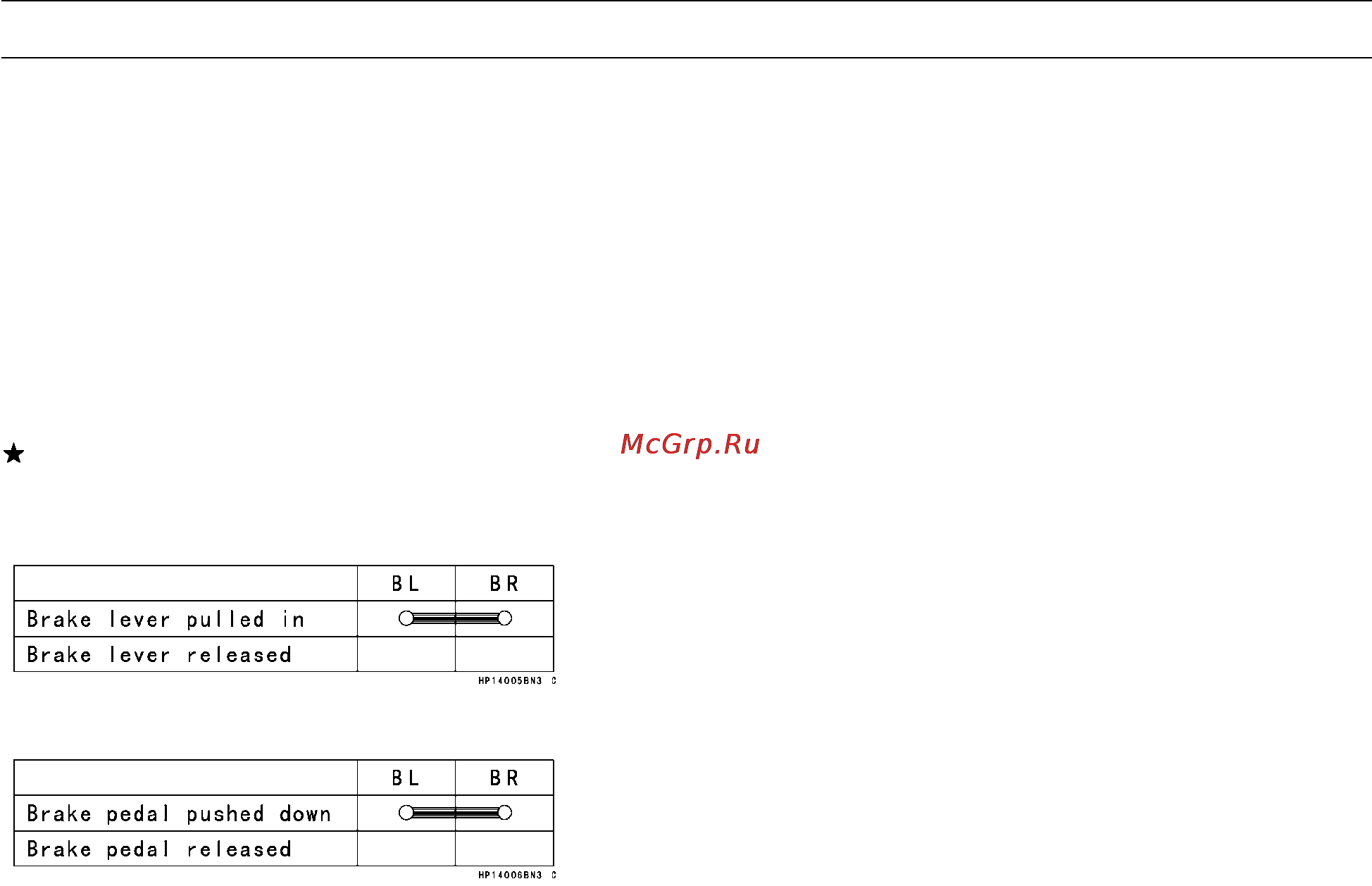

Front Brake Light Switch Connections
Rear Brake Light Switch Connections
