ELECTRICAL SYSTEM 16-43
Lighting System

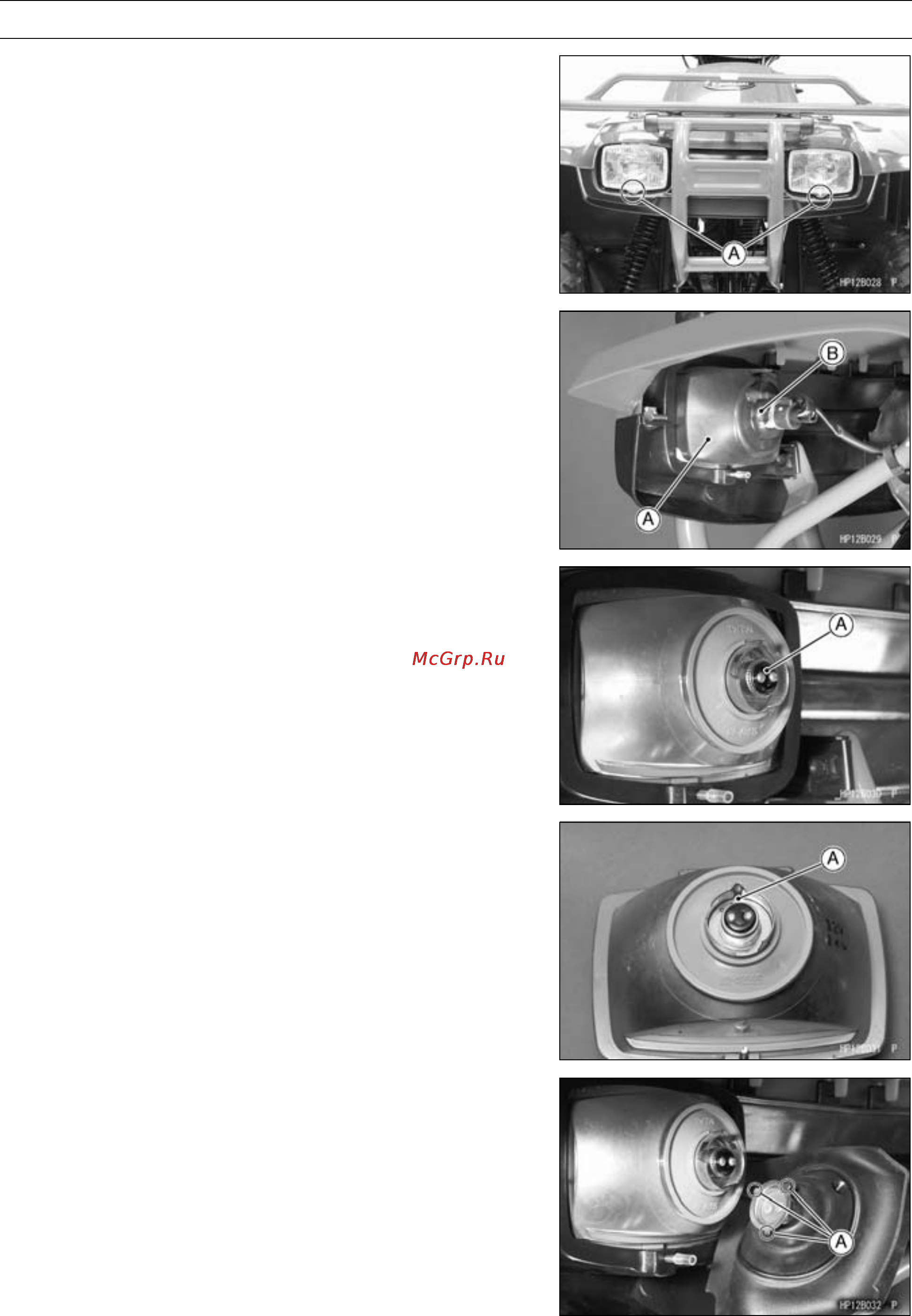

Headlight Beam Vertical Adjustment
•
Turn the adjusting screws [A] on each headlight rim in or
out to adjust the headlight vertically.
NOTE
○
On high beam, the brightest point should be slightly be-
low horizontal with the vehicle on its wheels and the
rider seated. Adjust both headlights to the same an-
gle.
Headlight Bulb Replace ment
•
Slide back the dust cover [A].
•
Push and turn the bulb holder [B] counterclockwise and
remove the bulb holder from the headlight unit.
•
Remove:
Bulb [A]
•
Install the new bulb by aligning the tang [A] with the notch
in the headlight unit.
•
Fit the tangs [A] to the notches in the headlight unit, and
then push and turn the bulb holder clockwise.
