SUSPENSION 13-5

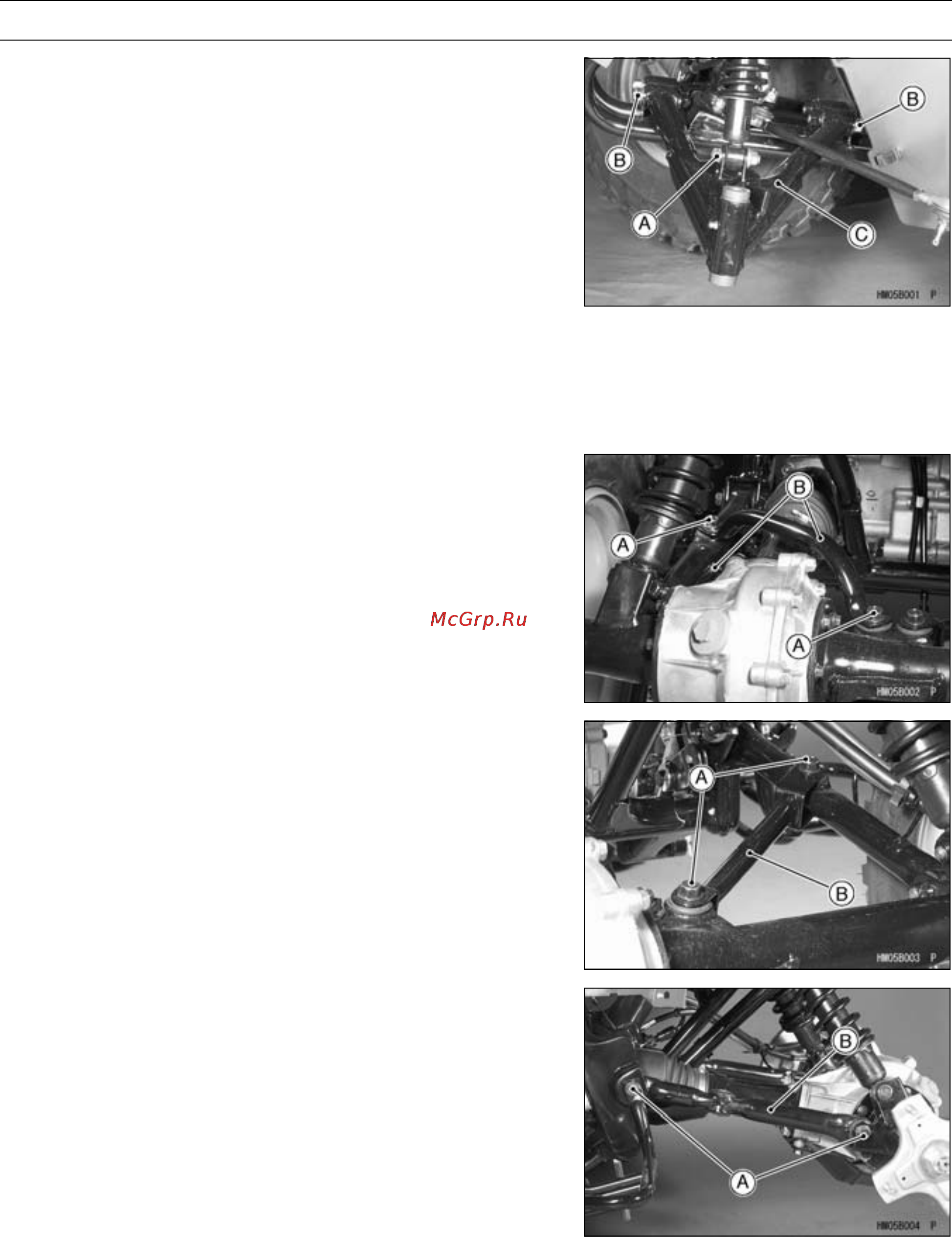

Suspension Arms
Front Suspension Arm Removal
•
Remove:
Front Wheel (see Wheels/Tires chapter)
Front Brake Panel Assembly (see Brakes chapter)
Steering Knuckle J oint (see Steering chapter)
Lower Front Shock Absorber mounting Bolt [A]
Suspension Arm Pivot Bolts [B]
Front Suspension Arm [C]
Front Suspension Arm Installation
•
Tighten:
Torque - Front Suspension Arm Pivot Bolts: 88 N·m (9.0
kgf·m, 65 ft·lb)
Rear Suspension Arm Removal
•
Remove:
Suspension Arm Pivot Bolts [A]
Center Arms [B] (Left Side)
•
Remove:
Suspension Arm Pivot Bolts [A]
Center Arm [B] (Right Side)
•
Remove:
Rear Wheels (see Wheels/Tires chapter)
Rear Flaps (see Frame chapter)
Suspension Arm Pivot Bolts [A]
Left Arm [B]
