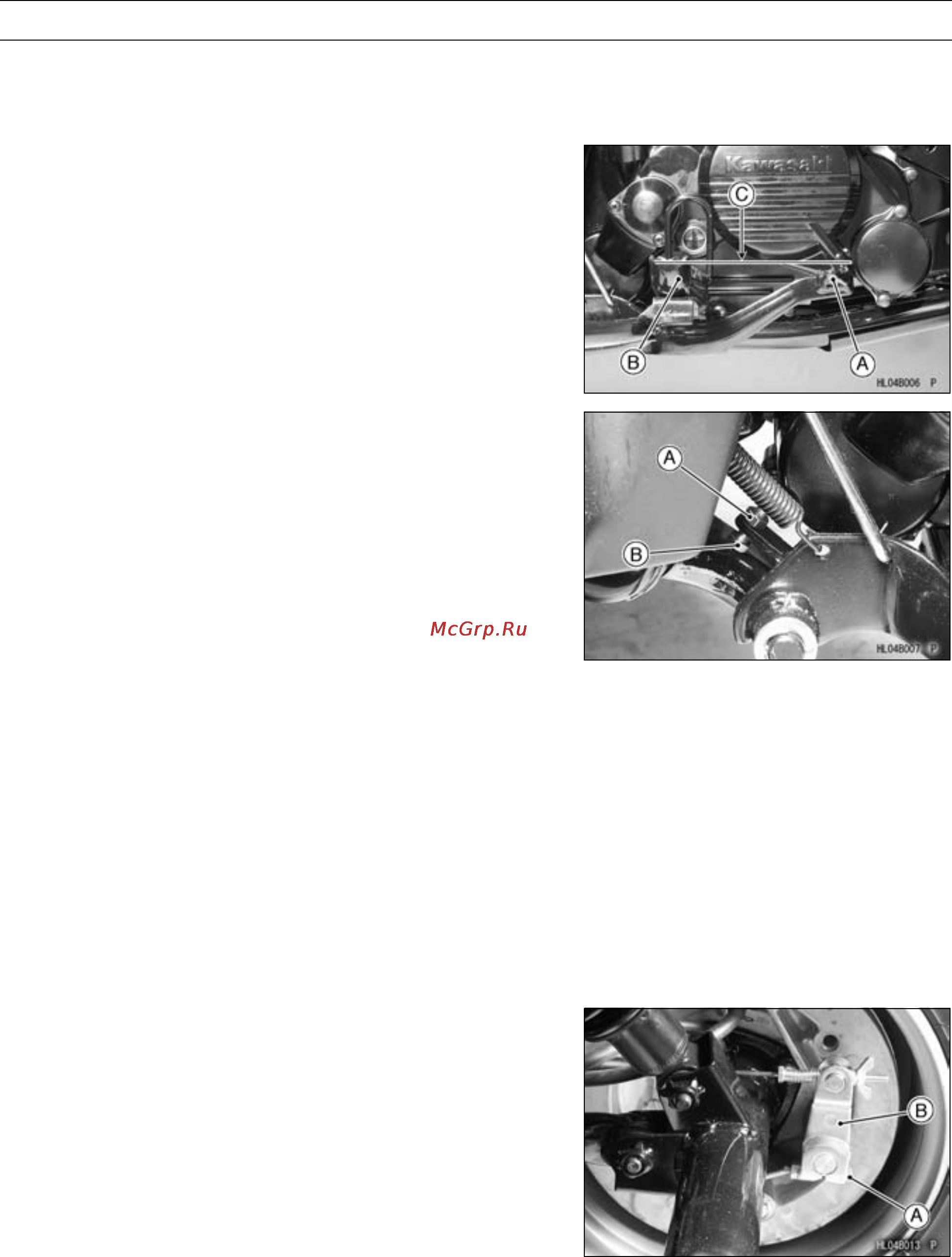

BRAKES 12-5
Brake Adjustment
Front Brake Adjustment
•
Refer to the Front Brake Adjustment in the Periodic Main-
tenance chapter.
Brake Pedal Position Inspection
•
Measure from the top center of the brake pedal [A] in its
rest position to the upper surface of the right footpeg [B].
The brake pedal should be level [C] with the upper surface
of the right footpeg.
Brake Pedal Position:
0mm(0in.)
Brake Pedal Position Adjustment
•
To adjust the pedal position, loosen the locknut [A], turn
the adjusting bolt [B], and then tighten the l ocknut. Now
adjust the brake p edal free play.
•
After adjusting the pedal position, check the operation of
the rear brake light switch (see Electrical System chap-
ter). Then adjust the brake pedal free play.
Rear (Parking) Brake L ever Free Play Inspection
•
Refer to the Rear (Parking) Brake Lever Free Play Inspec-
tion in the Periodic Maintenance chapter.
Brake Pedal Free Play Inspection
•
Refer to the Brake Pedal Free Play Inspection in the Pe-
riodic Maintenance chapter.
Rear (Parking) Brake Lever and Brake Pedal Free
Play Adjustment
•
Refer to the Rear (Parking) Brake Lever and Brake Pedal
Free Play Adjustment in the Periodic Maintenance chap-
ter.
Cam Lever Angle Adjustment (Front and Rear)
•
Remove:
Cam Lever Bolt [A]
Cam Lever [B]
