16-24 ELECTRICAL SYSTEM
Charging System
Regulator Circuit Test-2nd Step:
•

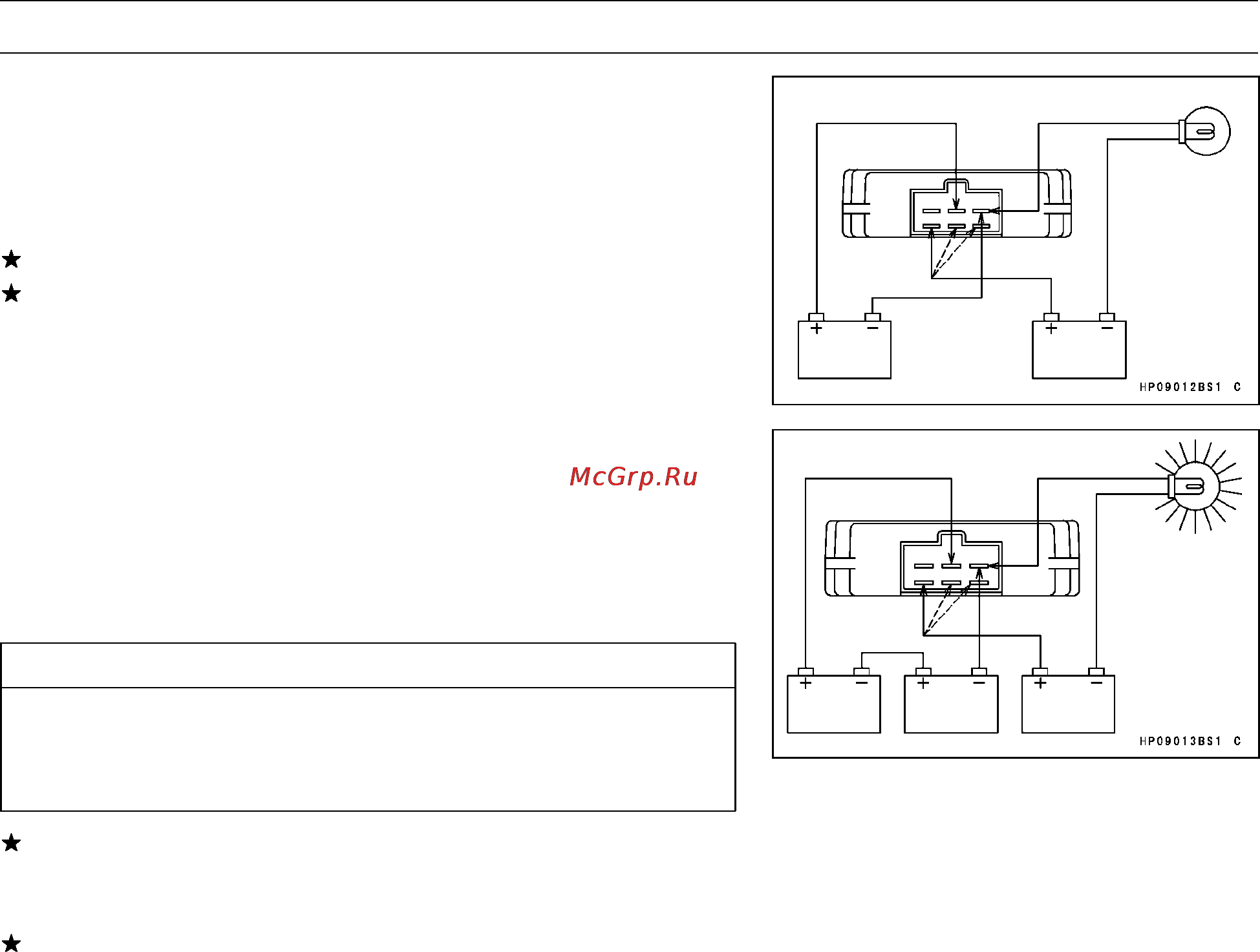

Connect the test light and a 12 V battery in the same man-
ner as specified in the "Regulator Circuit Test-1st Step".
•
Apply 12 V to the BR (voltage monitoring) terminal.
•
Check Y1, Y2, and Y3 terminals.
If the test light turns on, the regulator/rectifier is defective.
If the test light does not turn on, continue the test.
Regulator Circuit Test-3rd Step:
•
Connect the test light and a 12 V battery in the same man-
ner as specified in the "Regulator Circuit Test-1st Step".
•
Momentarily apply 24 V to the BR (voltage monitoring)
terminal by adding a 12 V battery.
•
Check Y1, Y2, and Y3 terminals.
CAUTION
Do not apply more than 24 V to the regulator/recti-
fier and do not leave the 24 V applied for more than
a few seconds, or the unit will be damaged.
If the test light did not light when the 24 V was applied
momentarily to the BR (voltage monitoring) terminal, the
regulator/rectifier is defective.
If the regulator/rectifier passes all of the tests described,
it may still be defective. If the charging system still does
not work properly after checking all of the components
and the battery, test the regulator/rectifier by replacing it
with a known good unit.
