3-6 FUEL SYSTEM
Throttle Lever and Cable
Throttle Lever Free Play Inspection
•
Refer to the Throttle Lever Free Play Inspection in the
Periodic Maintenance chapter.
Throttle Lever Free Play Adjustment
•
Refer to the Throttle Lever Free Play Adjustment in the
Periodic Maintenance chapter.

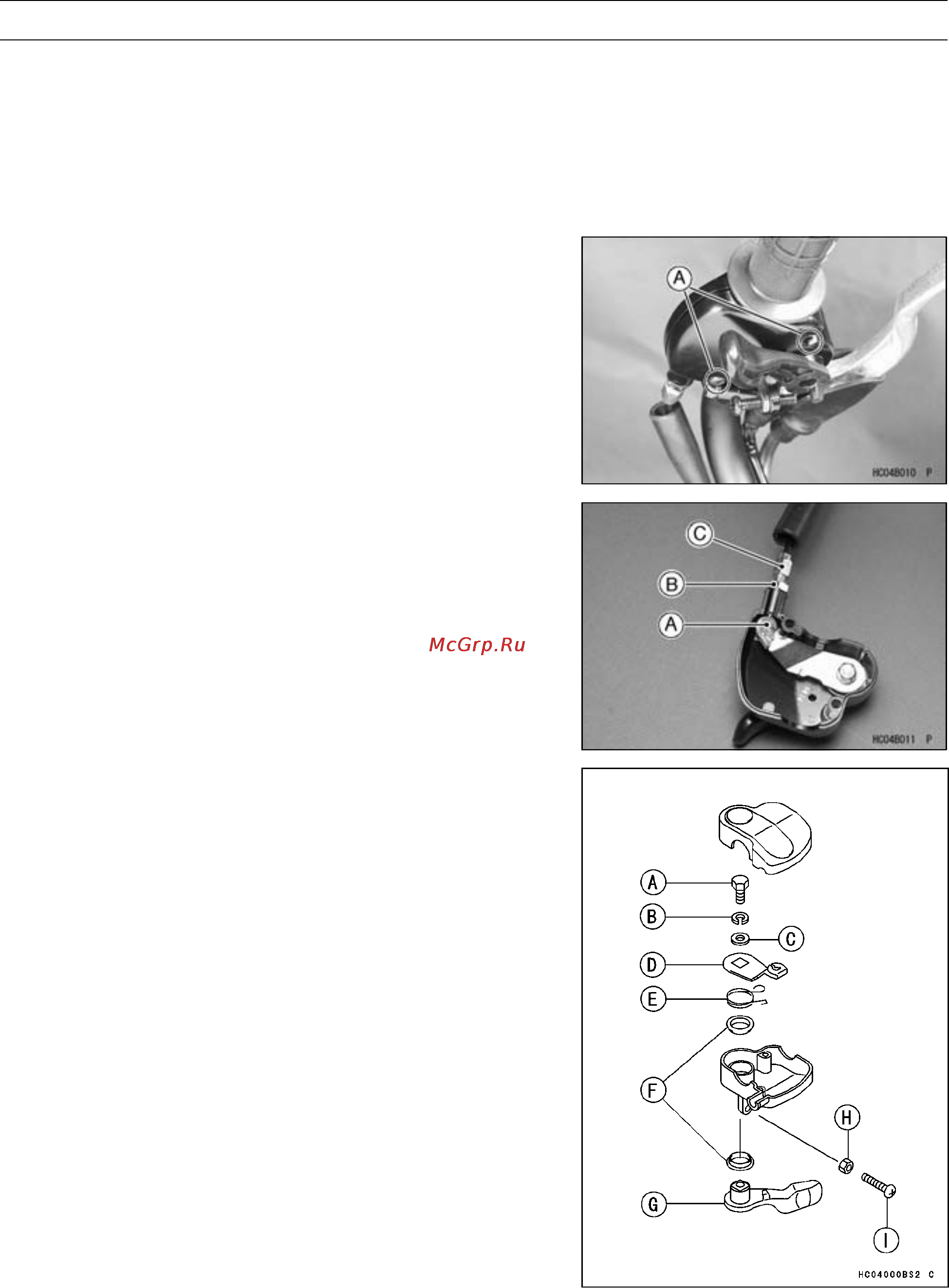

Throttle Case Removal/Disassembly
•
Remove the throttle case screws [A] and separate the
case halves.
•
Pull the cable tip [A] out of the throttle lever catch with the
throttle lever opened.
•
Loosen the locknut [B] and unscrew the adjuster [C].
•
Remove:
Throttle Lever Bolt [A], Spring Washer [B], and Washer
[C]
Arm [D] and Spring [E]
Collars [F]
Throttle Lever [G]
•
Loosen the locknut [H] and unscrew the therottle limiter
screw [I].
