ELECTRICAL SYSTEM 16-39
Electric Starter System
•

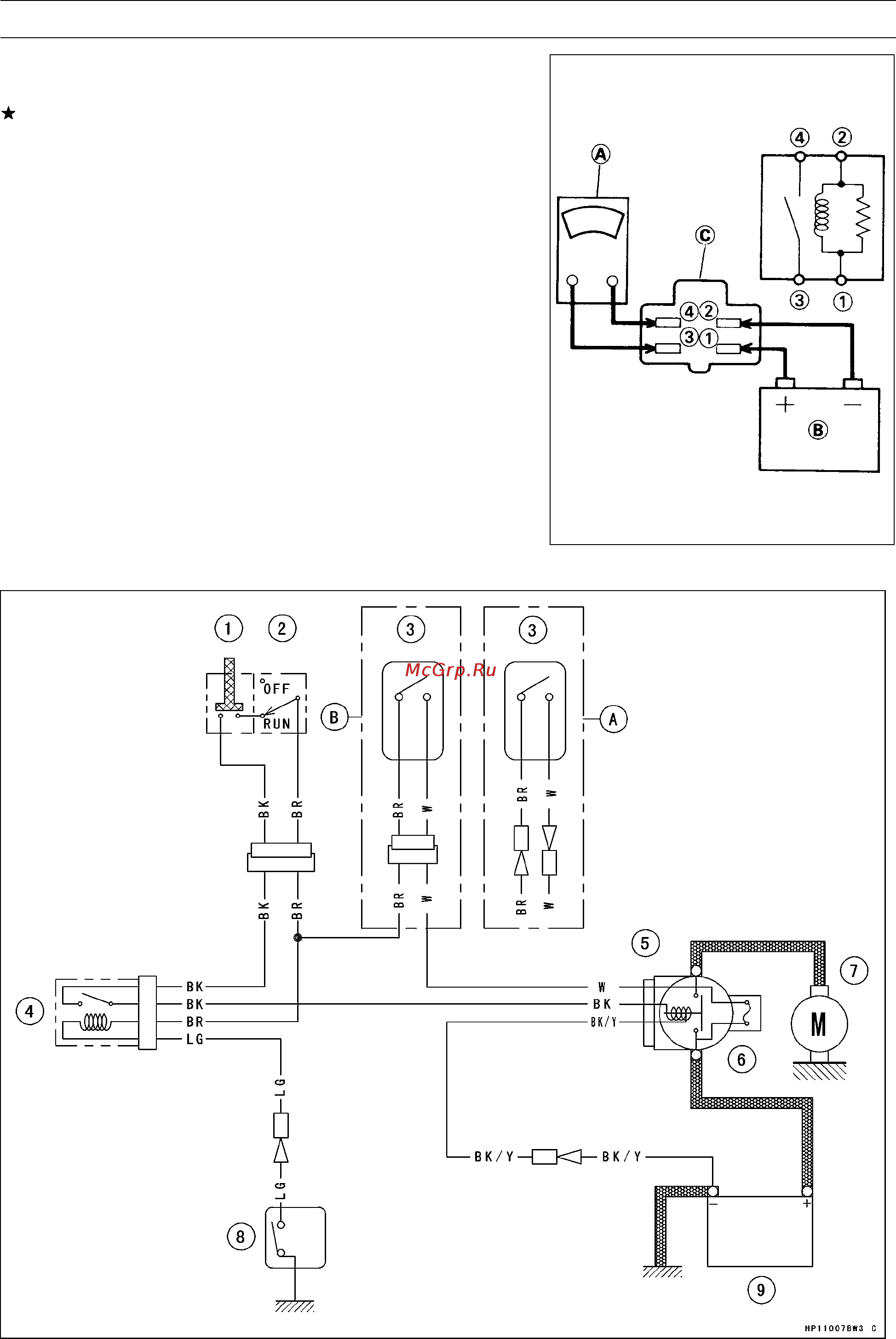

Connect the hand tester [A] and 12 V battery [B] to the
starter circuit relay [C] as shown.
If the relay does not work as specified, the relay is defec-
tive. Replace the relay.
Testing Relay
Hand Tester Range: x 1 Ω
Crite-
ria:
When battery is connected ⇒ 0 Ω
When battery is disconnected ⇒ ∞Ω
Relay Coil Terminals [1] and [2]
Relay Switch Termin als [3] and [4]
Electric Starter Circuit
A: KLF250-A1
B: KLF250-A2 ∼
