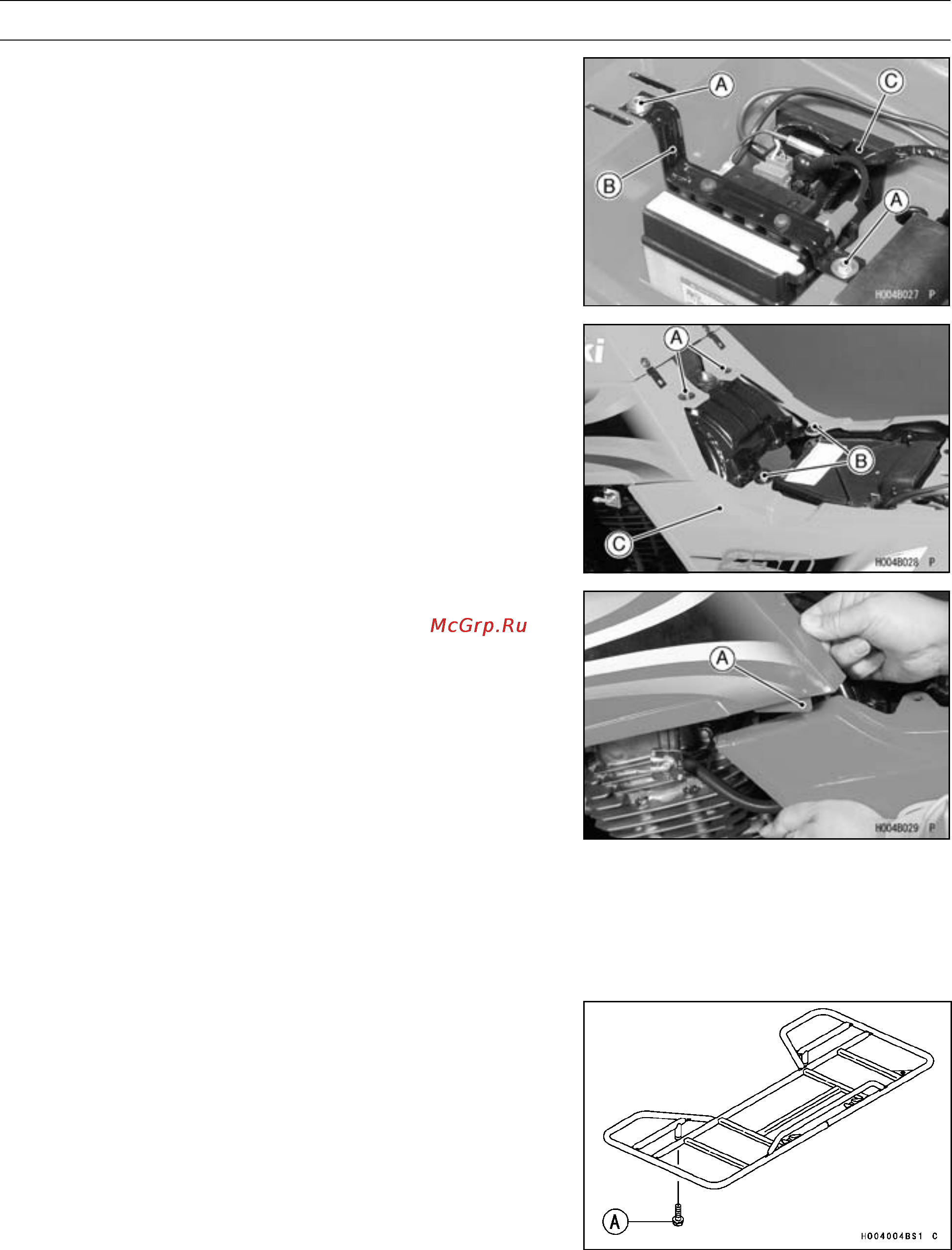

15-10 FRAME
Front and Rear Fenders
•
Remove:
Bolts [A] and Battery Holder [B]
Battery (see Electrical System chapter)
Electrical Equipment Plate [C]
•
Remove:
Front Fender Bolts [A]
Rear Fender Bolts [B]
Dampers
Rear Fender [C]
Rear Fender Installation
•
Fit the tabs [A] of the front fender in the slot.
•
Install:
Battery
Electrical Equipment Plate
•
Connect:
Taillight Lead Connectors
•
Tighten:
Torque - Rear Carrier Bolts [A]: 20 N·m (2.0 kg f·m, 14 ft·lb)
