D-Link DWS-4026 [118/741] Persistent log

ManagingandViewingLogs

D-Link UnifiedWiredandWirelessAccessSystem

November2011 Page118

D‐LinkUWSUserManual

PersistentLog

UsethePersistentLogpagetoviewthepersistentlogmessages.

ToaccessthePersistentLogpage,clickLAN>Monitoring>Log>PersistentLoginthenavigationtreemenu.

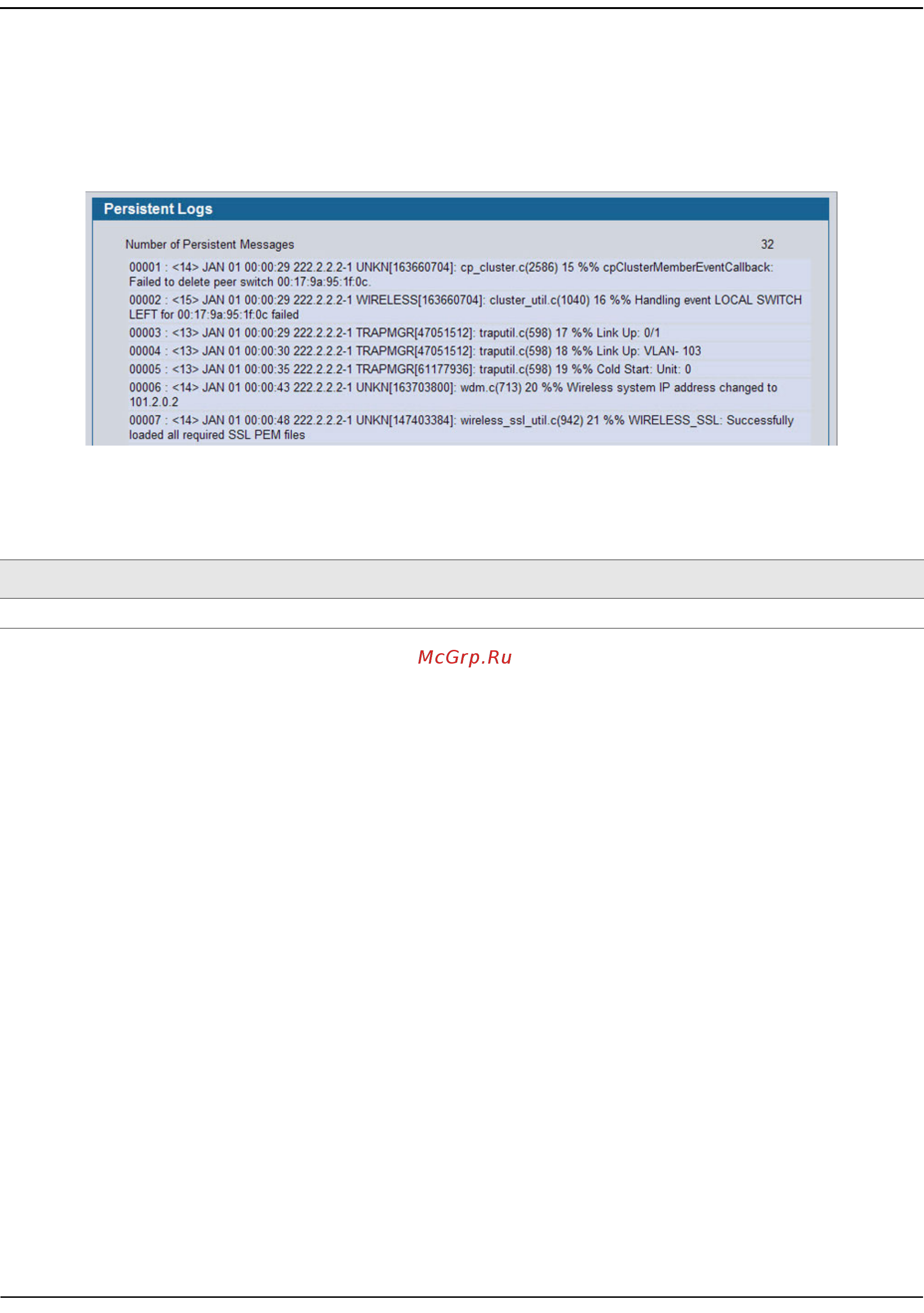

Figure50:PersistentLog

Therestofthepagedisplaysthelogmessages.Thefollowingexampleshowsalogmessage:

<15>Aug2405:34:05STK0MSTP[2110]:mspt_api.c(318)237%%Interface12transitionedtorootstate

onmessageagetimerexpiry

Thislogmessagehasaseveritylevelof7(15mod8),whichisadebugmessage.Thesystemisnotstacked

(STK0).ThemessagewasgeneratedbytheMSTPcomponentrunninginthreadID2110.Themessagewas

generatedonAugust2405:34:05byline318offilemstp_api.c.Thisisthe23

messagelogged.

•ClickRefreshtorefreshthepagewiththelatestlogentries.

Table40:PersistentLogFields

Field Description

TotalNumberofMessages Showsthenumberofpersistentmessagesthesystemhaslogged.
