ClassConfiguration

UsetheClassConfigurationpagetoaddanewDiffservclassname,ortorenameordeleteanexistingclass.

ThepagealsoallowsyoutodefinethecriteriatoassociatewithaDiffServclass.Aspacketsarereceived,these

DiffServclassesareuse dtoprioritizepackets.Youcanhavemultiplema

tchcriteriainaclass.Thelogicisa

BooleanlogicalANDforthis criteria.

Todisplaythepage,clickLAN>QoS>DifferentiatedServices>ClassConfigurationinthenavigationmenu.

ThefieldsavailableontheClassConfigurationpagedependonwhetheryoucreateanewclassorconfigurea

cla

ssthathasalreadybeencreated.

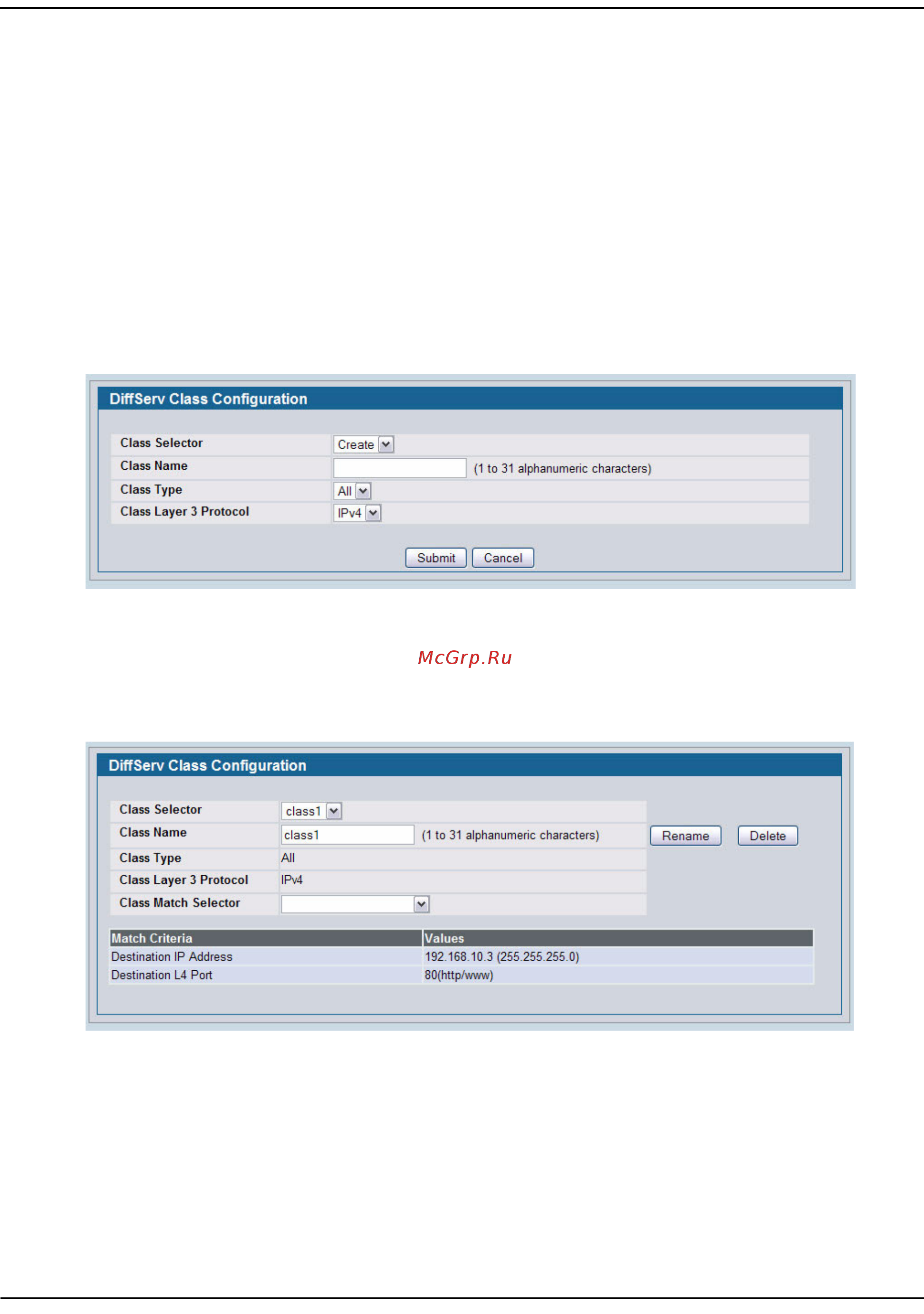

Figure226showstheClassConfigurationpagewhentheClassSelectoroptionisCreate.

Figure226:DiffservClassConfiguration

Figure227showstheClassConfigurationpagewhentheClassSelectoroptionshowsaconfiguredclass.The

classhastwoclassmatchselectorsconfigured.

Figure227:DiffservCla

ssConfiguration
