D-Link DWS-4026 [135/741] Server statistics

DHCPServerSummary

D-Link UnifiedWiredandWirelessAccessSystem

November2011 Page135

D‐LinkUWSUserManual

ServerStatistics

UsetheDHCPServerStatisticspagetoviewinformationabouttheDHCPserverbindingsandmessages.

ToaccesstheServerStatisticspage,clickLAN>Monitoring>DHCPServerSummary>ServerStatisticsinthe

navigationmenu.

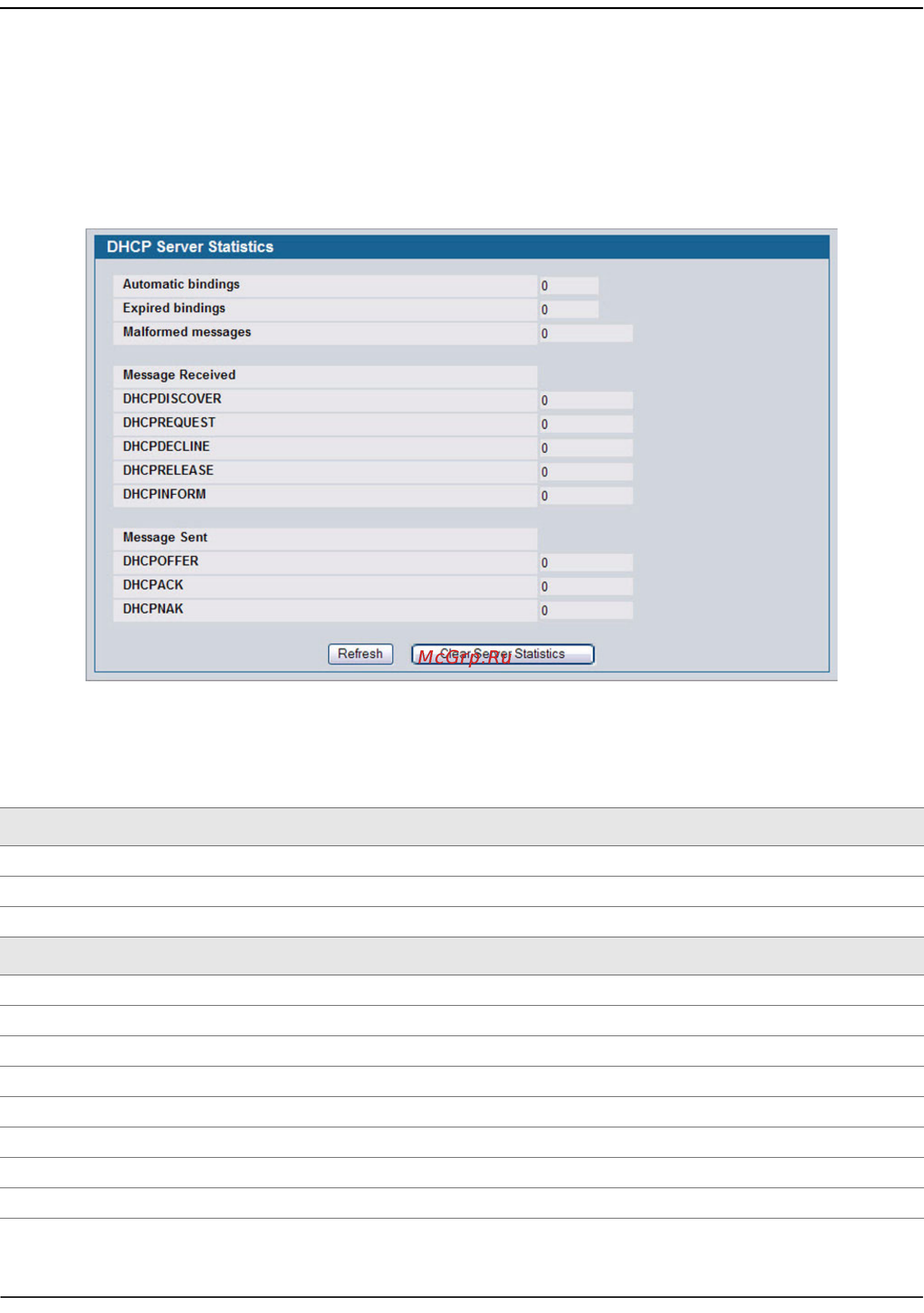

Figure62:ServerStatistics

Table52:ServerStatisticsFields

Field Description

AutomaticBindings ShowsthenumberofautomaticbindingsontheDHCPserver.

ExpiredBindings ShowsthenumberofexpiredbindingsontheDHCPserver.

MalformedMessages Showsthenumberofthemalformedmessages.

MessageReceived

DHCPDISCOVER ShowsthenumberofDHCPDISCOVERmessagesreceivedbytheDHCPserver.

DHCPREQUEST ShowsthenumberofDHCPREQUESTmessagesreceivedbytheDHCPserver.

DHCPDECLINE ShowsthenumberofDHCPDECLINEmessagesreceivedbytheDHCPserver.

DHCPRELEASE ShowsthenumberofDHCPRELEASEmessagesreceivedbytheDHCPserver.

DHCPINFORM ShowsthenumberofDHCPINFORMme

ssagesreceivedbytheDHCPserver.

DHCPOFFER ShowsthenumberofDHCPOFFERmessagessentbytheDHCPserver.

DHCPACK ShowsthenumberofDHCPACKmessagessentbytheDHCPserver.

DHCPNAK ShowsthenumberofDHCPNAKmessagessentbytheDHCPserver.
